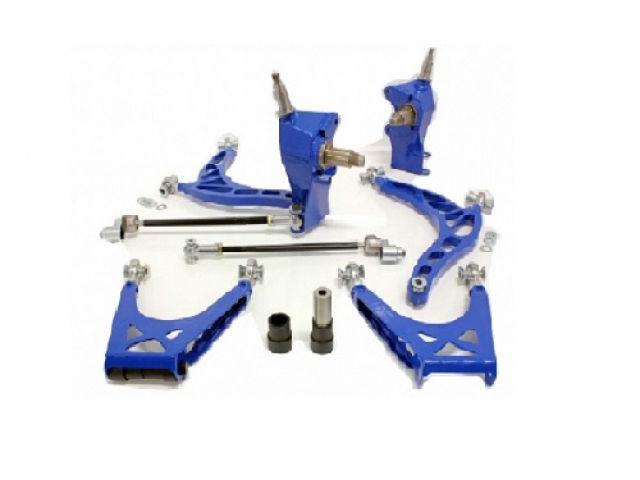

Wisefab Nissan R33 / R34 Lock Kit

65 degrees of lock, parallel steering. As an option, there is a possibility to buy Ackermann adjustment kit. You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.

Adjustable lock stopper.

All the metal components on Wisefab R33 front suspension are from high strenght steel, including sheetmetal components, tube ends and rod end housings.

Rod ends and spherical bearings are used, no rubber bushings.

Lower 2 piece arm is replaced with one piece design to increase system stiffness that is needed for high lock.

Top OEM arm is replaced with Wisefab one to have a better kinematics and to avoid rubbing issues at full lock.

Higher roll center (RC). Lowering the driftcar would have a great benefit to increase performance and handling, but this would mess up the original factory designed kinematics. It lowers the roll center and increases camber gain. On Wisefab knuckle, both joints are dropped, which brings the front RC up on lowered car, providing higher roll and better camber gain.

Very good camber control and minimal bump steer with high steering angles. On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.

Steering jacking control. During steering the car chassis is moving up and down - this is called jacking. Steering jacking is caused by combination of caster, KPI, trail and scrub. On road cars, this effect is used sometimes to balance the car or to help to turn in. During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry so that it doesn't cause any handling issues.
