Wilwood Kit,Caliper,DPC56,Rear,VetteE,97-13
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)

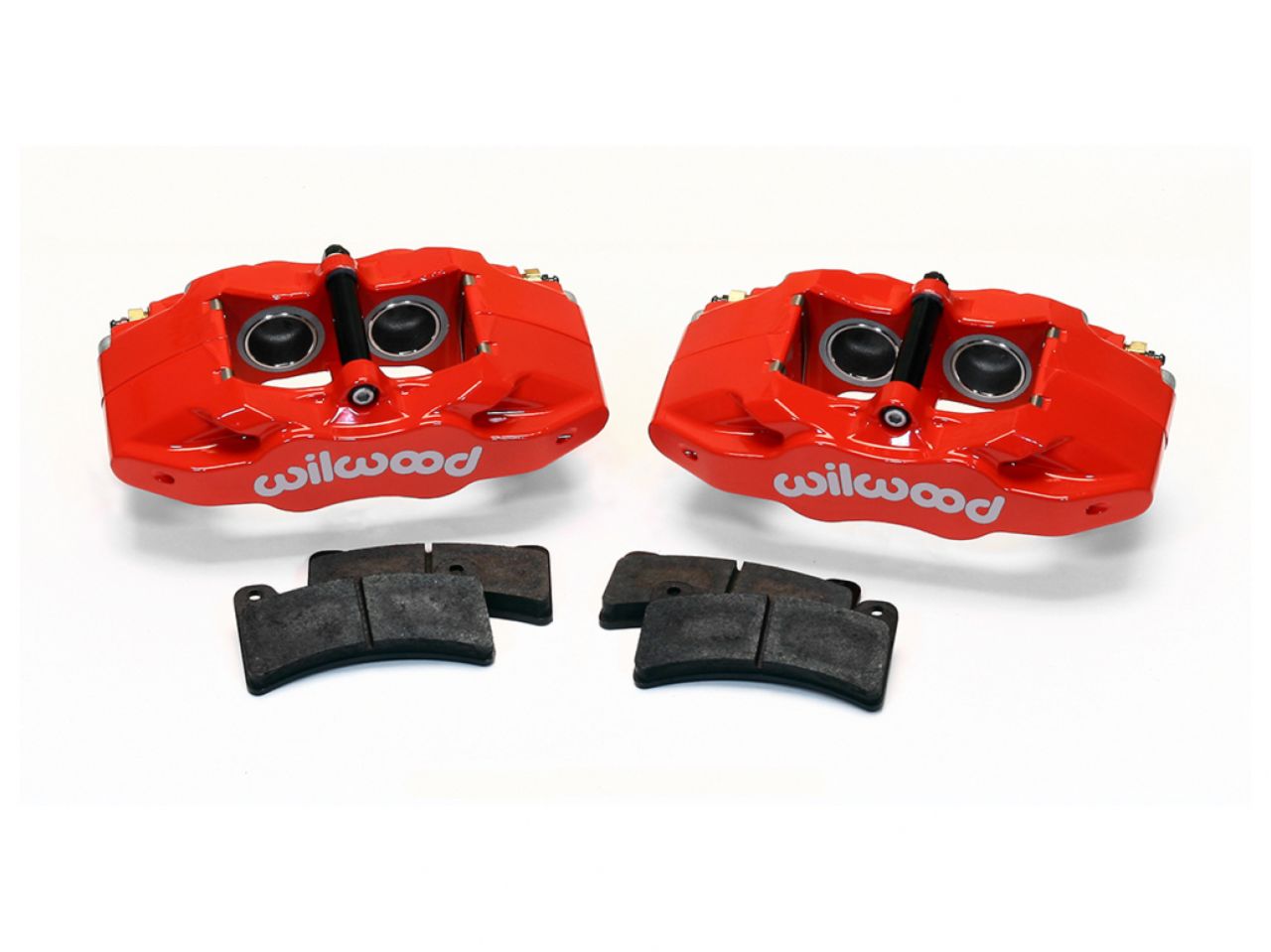

DPC56 Rear Replacement Caliper Kit
DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6s from 2005 to 2013 using the existing 12.00 diameter OE dimension rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Specifications
Rear End Axle: OEM
Axle Offset: 0
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Min Wheel Diameter Req'd*: 17
Calipers
Left Hand - Part No: 120-13916-RD
Right Hand - Part No: 120-13916-RD
Type: DPC56
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.25
Piston 2 Bore (in): 1.25
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
2013 | Chevrolet | Corvette | 427, LT |
2003 | Chevrolet | Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car |
1997 - 2013 | Chevrolet | Corvette | Base |
2010 - 2013 | Chevrolet | Corvette | Grand Sport |
1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
2001 - 2013 | Chevrolet | Corvette | Z06 |
2011 | Chevrolet | Corvette | Z06 Carbon |
2009 - 2013 | Chevrolet | Corvette | ZR1 |
