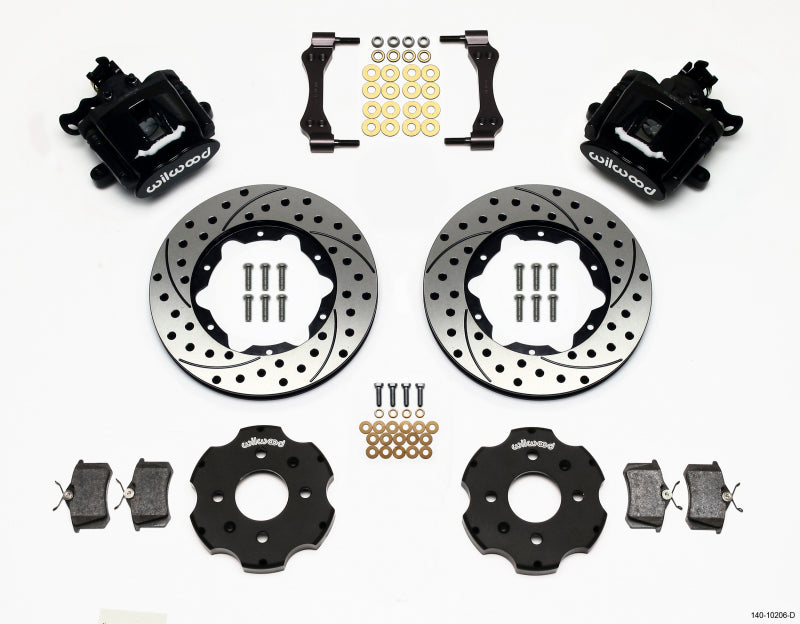

Wilwood CPB Rear Kit,11.00",Drilled Civic/Integra Disc 2.39 Hub Offset

Combination Parking Brake Caliper Rear Brake Kit

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Specifications

Rear End Axle: OEM

Axle Offset: 2.39

Mount Type: Radial

Caliper Type: 1 - Black Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-9809-BK

Right Hand - Part No: 120-9808-BK

Type: Combination Parking Brake

Finish Color: Black Powder Coat

Piston Count: 1

Piston 1 Bore (in): 1.34

Piston Area (In²): 1.38

Piston Type: Steel

Mount Type: Radial

Brake Pad Plate: D340

Brake Pad Area (In²): 4

Brake Pad Volume (In³): 1.5

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7100-BK

Right Hand - Part No: 160-7099-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11

Width (in): 0.81

Vane Count: 30 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Rotor Hats

Hat - Part No: 170-10199

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.75

Bolt Circle 1: 4 x 3.93

Stud Diameter - BC 1: 0.5

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
