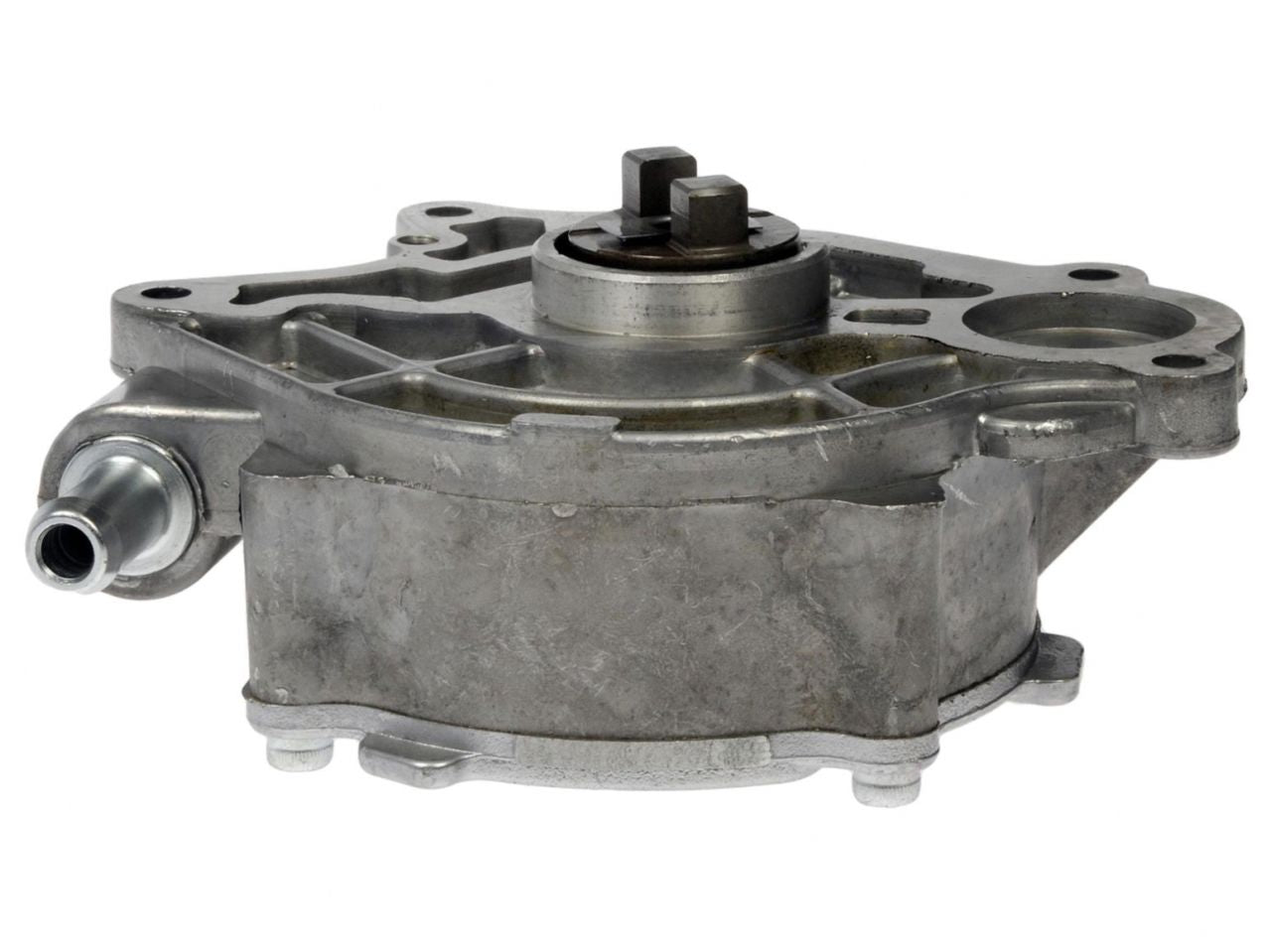

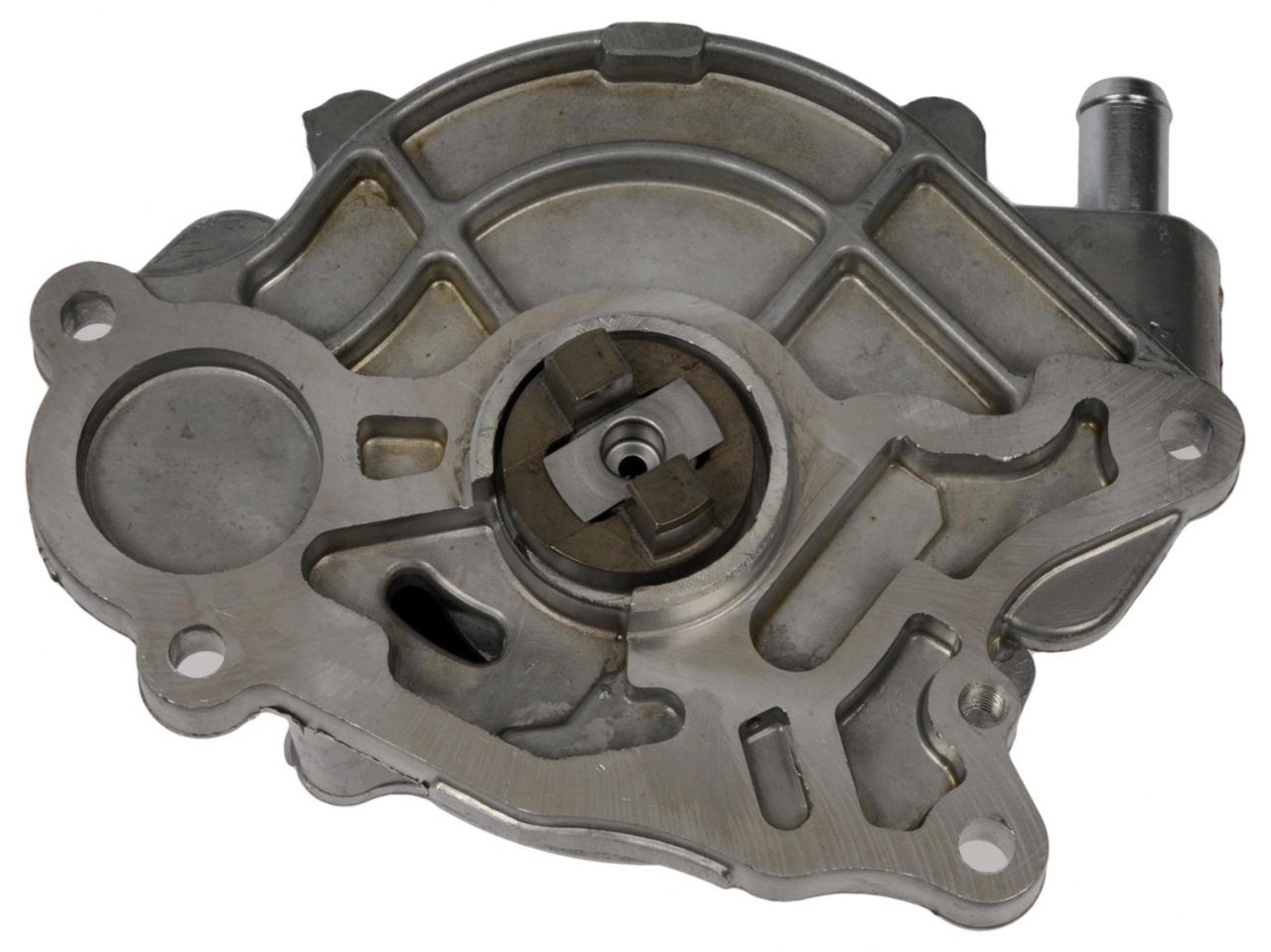

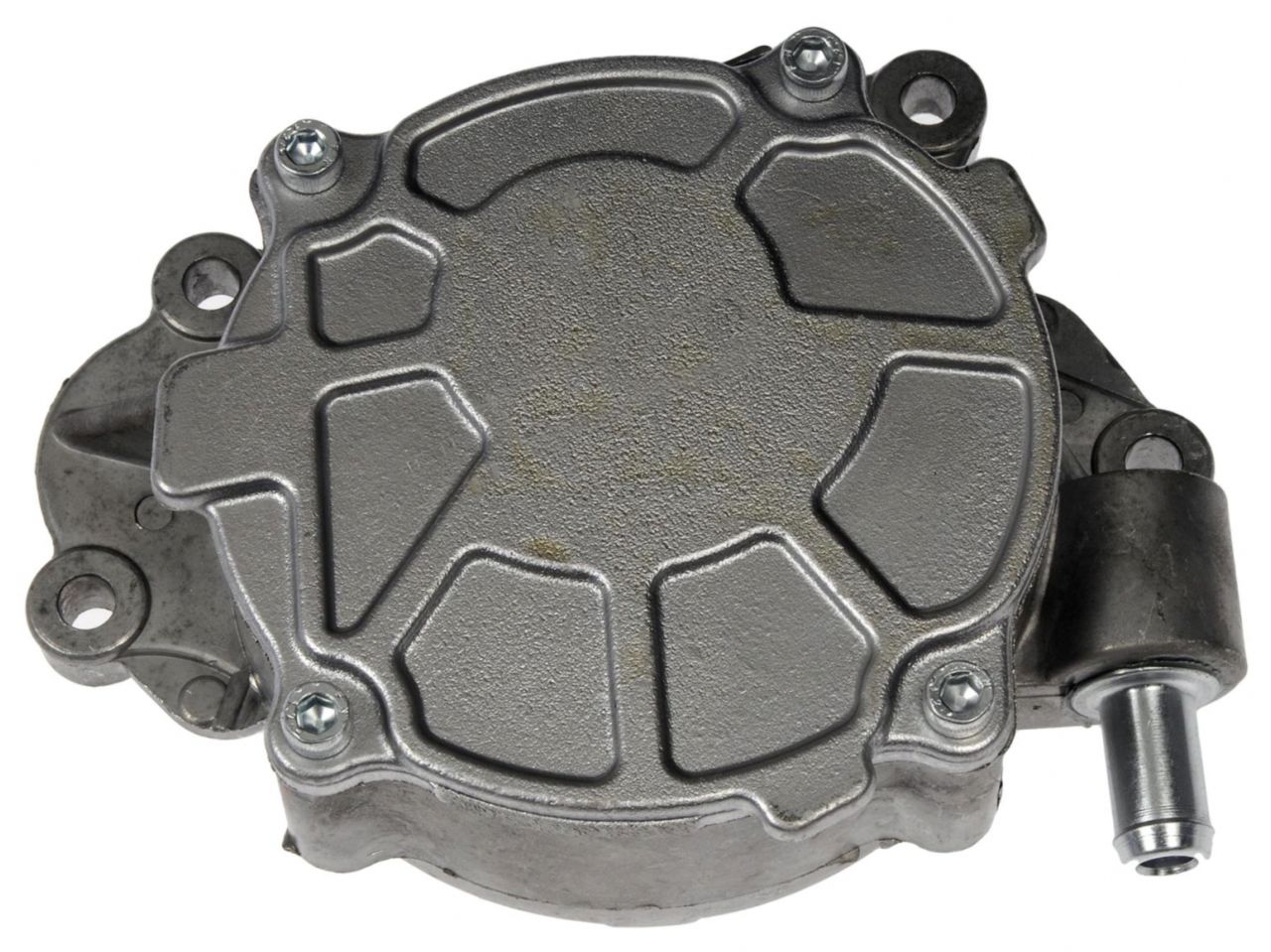

Dorman Mechanical Vacuum Pump

Mechanical Vacuum Pump

Application Summary: Volkswagen Beetle 2015-13, Volkswagen Jetta 2014-09, Volkswagen Passat 2015-12

Dorman's Vacuum Pumps are 100% new, not remanufactured. Since they are new, they do not contain any used components that could lead to premature failure. Most premature failures occur with the bearing. A bearing failure will prevent the pump from producing vacuum. Depending on the vehicle, this may result in a loss of vent or temperature control inside the cabin, impaired or partial loss of braking or 4WD.

• Direct replacement for ease of installation
• Vehicle try-on testing has been conducted on this part to ensure trouble-free performance
• Mechanical and electric vacuum pumps available
• No core return hassles

Product Specifications

Gasket or Seal Included: Yes

Housing Material: Aluminum

Inside Diameter: 0.260 In.

Mounting Hardware Included: No

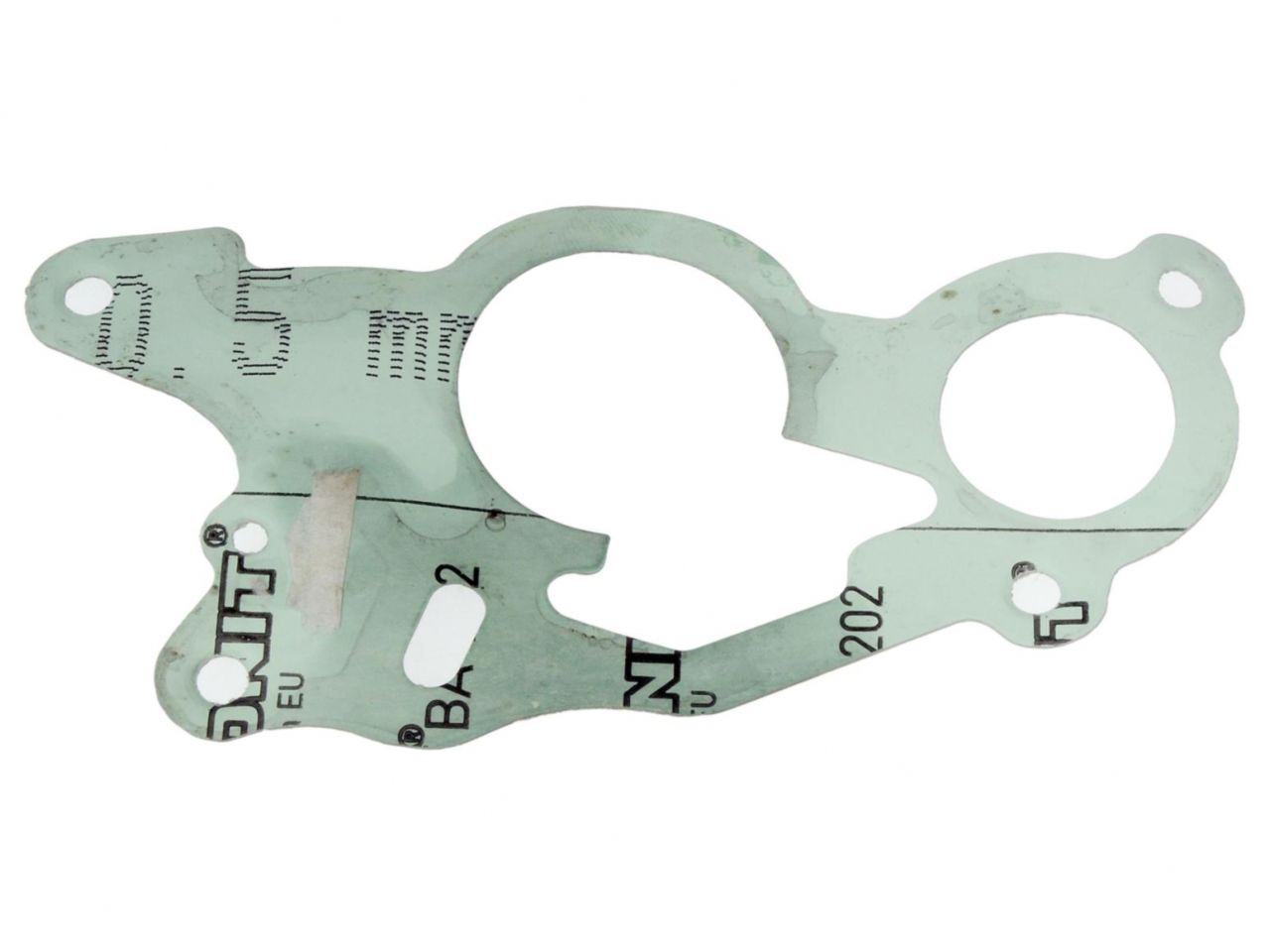

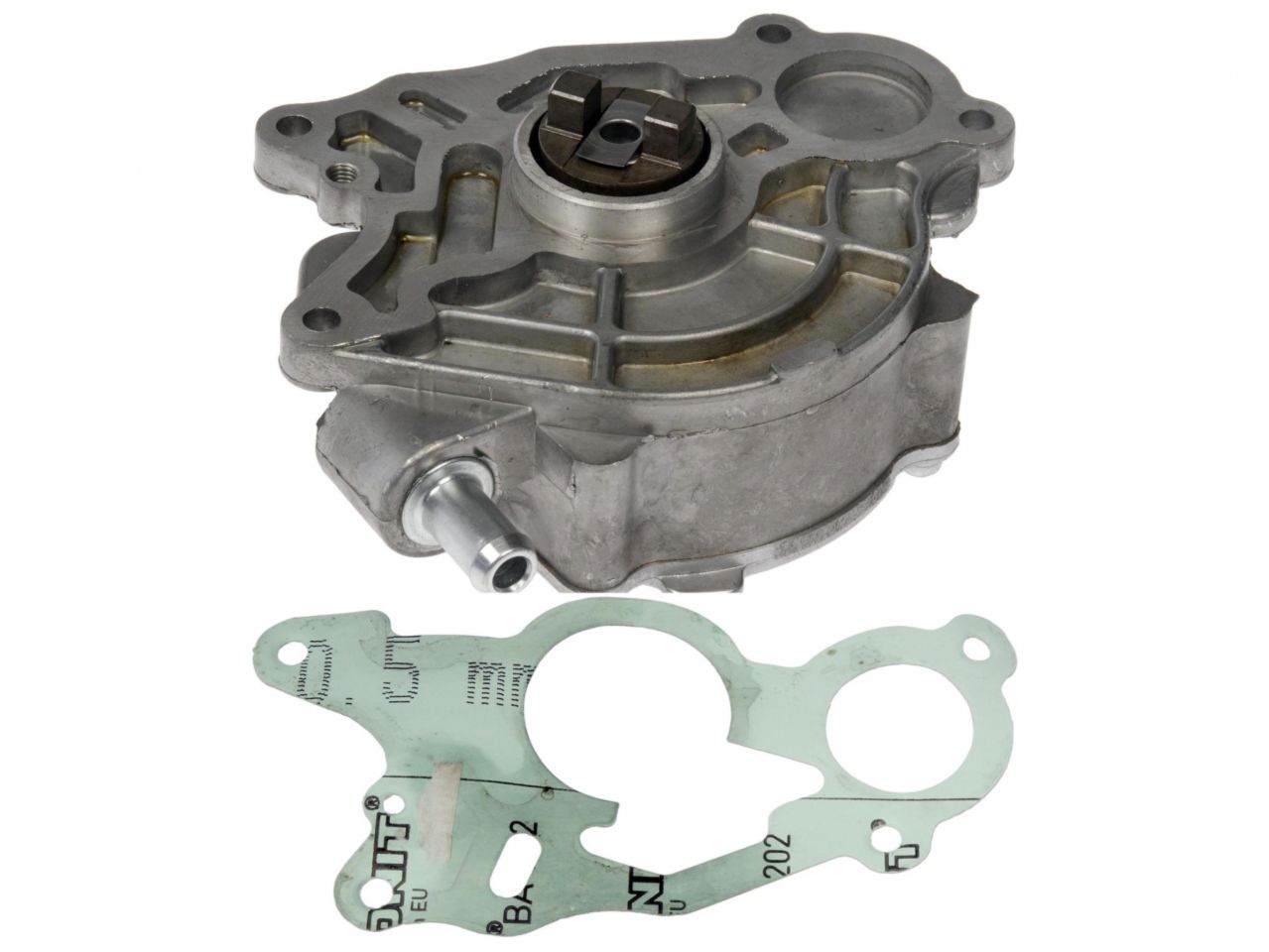

Package Contents: 1 Pump Assembly, 1 Gasket

Package Quantity: 1

Packaging Type: Box

Pulley Included: No

Vacuum Pump Connector: Barbed

Vacuum Pump Drive System: Gear Drive

Vacuum Pump Inlet: 0.260 In.

Vacuum Relief Valve: Yes
