Advance Adapters Speed Manual Transmission to Jeep Dana 300 Adapter Kit

Advance Adapter

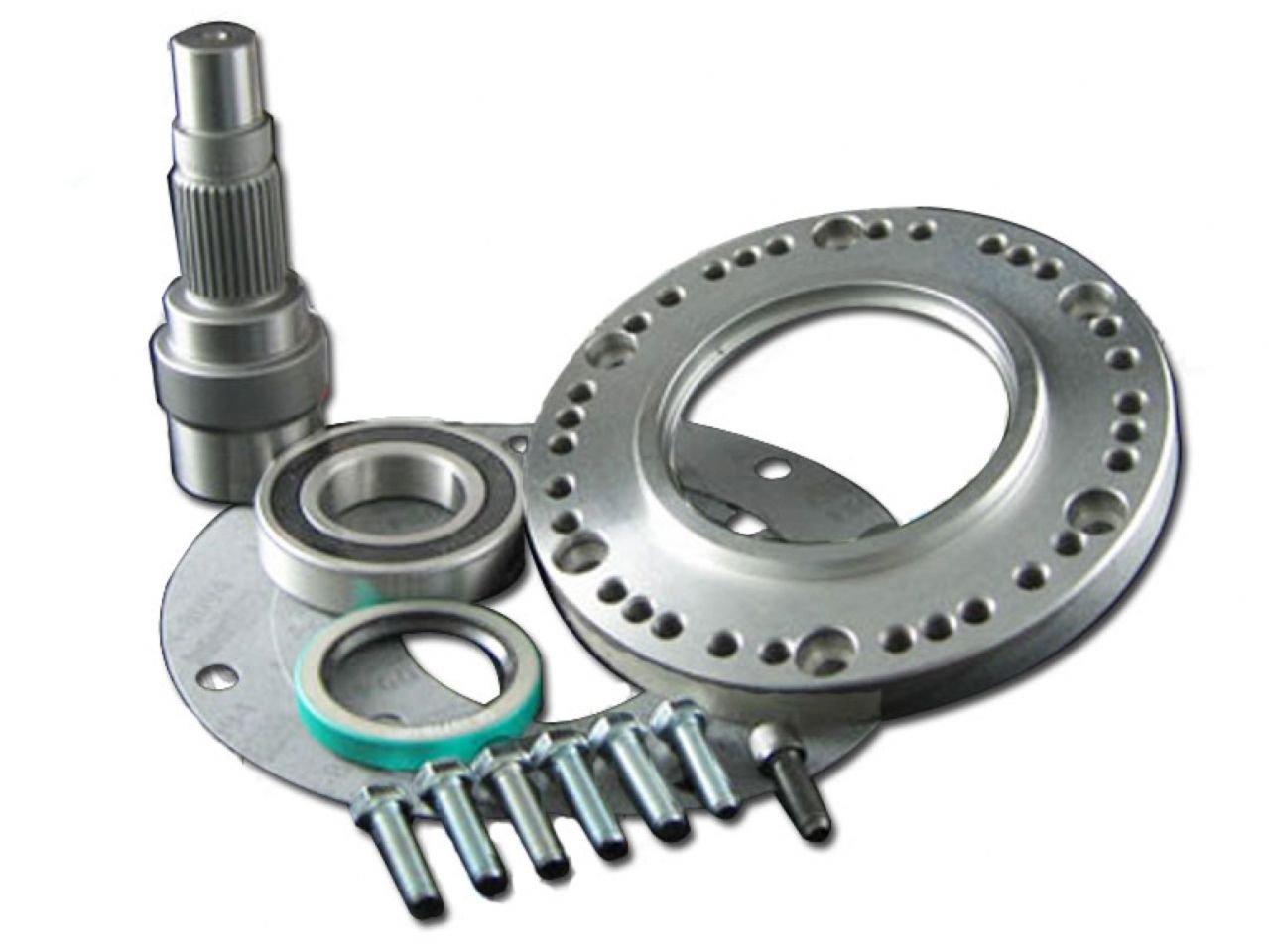

This adapter kit will allow you to adapt the Ford C6 automatic transmission to the Jeep Dana 300 transfer case. The adapter kit includes a .750"? rotation ring, new 31 spline Dana 300 input shaft, bearing, gasket, seal, fastening hardware and adapter instructions.

Note: This kit will also work on a factory 4wd AOD/AODE/4R70W transmissions

Transfer Case

The adapter assembly fits the1980-86 Jeep Dana 300. The Dana 300 features a 2.67:1 low range and a centered rear output shaft. This unit is gear driven, has a circular six front bolt pattern with a 23 spline female input shaft and a cast-iron case.

Transmission

This adapter assembly is designed for exclusive use with the Ford C6 automatic transmission 4wd. The 4wd output shaft must stickout .710" beyond the transmission case. The C6 is a 3 speed, heavy duty automatic with a case length of 20"?, a non-removable bell housing and an oil pan that is held on with 17 bolts.
