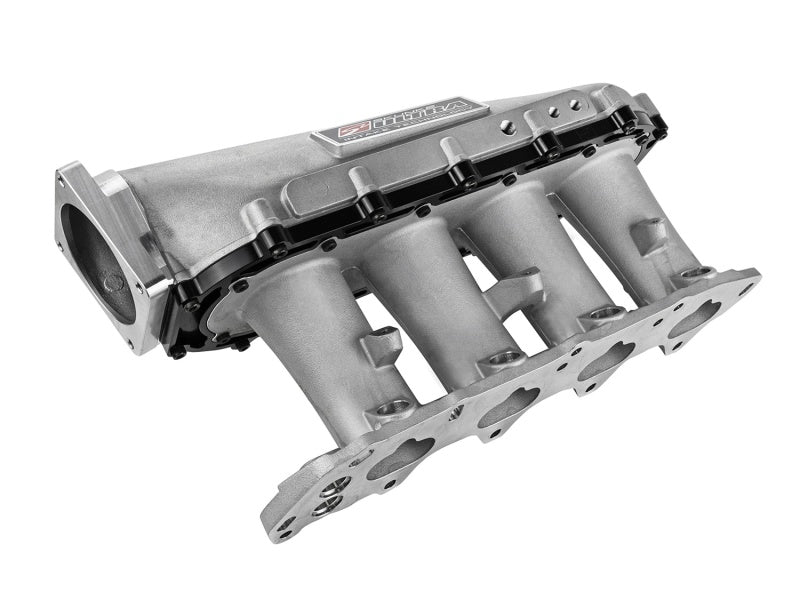

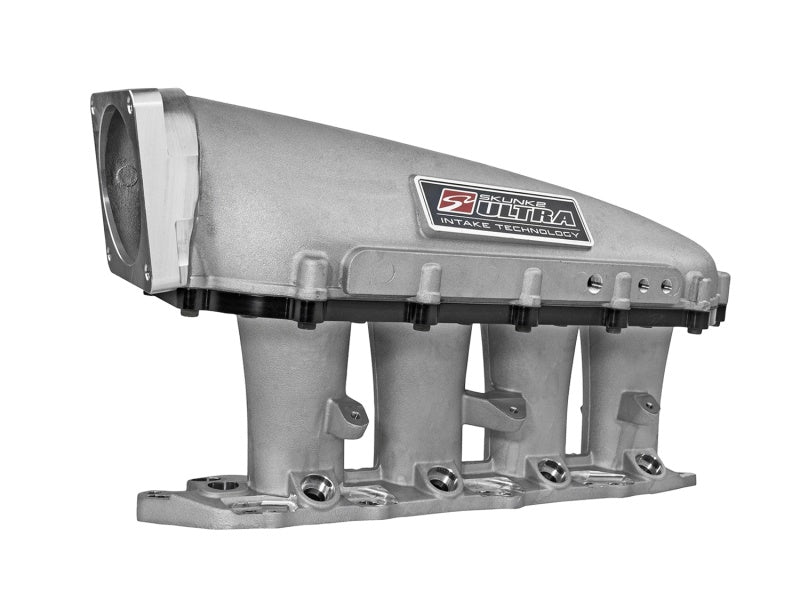

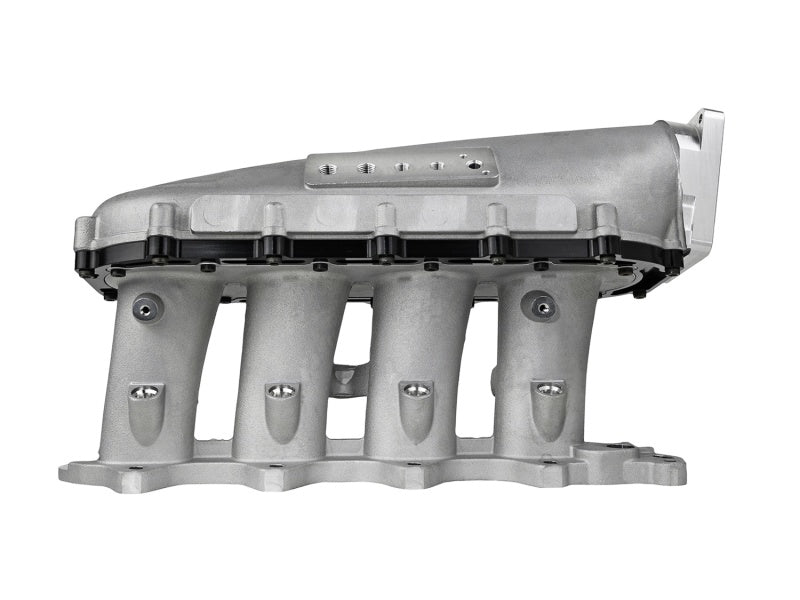

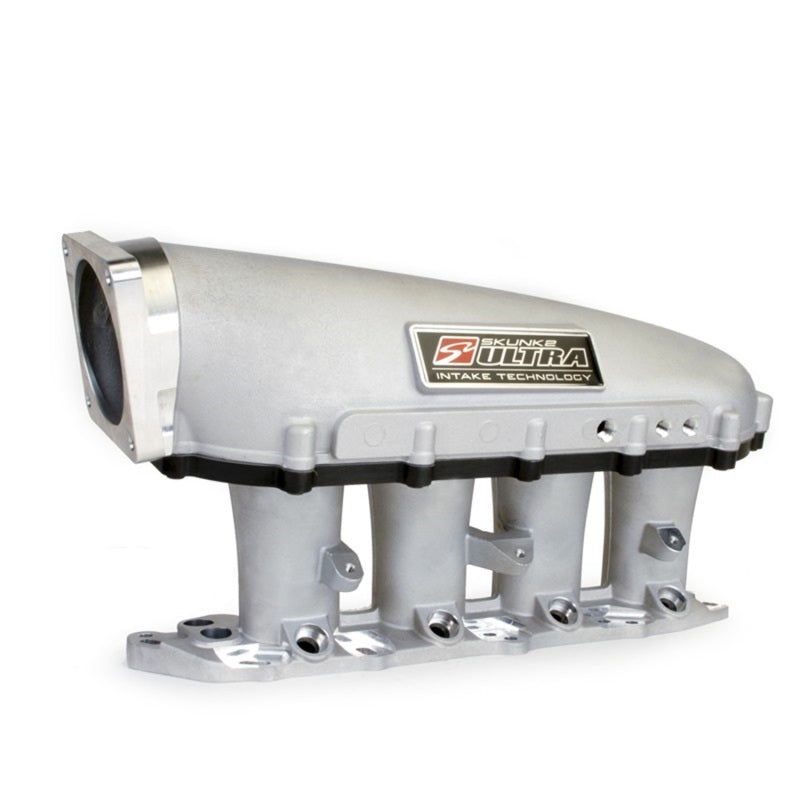

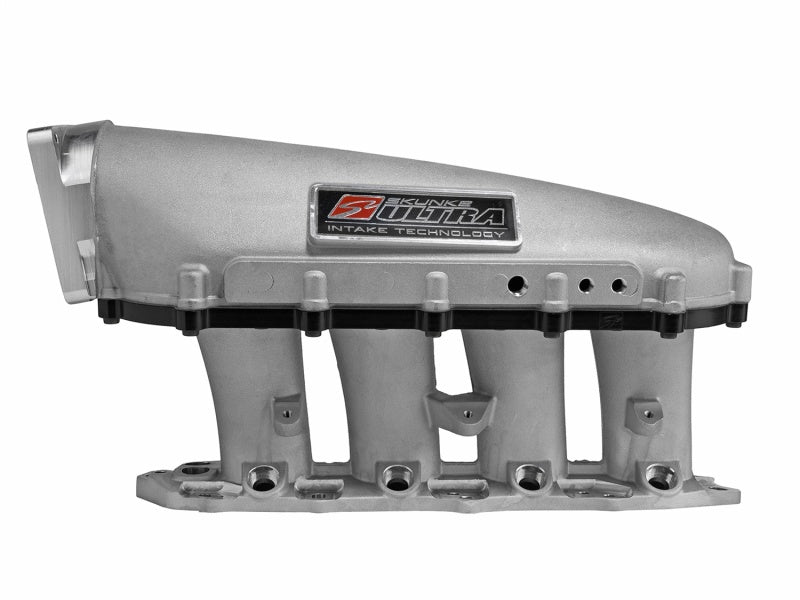

Skunk2 Black Ultra Series Race Intake Manifold B-Series VTEC 3.5L
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!
The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
FEATURES:
Modular 3pc. Design w/ Removable Plenum
3.5L Plenum Volume**
90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.5" Tilted & Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors

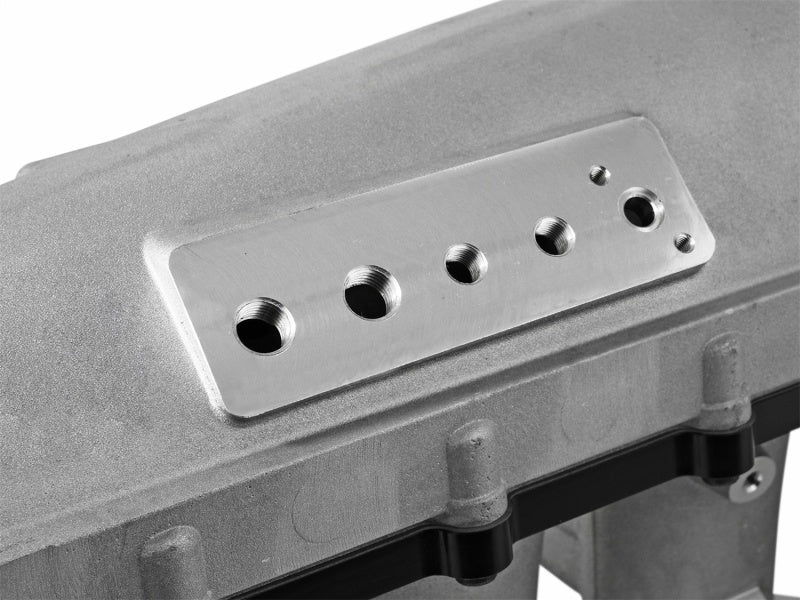

4 x 1/8" NPT, 2 x 1/4" NPT and 1 x OEM AIT Port
Hi-Grade Mounting Hardware

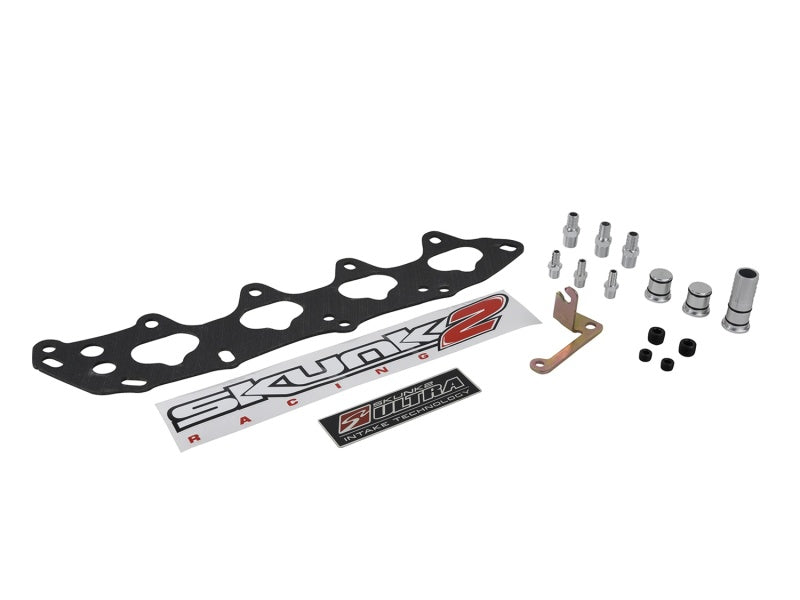

Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D673977
- 1992 - 2001 Acura Integra (GS-R, Type R)
- 1999 - 2000 Honda Civic (Si)
- 1994 - 1995 Honda Civic del Sol (VTEC)
RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
4.5 Liter > 600-1000HP
5.5 Liter > 1,000HP Up
US Patent: D673977
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1992 - 2001 | Acura | Integra | LS, GS, GS-R |
1992 - 1998 | Acura | Integra | RS |
1995 - 1996 | Acura | Integra | Special Edition |
1997 - 2001 | Acura | Integra | Type R |
1999 - 2000 | Honda | Civic | EX-R SIR, HX, Si, GX, LX, CX, EX-R, EX, DX |
1999 | Honda | Civic | Value Package |
1994 - 1995 | Honda | Civic del Sol | Si, S, VTEC |
