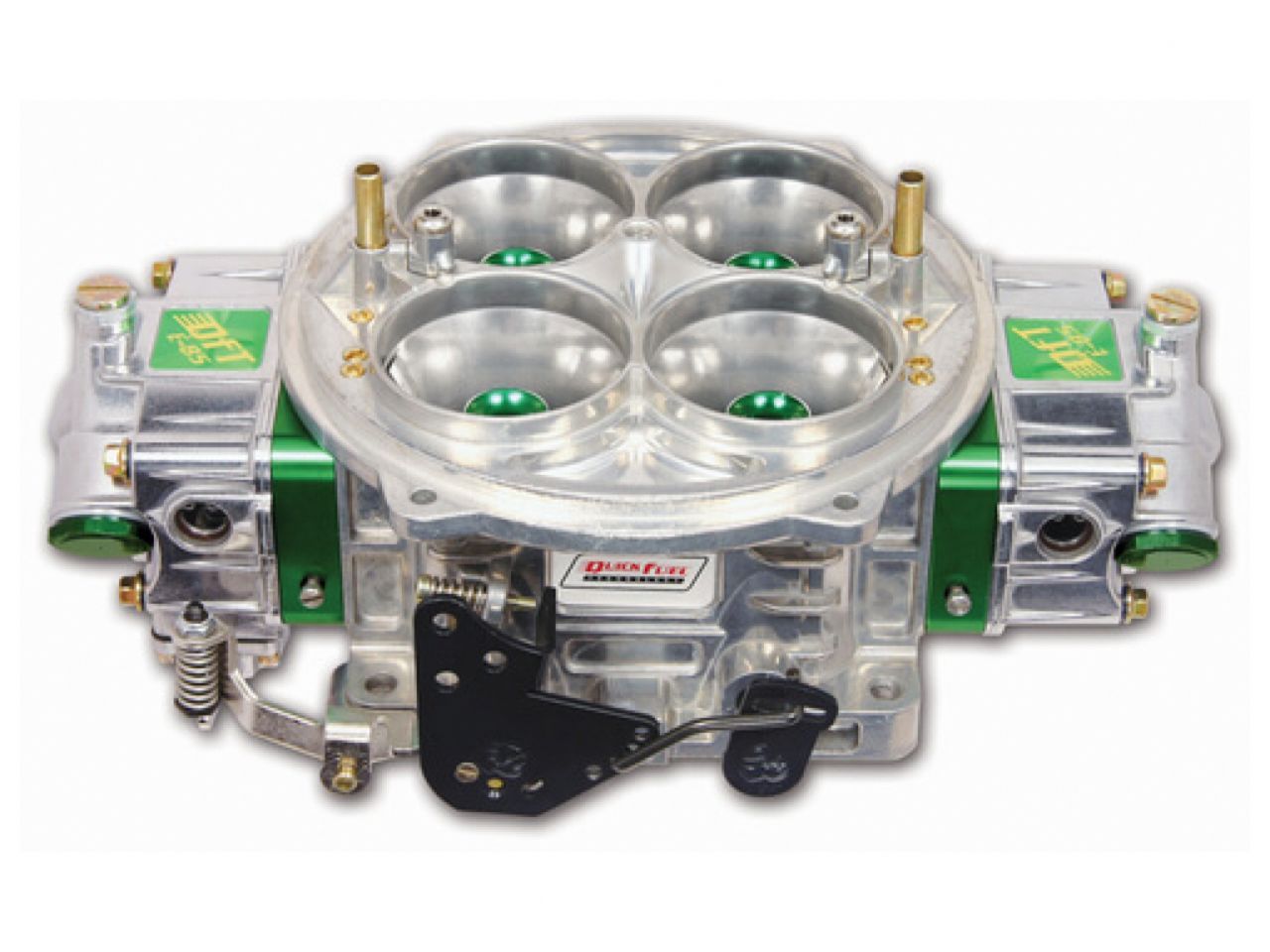

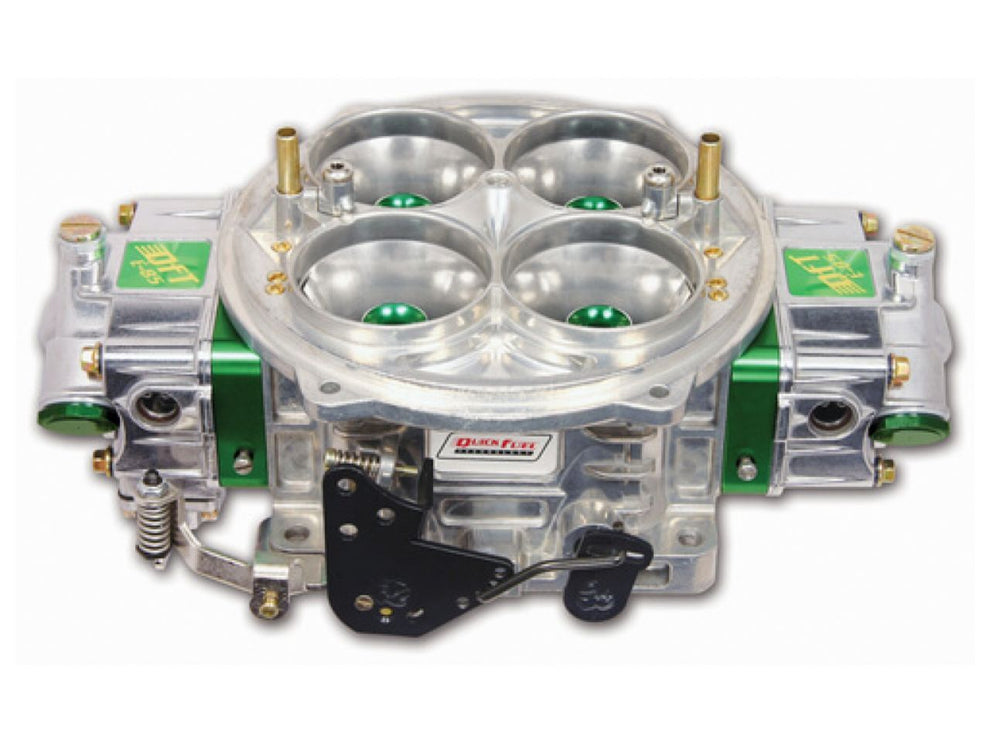

Quick Fuel QFX Series Carb
Serious drag racing demand a serious drag racing carburetor, and the QFX-Series stands as the flagship model in QFT's lineup. Raised air horns improve entry angle into the venturi while ensuring undisrupted flow over the air bleeds. Annular boosters with CNC-machined billet aluminum inserts provide increased air flow, a stronger signal, and less turbulence. QFX carbs offer unparalleled fuel atomization with annular boosters specific for either gas, methanol, or E85 fuels. Five-emulsion billet metering blocks and four-corner idle circuits offer flexible tunability that today's high-horsepower engines demand. To cover a broad range of applications, methanol- and E85-compatible models, as well as two- and three-circuit fuel systems, are available. Ready to run out of the box, the QFX-Series carburetor will help you get to the winner's circle.
Specifications
Barrels: 4
Billet Color: Green
Booster: Annular
Brand: Quick Fuel
CFM: 1050
Choke: None
Circuit: 3
Emission Code: 3
Finish: Shiny
Fuel: E85
Fuel System: Carbureted
High Speed Air Bleed: 28
Idle Air Bleed Size: 39
Intermediate Air Bleed Size: 63
Material: Aluminum
Model: FX Series
Primary Main Jet: 92
Primary Power Valve: N/A
Primary Pump Nozzle Size: 47
Product Type: Carburetor
Secondaries: Mechanical
Secondary Main Jet: 92
Supercharged Application: No
Throttle Bore: 2.000 inch
Features:
- QFX aluminum main body w/raised venturi
- Billet aluminum metering blocks with screw in restrictions
- Aluminum fuel bowls with dual sight windows and fuel inlets
- Nitrophyl® Floats (notched rear) and jet extensions
- Viton .130" Needles and Seats
- Billet Aluminum annular booster inserts
- QuickLink™ adjustable secondary opening adjustment
- Hand assembled and engine tested
