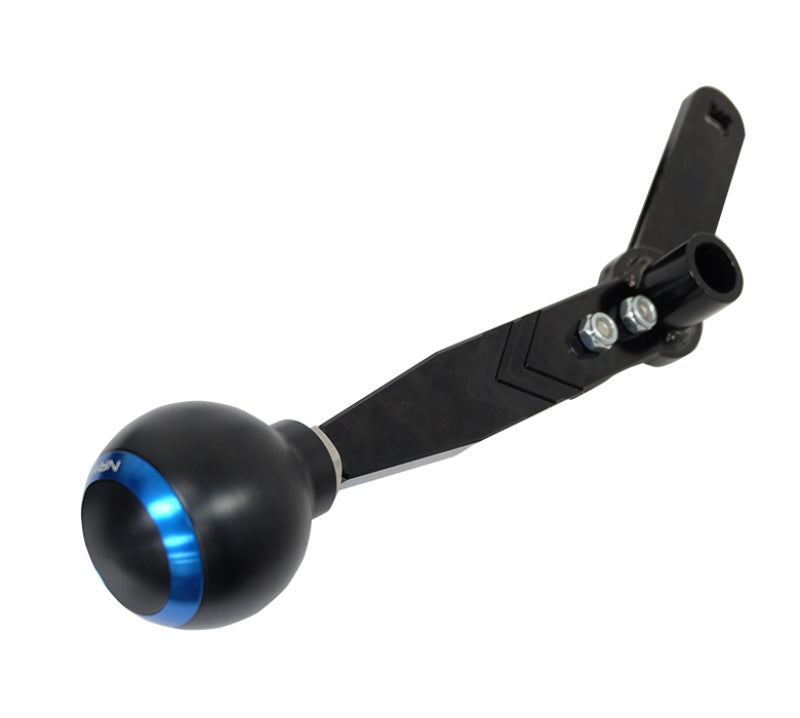

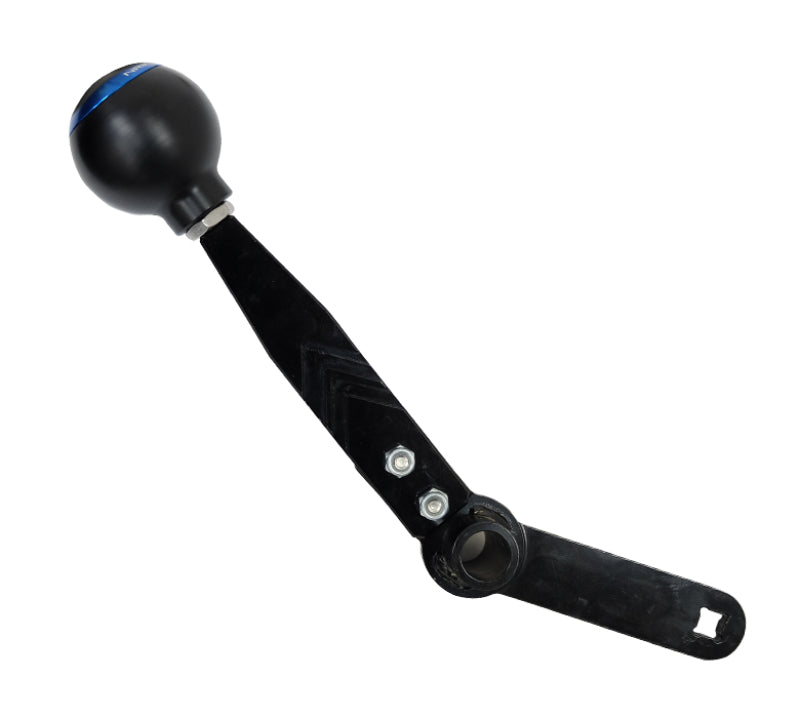

NRG Billet Aluminum Shift Knob Fits Rzr 570 and Higher

Installation Tools Needed:
5mm allen key or socket
Small flat head screw driver
17mm wrench

Step1:
Remove 5mm screw from stock knob ( will not need it). It's located on the front side of the knob towards the bottom.

Step 2:
Pull straight up the OEM shift knob once the 5mm screw is removed and the OEM shift knob adapter will be exposed. Grab the rubber boot and pull it up and off ( will need the boot for later)

Step 3:
Remove OEM silver adapter by removing the 5mm screw. Push the level to the right to get more room. Save the 5mm screw later for the new NRG adapter.

Step 4:
Slide on NRG adapter and use the 5mm screw to tighten it until it sits deep enough.

Step 5:
The plastic grey spacer will need to be removed. Turn the boot up side down and you will find four lock tabs. Use the flat screw driver to separate the tabs and it will come off in two pieces.

Step 6:
Slide the rubber boot over the adapter and pull the top of the boot into the groove of the adapter since you have previously removed the plastic spacer. Attach any Honda thread pitch shift knobs.
