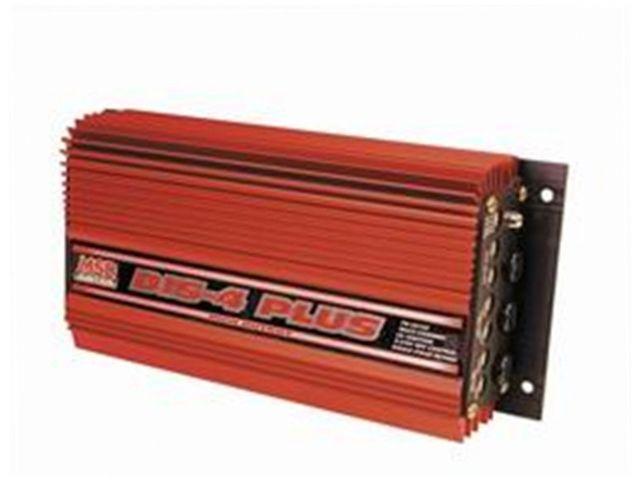

MSD DIS-4 Plus High Output

High output distributorless ignition. 2, 3 or 4-coil pack.

For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.


Features:

  • Two adjustable Rev Limits
  • Diagnostic LED
  • Adjustable retard stage
  • Ignition Interrupt Circuit

SPECIFICATIONS:

Current Draw:10 Amps at 10,000 RPM

Emission Code: 3

Primary Voltage: 470 Volts

RPM Range: 14,000 RPM with 14.4 Volts

Secondary Voltage: 43,000 Volts

Spark Energy: 170 mJ/spark

Spark Series Duration: 20 degree Crankshaft Rotation

Voltage Required: 10-18 Volts, Negative Ground

Weight and Size: 3 lbs.,9.5"L x 4.5"W x 2.2"H
