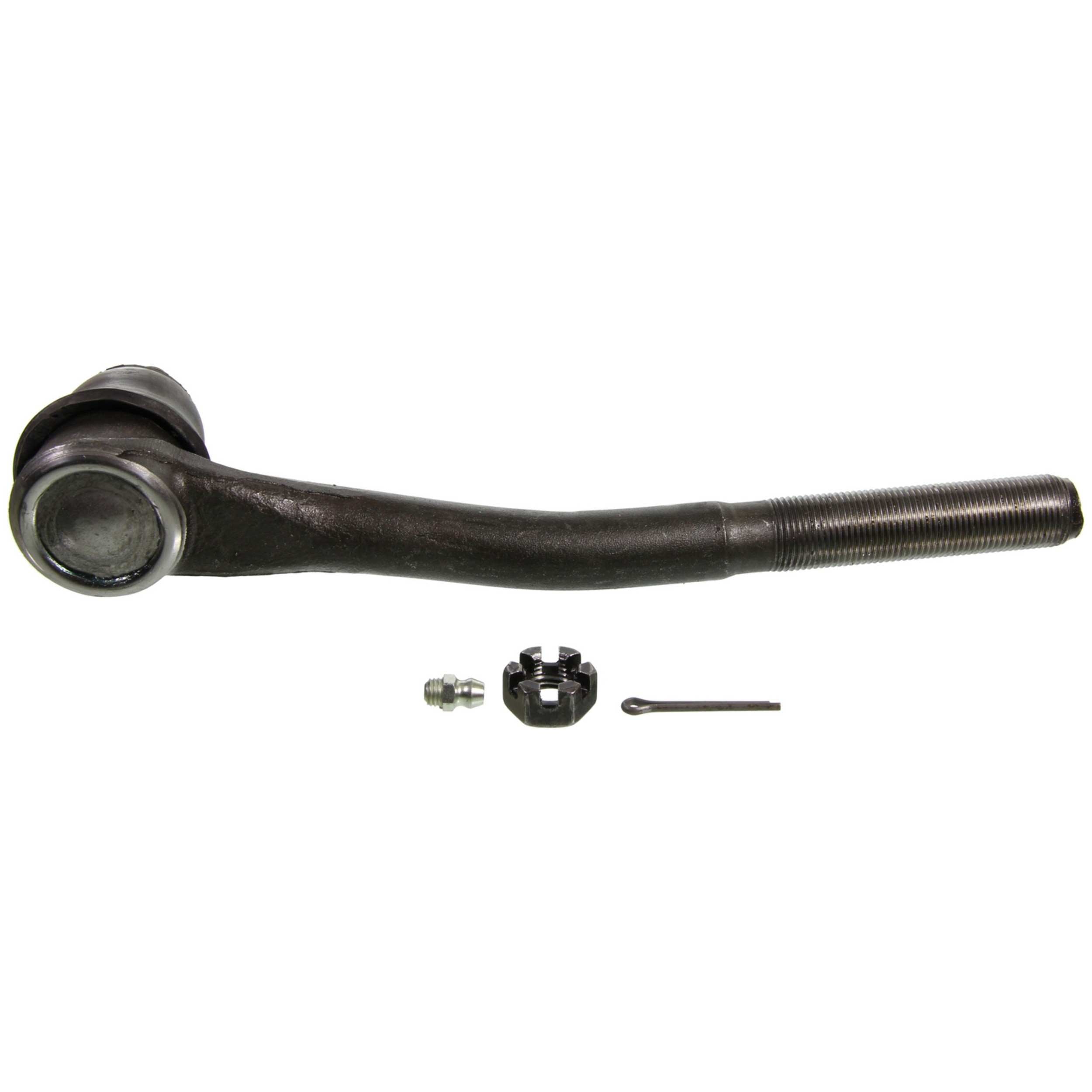

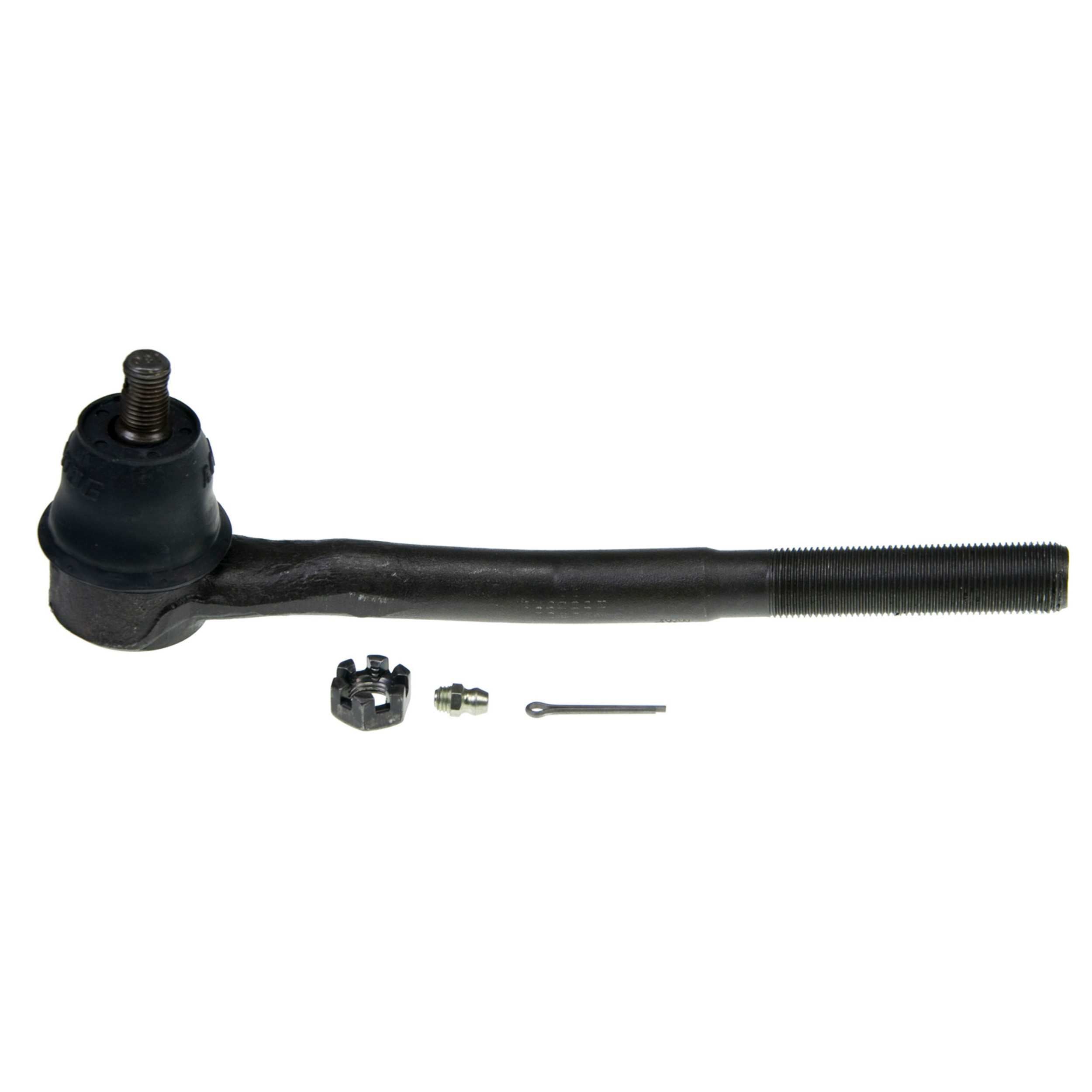

Moog Tie Rod End, Greasable, Inner, Buick, Cadillac, Chevy

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly,reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide  smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strenght

Specifications

Tie Rods

Greasable                                                     Yes

Stud Center to End (in)                                  9.57

Rod Thread                                                  11/16-18 LH

Configuration                                                Bent

Rod Type                                                      Male

Stud Diameter Dimension(top in)                   0.515

Stud Diameter Dimension(bottom in)             0.622

Stud Thread                                               7/16 20T
