HPS 100% Stainless Steel T-Bolt Hose Clamps, 304 or 316 Marine Grade Stainless Steel 1.25" - 1.46" (32mm-37mm) / 304 Stainless Steel

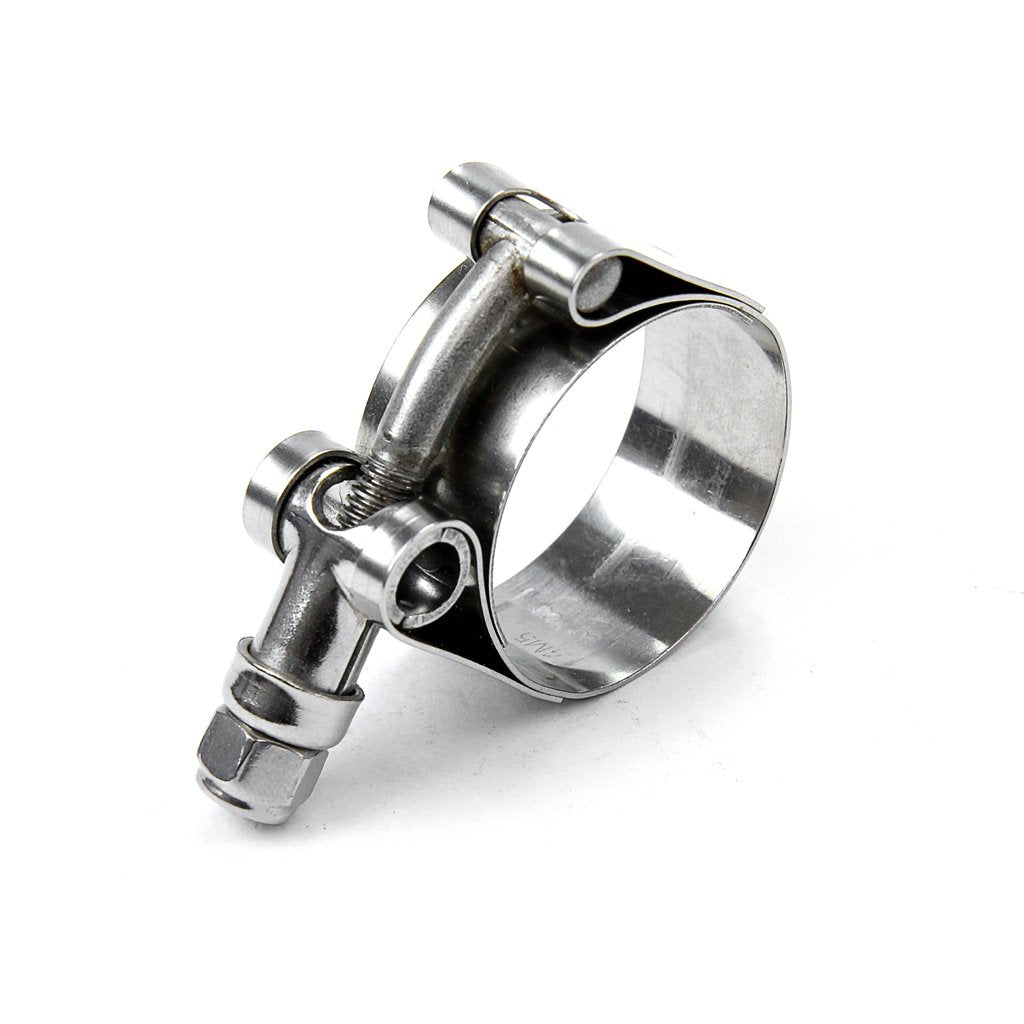

HPS Stainless Steel T Bolt Clamps
Race-Proven, engineered for high boost and high pressure, underhood applications, HPS 100% Stainless Steel T Bolt Clamps are suitable for forced-induction application such as turbo, supercharger or DIY custom air intake or intercooler piping project. Since T bolt clamps have a wide variety of sizes, strengths, designs, and materials, they afford full coverage for diverse clamping applications in the aircraft, automotive, truck and heavy-duty vehicle, industrial, hardware/plumbing, and marine industries.
Stainless Steel T-Bolt Clamp Technical Specification
- 100% Stainless Steel Band, Bolt and Nut (Available in 304 and 316 Marine Grade Stainless Steel)
- High strength with superior welded construction.

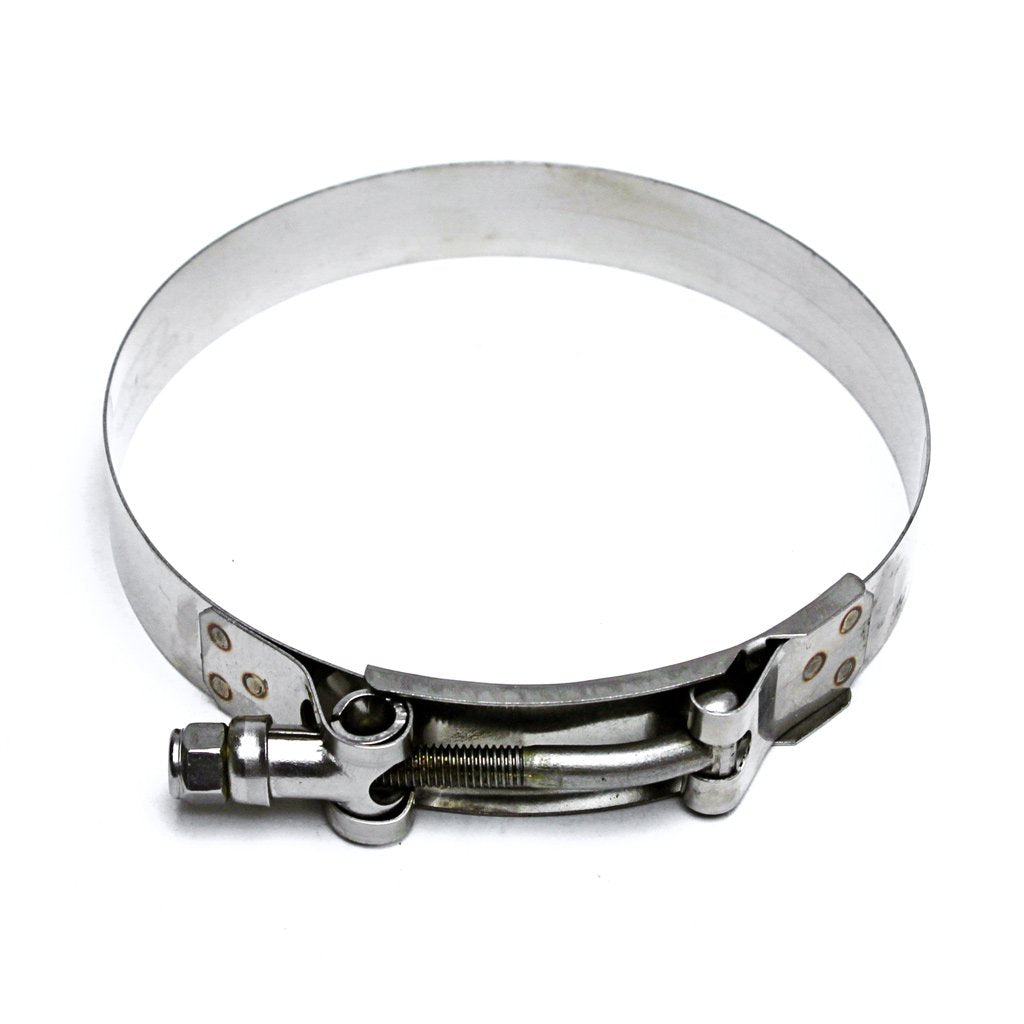

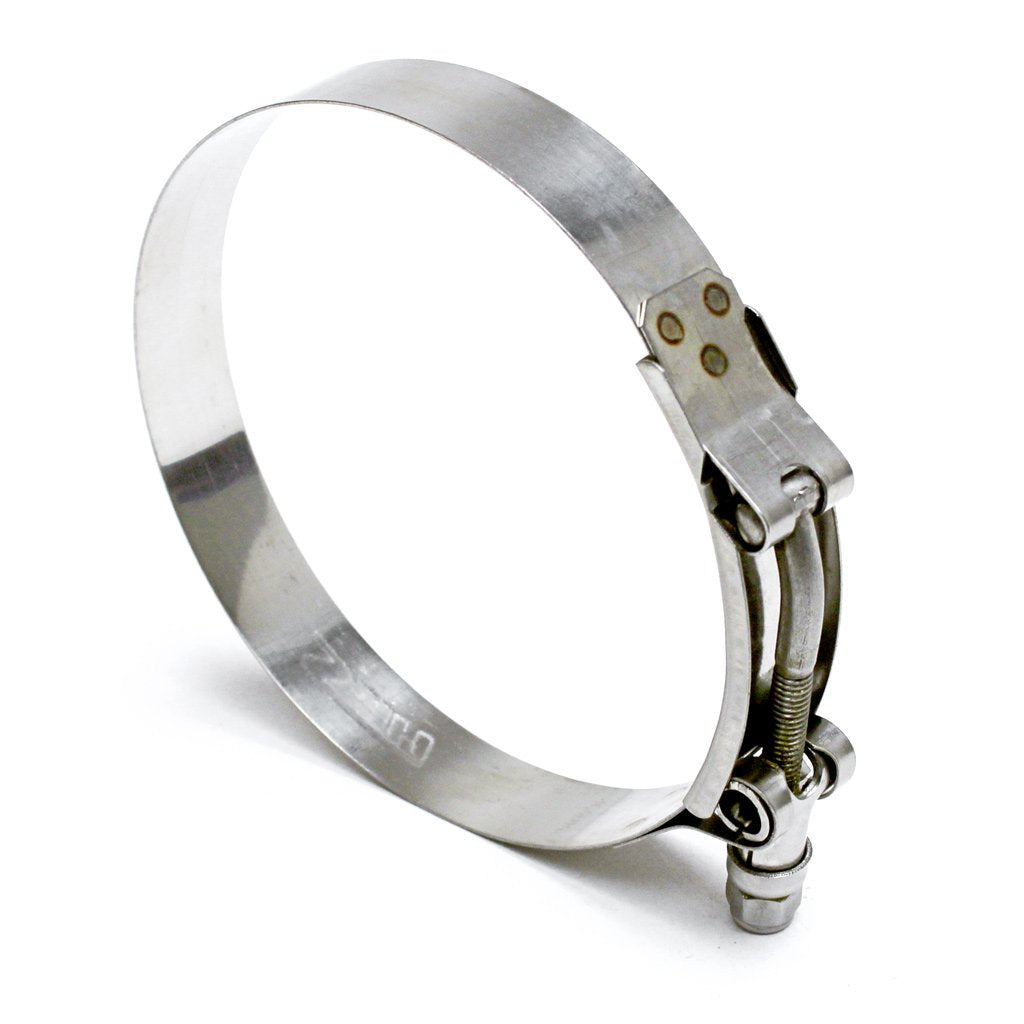

- Floating bridge and rolled edges to protect soft hoses
- 3/4" Band Width. Band thickness: 0.6mm. - Maxmium Torque Spec 75 in. lbs
Why 316 Marine Grade Stainless Steel?
Marine grade 316 stainless steel T Bolt hose clamps perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 T Bolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Professionals also utilize the high-strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment.
REMARK: Two clamps are recommended to be used on each end of a wet exhaust installation.
Please refer to the table listed below for the size and matching hose inside diameter. If you have questions picking the right clamp size, you can refer to the FAQ located at the bottom of this page.
| Size # | Effective Diameter Range | Fits HPS Hoses with INSIDE Diameter |
304 Stainless Steel Part Number - MSRP |
316 Stainless Steel Part Number - MSRP |
|---|---|---|---|---|
| - | 1.25" - 1.46" (32mm-37mm) | 1" (25mm) | SSTC-32-37 - $6.00 each | |
| - | 1.38" - 1.57" (35mm-40mm) | 1-1/8" (28mm) | SSTC-35-40 - $6.00 each | 316-SSTC-35-40 - $8.00 each |
| - | 1.5" - 1.69" (38mm-43mm) | 1-1/4" (32mm) | SSTC-38-43 - $6.00 each | 316-SSTC-38-43 - $8.00 each |
| - | 1.61" - 1.77" (41mm-46mm) | 1-3/8" (35mm) | SSTC-41-46 - $6.00 each | 316-SSTC-41-46 - $8.00 each |
| 28 | 1.73" - 2" (44mm-51mm) | 1-1/2" (38mm) | SSTC-44-51 - $6.00 each | 316-SSTC-44-51 - $8.00 each |
| 32 | 1.89" - 2.2" (48mm-56mm) | 1-5/8" (41mm) | SSTC-48-56 - $6.00 each | 316-SSTC-48-56 - $8.00 each |
| 36 | 2" - 2.32" (51mm-59mm) | 1-3/4" (45mm) | SSTC-51-59 - $6.00 each | 316-SSTC-51-59 - $8.00 each |
| 40 | 2.13" - 2.44" (54mm-62mm) | 1-7/8" (48mm) | SSTC-54-62 - $6.00 each | 316-SSTC-54-62 - $8.00 each |
| 44 | 2.25" - 2.56" (57mm-65mm) | 2" (51mm) | SSTC-57-65 - $6.00 each | 316-SSTC-57-65 - $8.00 each |
| 48 | 2.38" - 2.68" (60mm-68mm) | 2-1/8" (54mm) | SSTC-60-68 - $6.00 each | 316-SSTC-60-68 - $8.00 each |
| 52 | 2.5" - 2.8" (63mm-71mm) | 2-1/4" (57mm) | SSTC-63-71 - $6.00 each | 316-SSTC-63-71 - $8.00 each |
| 56 | 2.64" - 2.95" (67mm-75mm) | 2-3/8" (60mm) | SSTC-67-75 - $6.00 each | 316-SSTC-67-75 - $8.00 each |
| 60 | 2.75" - 3.07" (70mm-78mm) | 2-1/2" (63mm) | SSTC-70-78 - $6.00 each | 316-SSTC-70-78 - $8.00 each |
| 64 | 2.87" - 3.19" (73mm-81mm) | 2-11/16" (68mm) | SSTC-73-81 - $6.00 each | 316-SSTC-73-81 - $8.00 each |
| 68 | 3" - 3.31" (76mm-84mm) | 2-3/4" (70mm) | SSTC-76-84 - $6.00 each | 316-SSTC-76-84 - $8.00 each |
| 72 | 3.13" - 3.44" (79mm-87mm) | 2-7/8" (73mm) | SSTC-79-87 - $6.00 each | 316-SSTC-79-87 - $8.00 each |
| 76 | 3.25" - 3.58" (83mm-91mm) | 3" (76mm) | SSTC-83-91 - $6.00 each | 316-SSTC-83-91 - $8.00 each |
| 80 | 3.39" - 3.7" (86mm-94mm) | 3-1/8" (80mm) | SSTC-86-94 - $6.00 each | 316-SSTC-86-94 - $8.00 each |
| 84 | 3.5" - 3.82" (89mm-97mm) | 3-1/4" (83mm) | SSTC-89-97 - $6.00 each | 316-SSTC-89-97 - $8.00 each |
| 92 | 3.75" - 4.06" (95mm-103mm) | 3-1/2" (89mm) | SSTC-95-103 - $6.00 each | 316-SSTC-95-103 - $8.00 each |
| 98 | 3.93" - 4.25" (100mm-108mm) | 3-3/4" (95mm) | 316-SSTC-100-108 - $8.00 each | |
| 102 | 4.06" - 4.38" (103mm-111mm) | 3-7/8" (98mm) | SSTC-102-110 - $6.00 each | 316-SSTC-102-110 - $8.00 each |
| 108 | 4.25" - 4.57" (108mm-116mm) | 4" (102mm) | SSTC-108-116 - $6.00 each | 316-SSTC-108-116 - $8.00 each |
| 116 | 4.5" - 4.8" (114mm-122mm) | 4-1/4" (108mm) | SSTC-114-122 - $6.00 each | 316-SSTC-114-122 - $8.00 each |
| 124 | 4.76" - 5.08" (121mm-129mm) | 4-1/2" (114mm) | SSTC-121-129 - $6.00 each | 316-SSTC-121-129 - $8.00 each |
| 132 | 5" - 5.31" (127mm-135mm) | 4-3/4" (121mm) | 316-SSTC-127-135 - $8.00 each | |
| 140 | 5.24" - 5.55" (133mm-141mm) | 5" (127mm) | SSTC-133-141 - $6.00 each | 316-SSTC-133-141 - $8.00 each |
| 148 | 5.5" - 5.81" (140mm-148mm) | 5-1/4" (133mm) | 316-SSTC-140-148 - $8.00 each | |
| 156 | 5.75" - 6.06" (146mm-154mm) | 5-1/2" (140mm) | SSTC-146-154 - $6.00 each | 316-SSTC-146-154 - $8.00 each |
| 164 | 6" - 6.31" (152mm-160mm) | 5-3/4" (146mm) | 316-SSTC-153-161 - $8.00 each | |
| 172 | 6.26" - 6.57" (159mm-167mm) | 6" (152mm) | SSTC-159-167 - $6.00 each | 316-SSTC-159-167 - $8.00 each |
| 180 | 6.5" - 6.81" (165mm-173mm) | 6-1/4" (159mm) | 316-SSTC-165-173 - $9.00 each | |
| 188 | 6.75" - 7.06" (172mm-180mm) | 6-1/2" (165mm) | SSTC-172-180 - $8.00 each | 316-SSTC-172-180 - $9.00 each |
| 196 | 7" - 7.31" (178mm-186mm) | 6-3/4" (171mm) | 316-SSTC-178-186 - $9.00 each | |
| 204 | 7.25" - 7.56" (184mm-192mm) | 7" (178mm) | SSTC-184-192 - $8.00 each | 316-SSTC-184-192 - $9.00 each |
| 212 | 7.5" - 7.81" (191mm-198mm) | 7-1/4" (184mm) | 316-SSTC-191-199 - $10.00 each | |
| 220 | 7.75" - 8.06" (197mm-205mm) | 7-1/2" (190mm) | SSTC-197-205 - $9.00 each | 316-SSTC-197-205 - $10.00 each |
| 228 | 8" - 8.31" (203mm-211mm) | 7-3/4" (197mm) | 316-SSTC-204-212 - $10.00 each | |
| 236 | 8.25" - 8.56" (210mm-218mm) | 8" (200mm) | SSTC-210-218 - $9.00 each | 316-SSTC-210-218 - $10.00 each |
| 260 | 9" - 9.34" (229mm-237mm) | 8-3/4" (222mm) | 316-SSTC-229-237 - $10.00 each | |
| 308 | 10.52" - 10.83" (267mm-275mm) | 316-SSTC-267-275 - $10.00 each |
FAQ
Question: What is the best way to determine the clamp size you'll need?Answer:
1. If you are buying the clamps for a pipe or a hose that is NOT made by HPS, simply measure the outside diameter (O.D.) of your final hose assembly or pipe. Locate the HPS part number with the measured O.D. falls in the middle of the effective size range. You can also use the size # as the reference if you already know the SAE # of the clamps you need.
2. If you are buying the clamps for our HPS silicone hoses, you can simply refer to the chart listed above. The chart shows the clamps part number that would fit on HPS Silicone Hoses with the INSIDE DIAMETER.
Examples
Question. If a hose or piping OUTSIDE diameter is 2-1/8" (54mm), should I pick t-bolt clamp size # 36 or size # 40?
Answer:
The correct choice is size # 36. You would need the t-bolt clamp effective size to be 51mm-59mm so the HOSE OUTSIDE Diameter would fall in between the effective size range. Remark: Size # 48 fits the HPS Silicone Hose with INSIDE diameter of 2-1/8" (54mm), but it does NOT fit hose or piping with OUTSIDE diameter of 2-1/8" (54mm).
Question. If a hose has INSIDE diameter = 2-3/8" (60mm), what part# should I choose?
Answer:
In this case, we would NOT be able to figure out what t-bolt clamp to be used until we know the OUTSIDE diameter of the hose. An obvious choice is size # 56 if your hose has 5mm wall thickness (all HPS silicone hoses have 5mm wall thickness unless otherwise stated). However, it might vary since different hose has different wall thickness; if your hose wall thickness is 4mm, then the OUTSIDE diameter would be 60mm+4mm +4mm = 68mm, a t-bolt clamp with effective range size # 52 would be a better fit for a hose with 2-3/8" ID and 4mm wall thickness.
