GReddy SUPREME SP HONDA CIVIC TYPE-R 2017-21 - () 10158214
GReddy SUPREME SP HONDA CIVIC TYPE-R 2017-21 - () 10158214
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 154.32 lb
Billable shipping weight; may include dimensional weight.

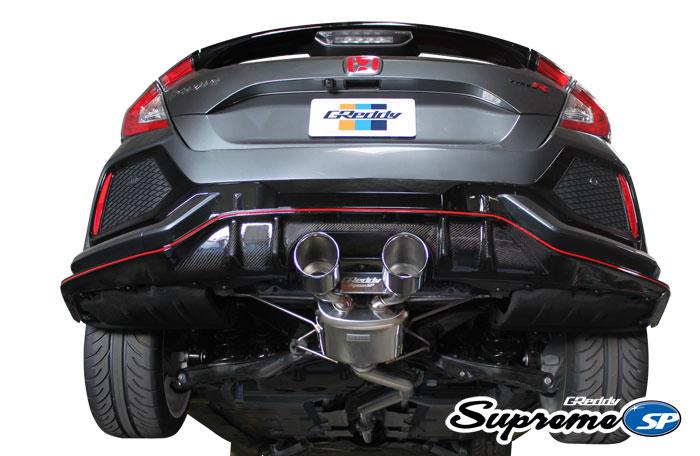

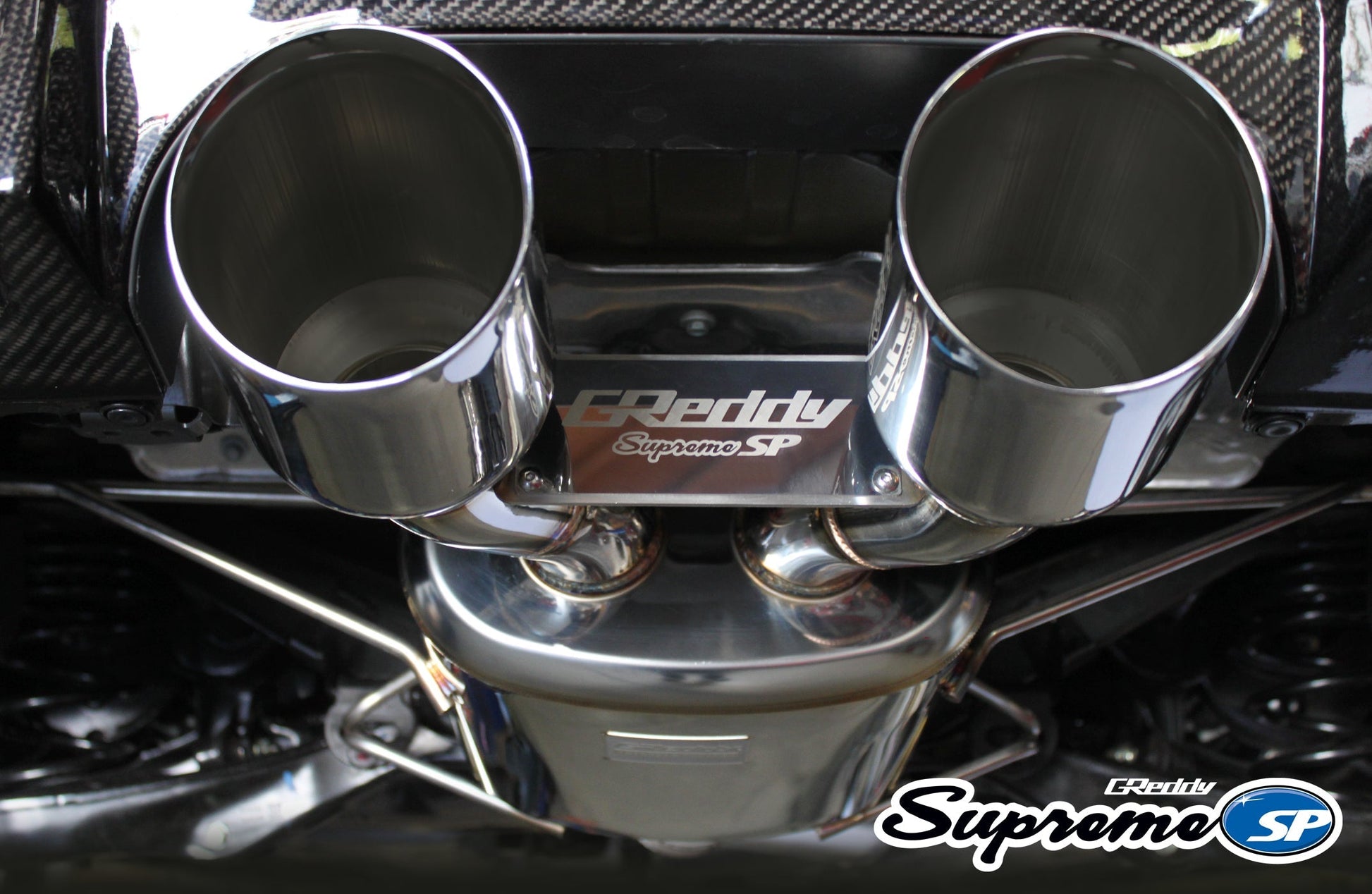

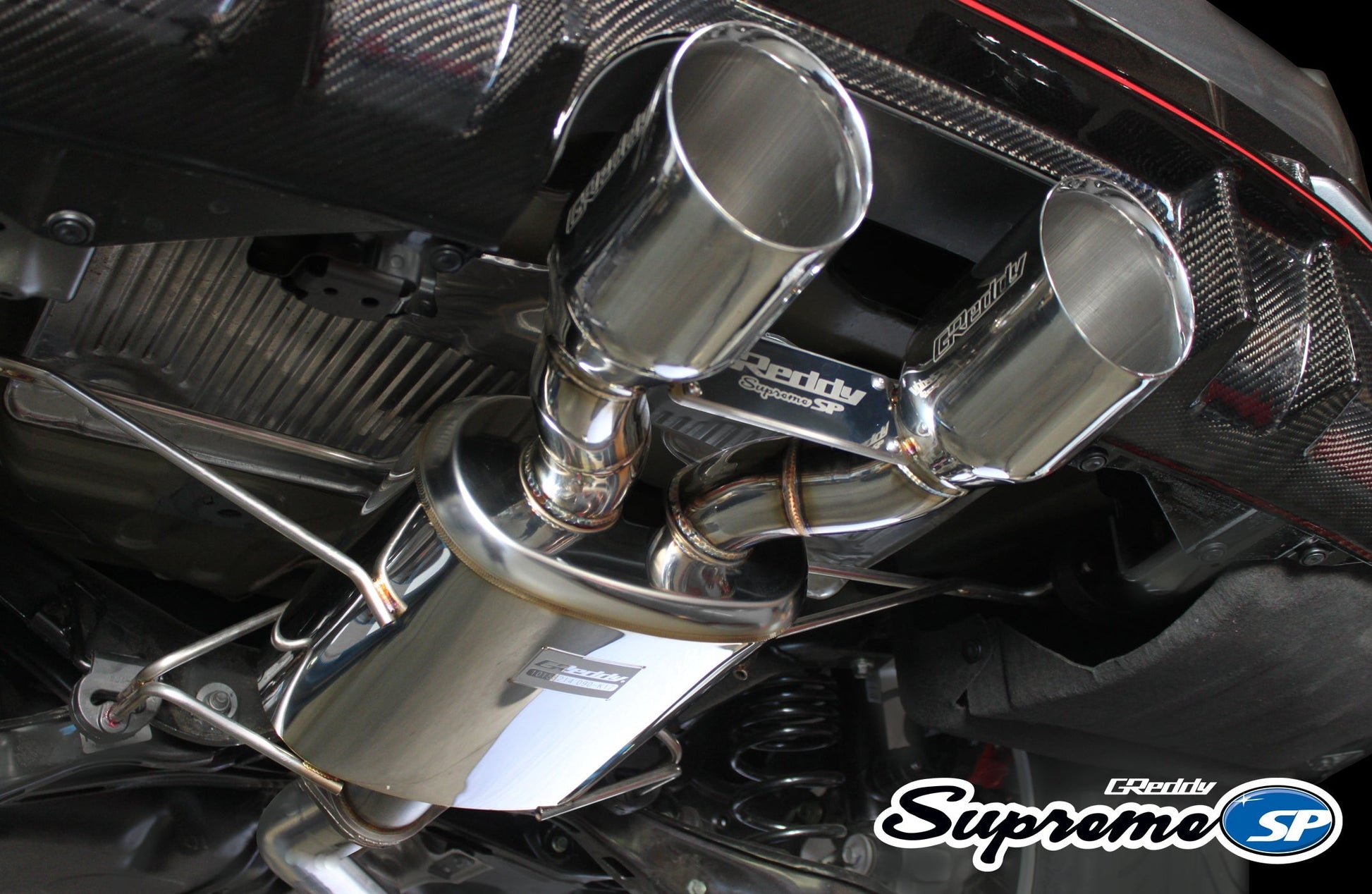

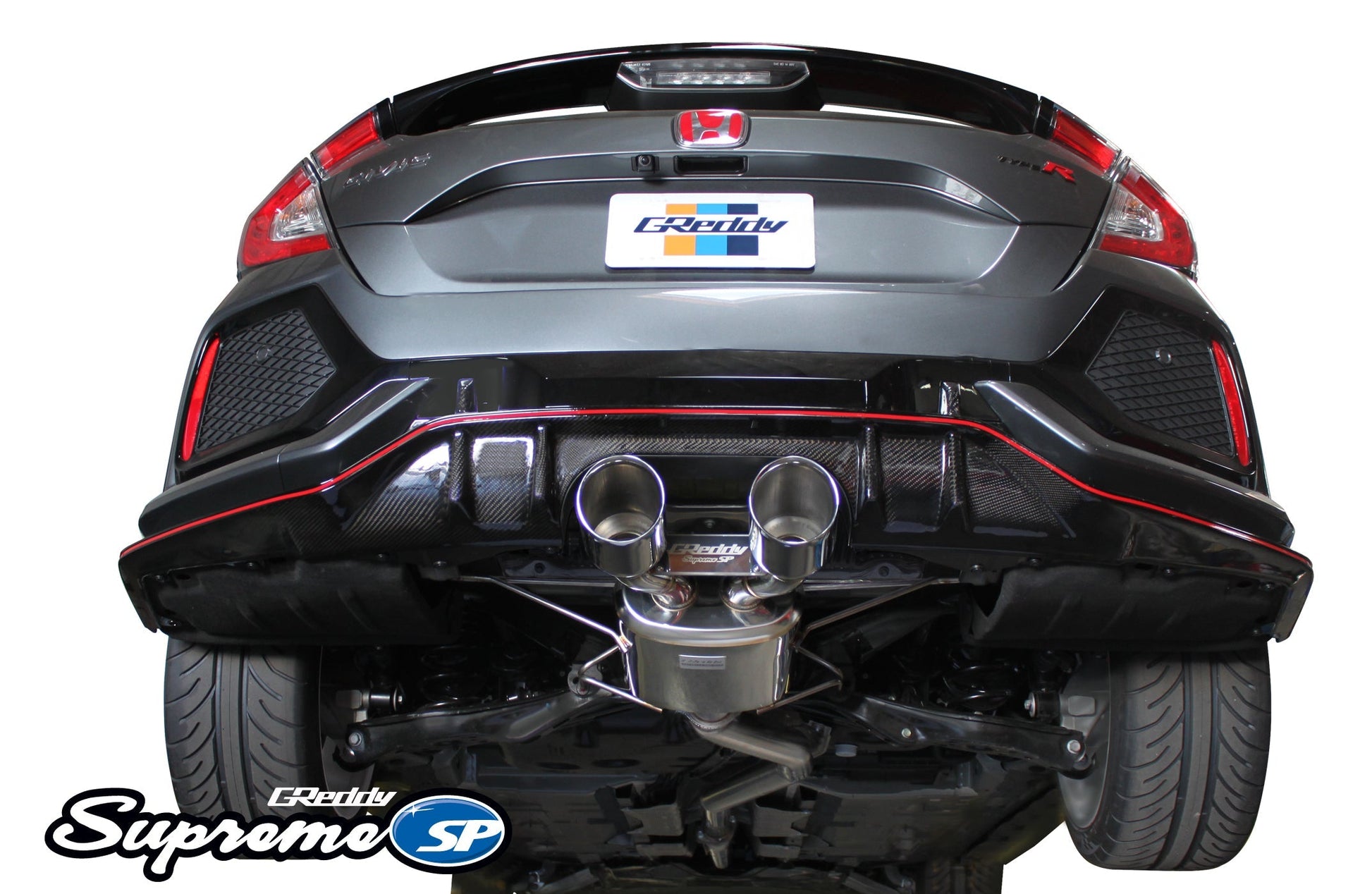

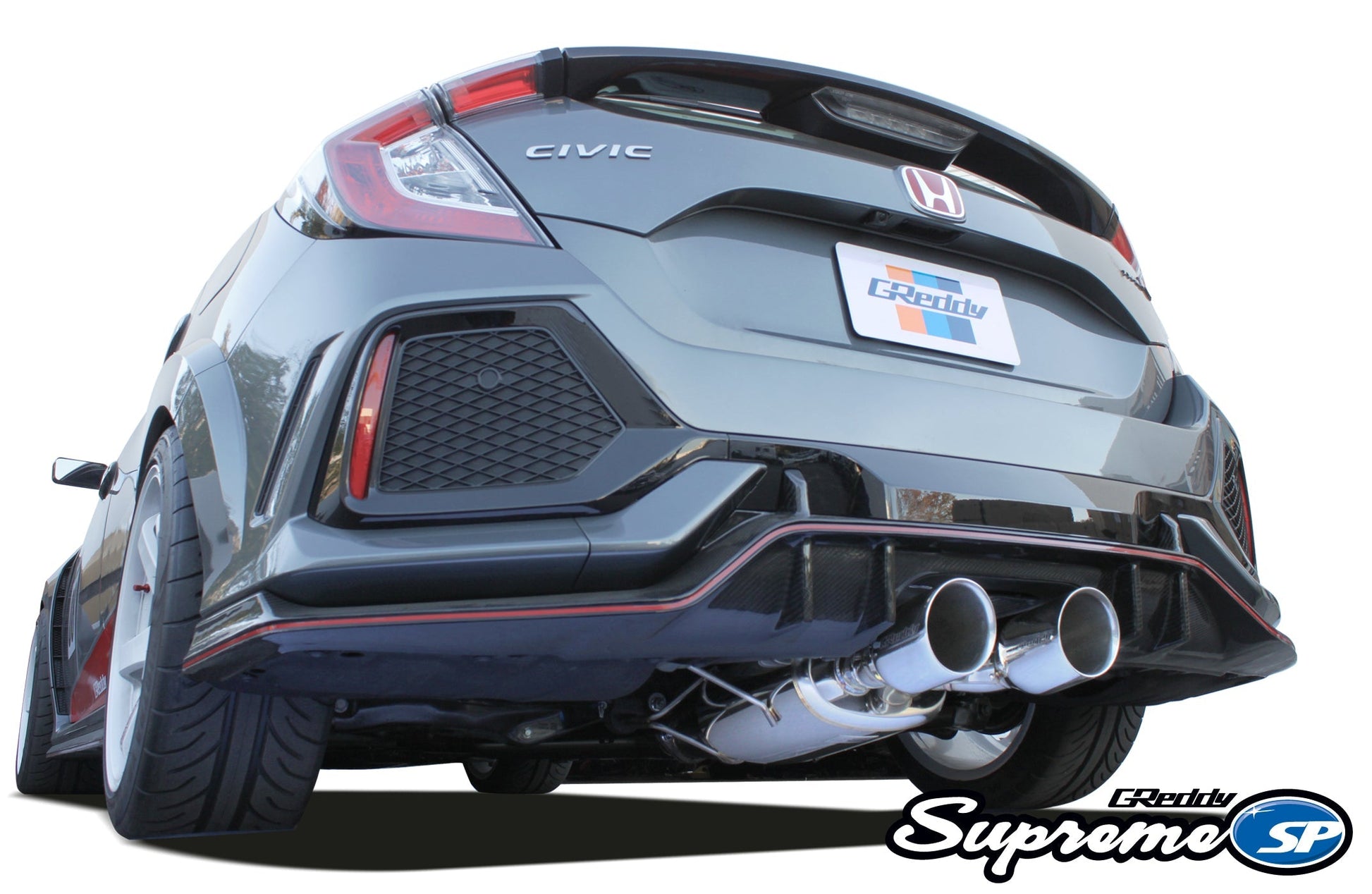

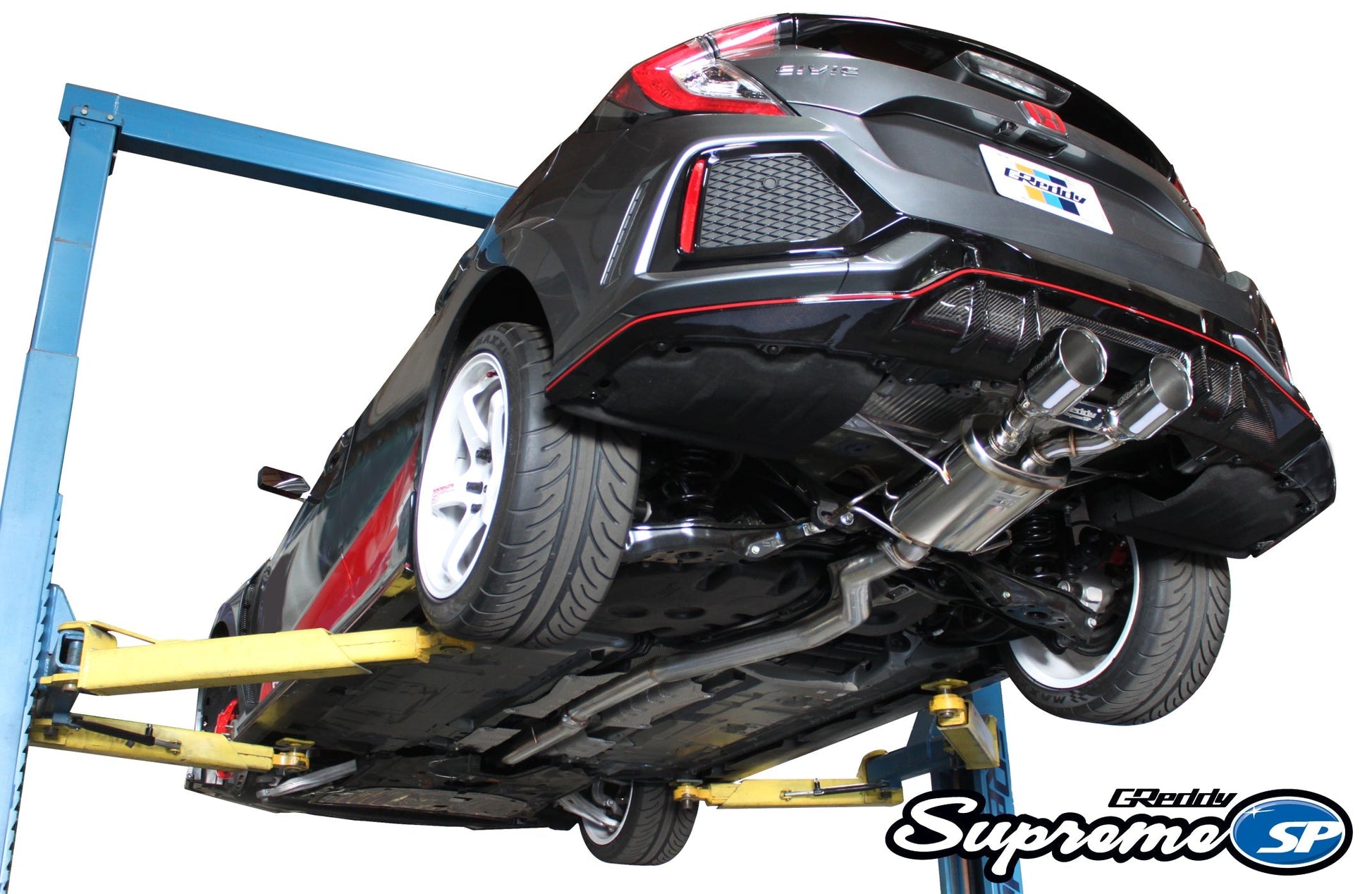

The GReddy Honda Civic Type R exhaust keeps with the SP tradition of a street performance exhaust. Careful attention to both sound and performance was considered in the design of this system. The free flowing straight-though exhaust on the CTR’s turbocharged K20C1 engine netted just 88dba on our standardized revving sound test with an amazing 16whp increase on our chassis dyno. Large diameter, stainless-steel, 3” mandrel-bent piping is tucked up in the FK8 Civic Type R chassis to a larger specially shaped SP oval muffler, to maximize flow and control the sound quality. Exhaust flow exits through dual 2.5” ports on the muffler canister to carefully positioned, high polished exhaust pipes and dual-wall Tips. The Civic Type R’s rear diffuser exhaust opening is elegantly completed with a special GReddy Supreme SP badge, between the dual 4.5” SP tips.
* AVAILABLE OPTION ITEMS: compatible with Supreme SP
Full 3" Forward Mid-pipe Replacement p/n 10558601
3" Front Over-pipe Option p/n 10558600
Chassis: FK8
Engine: K20C1 Turbo
Type: Cat-back single oval muffler
with dual tips & spl. Supreme SP badge
Number of pieces: 3
Piping: 76 mm (3 ")
Tips: 115 mm (4.5 ")
Gasket(s): 3 " oval (qty: 2 included) replacement
Resonator: no
Weight: TBA lbs (Stock weight TBA lbs)
Sound Comparison (SAE J1169) Test: 88 dB(a) @3400rpm (limited)
HP: +16 hp
TRQ: +TBA ft-lbs
*Data collected on stock vehicle *Retains catalytic convertor, front pipe
*TBA = To Be Announced
