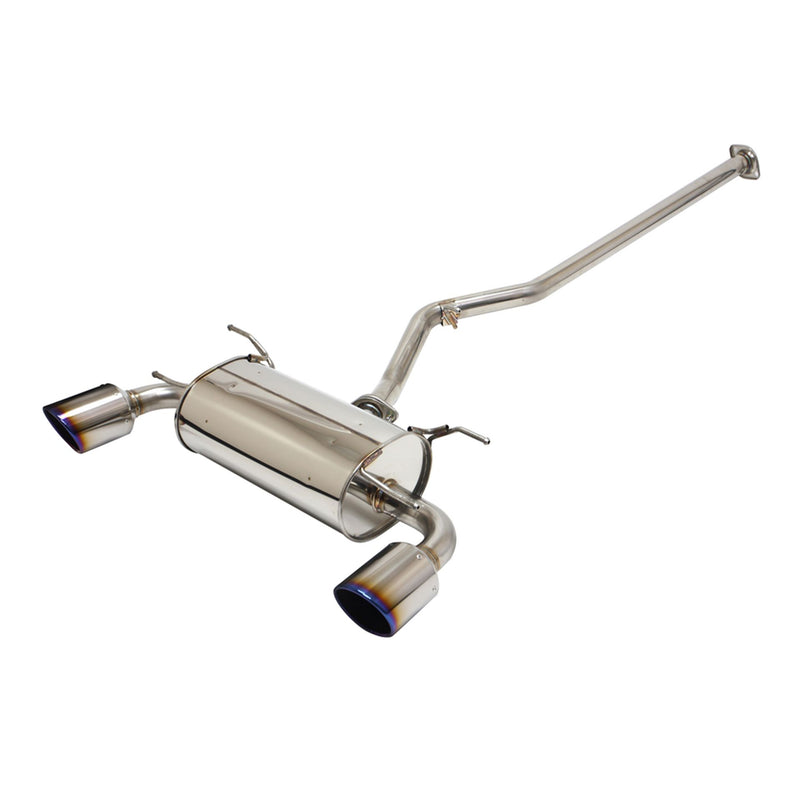

Apexi RS Evo Extreme Muffler, 2013+ Scion FR-S / Subaru BRZ / Toyota 86

The RS Evolution Extreme is based on the RS Evolution Muffler with the addition of full titanium tips. A Hybrid muffler uniting the power and free-flowing characteristics of our N1 Muffler with the quiet and discreet sound output of our Hybrid Megaphone Evolution Muffler. The RS Evolution Muffler is a combination of an A'PEXi original patented megaphone piping structure design and larger piping diameters to produce ultimate performance for your turbo-charged engine.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.
| Bolt-On | Yes |
|---|---|
| Part Number | 114BT090J |
| Year | 2013+ |
| Make | Subaru, Toyota |
| Model | BRZ, 86 |
| Body Style | 2-Door Coupe |
| Engine | FA20 |
| Chassis | ZC6 |
| Exhaust Type | RS Evolution Extreme Muffler |
| Piping Diameter | 60mm. |
| Tip Diameter | 123mm. x 3 |
| Pieces | 2 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
![]() |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Series.Blue, Aozora Edition |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2013 - 2017 | Subaru | BRZ | Sport-tech, Limited, Premium, Base |
| 2017 | Toyota | 86 | Special Edition, Base |
