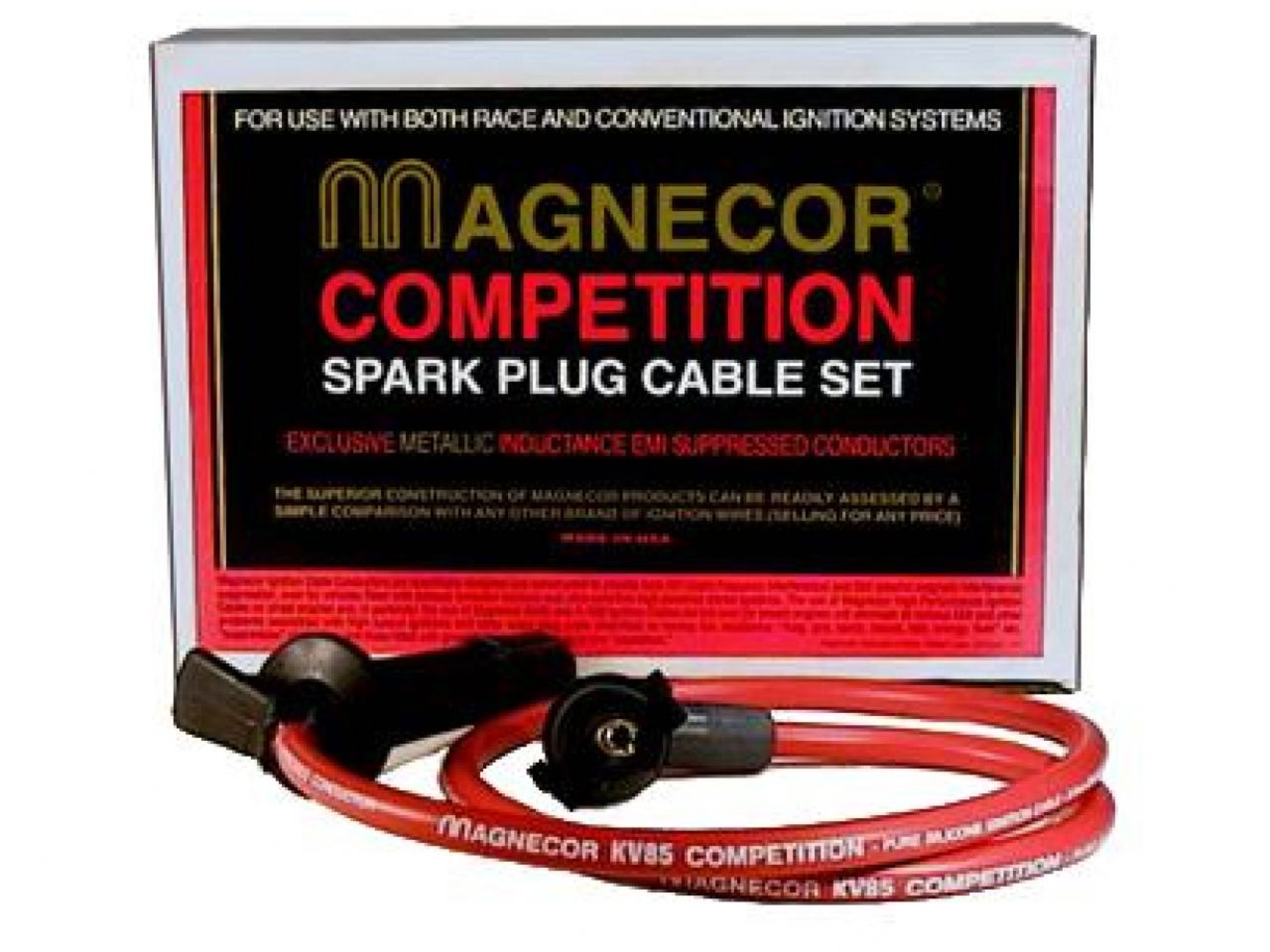

Magnecor 8.5mm Wire Set

Magnecor's KV85 Competition (8.5mm)Ignition Cables feature Magnecor's exclusive 2.5mm high capacity Metallic Inductance EMI Suppressed conductor consisting of stainless steel wire precisely wound at 200 turns per inch over a ferrimagnetic core. The insulating jacket is made entirely of Magnecor's exclusive TC-1500-HS high strength aerospace grade silicone rubber, and its single layer construction will prolong the jacket's insulating ability by conducting extreme heat away from hot-spots that occur near over-the-limit heat sources.

The KV85 8.5mm jacket has a service heat resistance of 600 degrees F (320 degrees C) and up to 1,000 degrees F (540 degrees C) for short burst 3 minutes. Even if limits are exceeded, the silicone rubber will retain its insulating ability until wires are removed from engine.

Magnecor Race Wires are primarily designed and constructed to be used in applications where it is essential to prevent the possibility of ignition wires compromising engine performance. Modern race engines, modified street engines and stock street engines which rely on electronic devices to control the function of either or both the ignition and fuel systems are prone to interference from all other spiral conductor ignition wires sold through performance parts outlets, none of which can provide proper suppression for EMI, particularly if a high-output ignition system is used.

Magnecor always recommends the use of Race Wires for any stock or modified late model street engine that is electronically managed, however most other modified or street engines can also use Magnecor Race Wires to improve ignition performance.

All Magnecor KV85 Competition 8.5mm Plug Wires are Red in color.

Application

• 1978 - 1979 CHEVROLET C10 L6 4.1 GAS CARB
• 1978 - 1980 CHEVROLET C10 L6 4.1 GAS CARB
• 1978 - 1979 CHEVROLET C20 L6 4.1
• 1978 - 1979 CHEVROLET CAMARO L6 4.1
• 1978 - 1979 CHEVROLET CAPRICE L6 4.1
• 1978 - 1979 CHEVROLET G10 L6 4.1
• 1978 - 1984 CHEVROLET G10 L6 4.1
• 1978 - 1979 CHEVROLET G20 L6 4.1
• 1978 - 1984 CHEVROLET G20 L6 4.1 GAS CARB N
• 1978 - 1979 CHEVROLET G30 L6 4.1
• 1978 - 1984 CHEVROLET G30 L6 4.1 GAS CARB N
• 1978 - 1979 CHEVROLET IMPALA L6 4.1
• 1978 - 1979 CHEVROLET K10 L6 4.1
• 1978 - 1984 CHEVROLET K10 L6 4.1 GAS CARB N
• 1978 - 1979 CHEVROLET K10 SUBURBAN L6 4.1
• 1978 - 1980 CHEVROLET K10 SUBURBAN L6 4.1
• 1978 - 1979 CHEVROLET K20 L6 4.1
• 1978 - 1986 CHEVROLET K20 L6 4.1 GAS CARB N
• 1978 - 1982 CHEVROLET K20 SUBURBAN L6 4.8 GAS CARB N
• 1978 - 1986 CHEVROLET K30 L6 4.8 GAS CARB N
• 1978 - 1979 CHEVROLET K5 BLAZER L6 4.1
• 1978 - 1982 CHEVROLET K5 BLAZER L6 4.1 GAS CARB N
• 1978 - 1979 CHEVROLET NOVA L6 4.1
• 1978 - 1980 CHEVROLET P10 L6 4.8
• 1978 - 1989 CHEVROLET P20 L6 4.8 GAS CARB N
• 1978 - 1979 CHEVROLET P30 L6 4.1
• 1978 - 1979 CHEVROLET P30 L6 4.1;4.8
• 1978 - 1978 GMC C15 L6 4.1 GAS CARB
• 1978 - 1978 GMC C15 SUBURBAN L6 4.1 GAS CARB N
• 1979 - 1984 GMC C1500 L6 4.1 GAS CARB
• 1979 - 1980 GMC C1500 SUBURBAN L6 4.1 GAS CARB N
• 1978 - 1978 GMC C25 L6 4.1;4.8
• 1978 - 1978 GMC C25 SUBURBAN L6 4.8
• 1979 - 1986 GMC C2500 L6 4.1;4.8 GAS CARB N
• 1979 - 1986 GMC C2500 SUBURBAN L6 4.8 GAS CARB N
• 1978 - 1978 GMC C35 L6 4.1;4.8
• 1979 - 1986 GMC C3500 L6 4.1;4.8 GAS CARB N
• 1978 - 1978 GMC G15 L6 4.1
• 1979 - 1984 GMC G1500 L6 4.1
• 1978 - 1978 GMC G25 L6 4.1;4.8
• 1979 - 1984 GMC G2500 L6 4.1 GAS CARB N
• 1978 - 1978 GMC G35 L6 4.1;4.8
• 1979 - 1984 GMC G3500 L6 4.1 GAS CARB N
• 1978 - 1982 GMC JIMMY L6 4.1 GAS CARB N
• 1978 - 1978 GMC K15 L6 4.1 L
• 1978 - 1978 GMC K15 SUBURBAN L6 4.1
• 1979 - 1984 GMC K1500 L6 4.1;4.8 GAS CARB N
• 1979 - 1980 GMC K1500 SUBURBAN L6 4.1
• 1978 - 1978 GMC K25 L6 4.1;4.8
• 1978 - 1978 GMC K25 SUBURBAN L6 4.8
• 1979 - 1980 GMC K2500 L6 4.1;4.8
• 1979 - 1986 GMC K2500 SUBURBAN L6 4.8 GAS CARB N
• 1978 - 1978 GMC K35 L6 4.8
• 1979 - 1986 GMC K3500 L6 4.8 GAS CARB N
• 1978 - 1978 GMC P15
• 1979 - 1980 GMC P1500 L6 4.8
• 1978 - 1978 GMC P25 L6 4.8
• 1979 - 1989 GMC P2500 L6 4.8 GAS CARB N
• 1978 - 1978 GMC P35 L6 4.8
• 1979 - 1989 GMC P3500 L6 4.8 GAS CARB N
• 1987 - 1988 GMC R2500 L6 4.8 GAS CARB N
• 1987 - 1988 GMC R3500 L6 4.8 GAS CARB N
• 1987 - 1987 GMC V2500 L6 4.8 GAS CARB N
• 1987 - 1988 GMC V3500 L6 4.8 GAS CARB N

Vehicle Fitments:
