Advance Adapters Jeep Dana 300 Transfer Case, Adapter Kit

Advance Adapter

Note: This adapter assembly includes a new Dana 300 input shaft with 27 spline and replaces the existing stock Dana 300 input shaft.

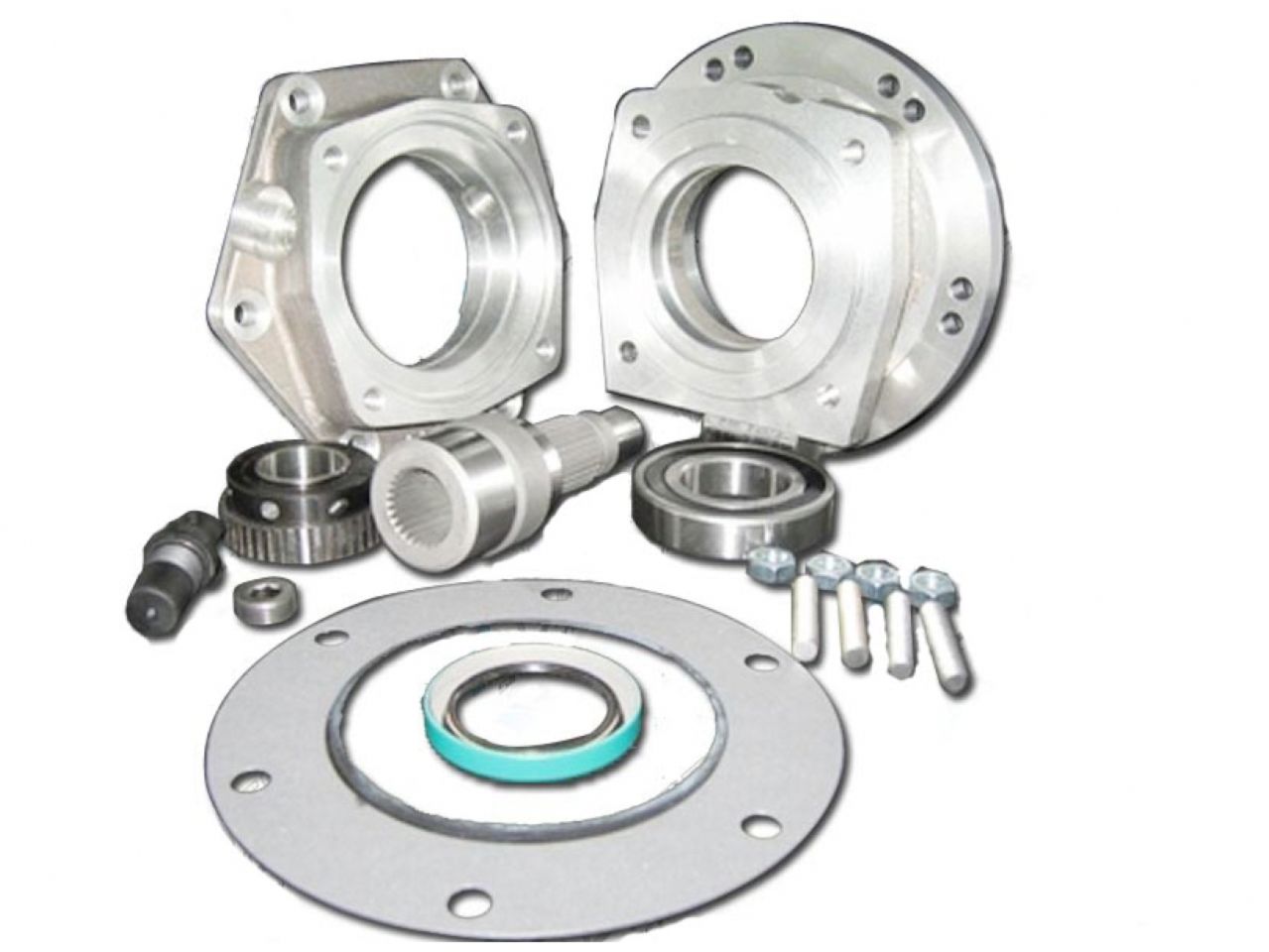

The GM 4L60E / 4L65E adapter to the Jeep Dana 300 is 4.00" in length. And the overall length of the transmission and adapter is 25.875"?. Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision for a transmission mount. The adapter kit includes an adapter housing, adapter ring, new Dana 300 input shaft with 27 splines, GM VSS sensor, reluctor ring, o-ring, gasket, fastening hardware, and adapter instructions.

Transfer Case

1980-86 Jeep Dana 300.

Transmission

The adapter kit is designed for exclusive use with a 1997 & up 4L60E / 4L65E 4wd automatic transmissions.
