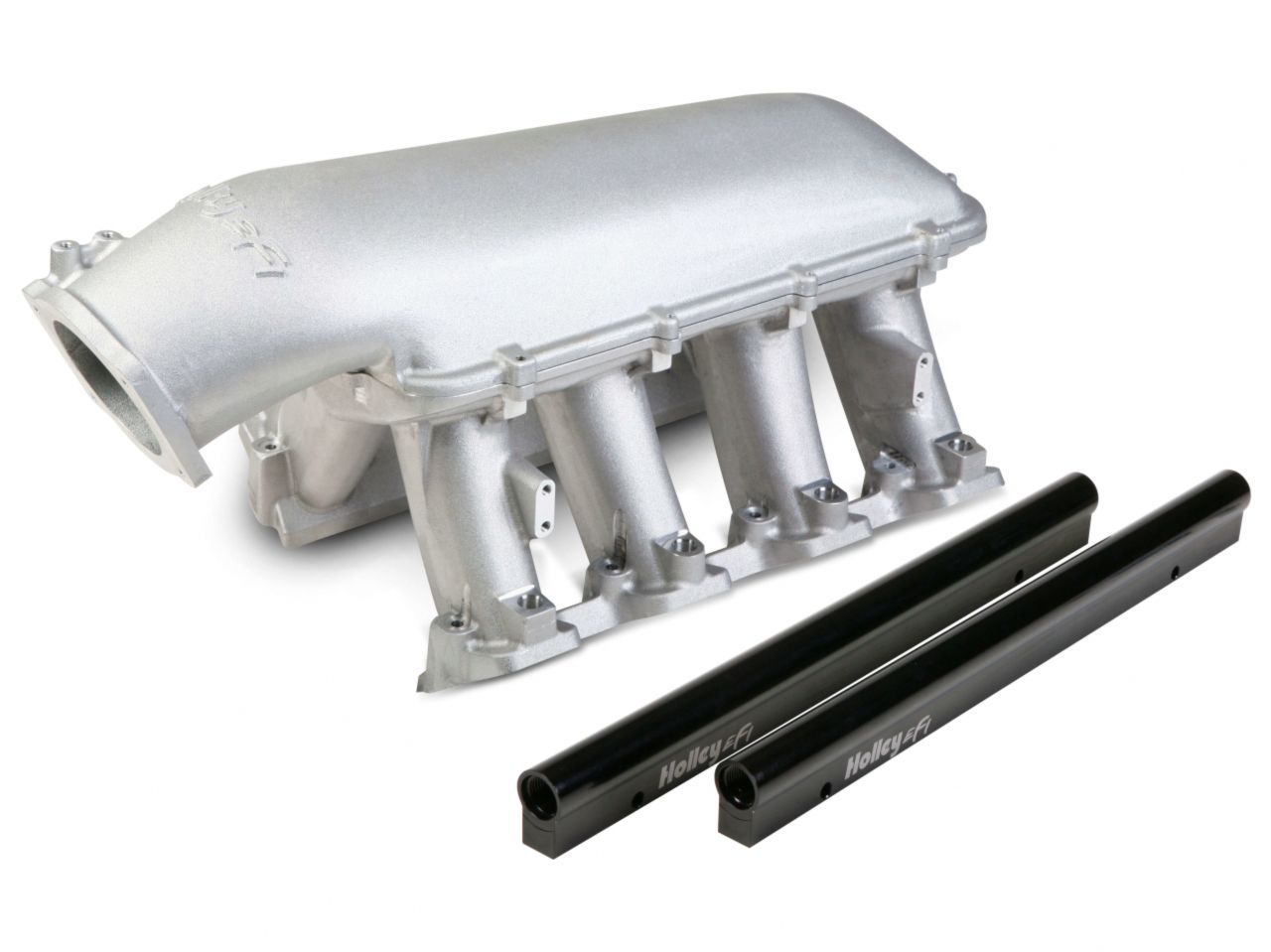

Holley LS Hi-Ram EFI Manifold fits 1 x 105MM Throttle Body
The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminum construction.
Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features:
- Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.
- Total Height with 92/105mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
- Port Size - 2.49" Height x 1.21" Wide
- Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
- Plenum Top Gasket Type - 3/32" Round O-ring Cord
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
- Runner Length - 6.29", As-Cast Runner Cross-Sectional Area - Tapered 4.67 in² to 2.84 in²
Construction | Cast |
---|---|
Emission Code | 3 |
Engine | GM LS7 |
Finish | Satin |
Flange Style | EFI |
Front Height | 12.32 inch |
Fuel System Type | EFI |
Manifold Type | Hi-Ram |
Product Type | Manifold |
Rear Height | 11.00 inch |
RPM Power Band | 1500-7000 |
