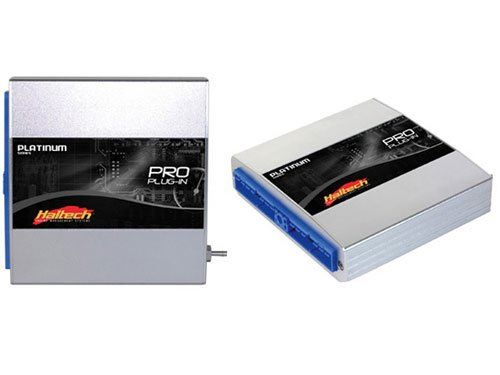

Haltech Platinum PRO Plug-in Nissan Silvia 200SX S15 Manual Trans.

Features:
Direct plug and play replacement of the OEM ECU, no re-wiring necessary.
Uses the cars factory sensors
Supports Sequential Injection (peak and hold) and Direct fire ignition
Windows 2000, XP, Vista, Windows 7 compatible software
Real time programming, instant hesitation free adjustment while engine is running
Fully user definable 32 x 32 mapping
Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
Diagnostic trouble code storing & Check engine light control (Access through laptop only )
Selectable onboard internal MAP sensor rated to 150kPa (up to 1.5 Bar or 22psi boost)
Wideband "auto tuning" using user definable target AFR table
USB and CAN Communication Port

Factory Outputs:
4 x Fuel Injector outputs
4 x Ignition outputs
N-VCT ( Nissan Variable CAM Timing Control)
Tacho, Boost Control, AC Clutch Relay, Idle Control
Thermo Fan, Check Engine Light, Fuel Pump,

Factory Inputs:
MAF sensor, Throttle Position Sensor, Knock Detection Sensor,
Coolant Temperature sensor, Vehicle Speed Sensor,
Oxygen Sensor

Expansion I/O*:
 2 x Analogue Voltage inputs
2 x Analogue Temperature inputs
4 x Digital outputs
*Optional auxiliary harness required to be purchased Haltech Part # HT040003

Functions:
Closed Loop O2 Control
Decel Cut Over Boost Rev Limiter
Closed & Open Loop Boost Control
Gear Setup
ACF On Base Tables
Transient Throttle Enhance

Correction Tables: Fuel Ignition Boost:
Cranking
Air Temp Target Correction
Zero Throttle Gear Correction
Cylinder Trim
TPS Correction
Generic Correction 1
Generic Correction 2
Gear Correction
Post Start
Air Temp Duty Correction
Post Start

Miscellaneous:
Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds,
6 channels of data
Max 20 channels logging capability
Tune can be password protected in software
Rugged anodized aluminum casing

Power Requirements:
Source: 8.6 to 16.5 Volts DC
Consumption: 530mA @ 12Volts DC

Physical Dimensions:
ECU Dimensions Length: 154mm (174mm with MAP nipple)
Width: 158mm Height: 42mm Weight: 680g (1.5 lb)

Applications:
Nissan Silvia S15

Transmission:
Manual only (Automatic not supported)

The Kit includes:
Pro Plug-in ECU, USB Cable, Programming Software CD, Quick Start Guide, Instruction Manual (on CD)

Vehicle Fitments:

Year	Make	Model	Submodel
1995 - 1998	Nissan	240SX	Base, SE
1997 - 1998	Nissan	240SX	LE
