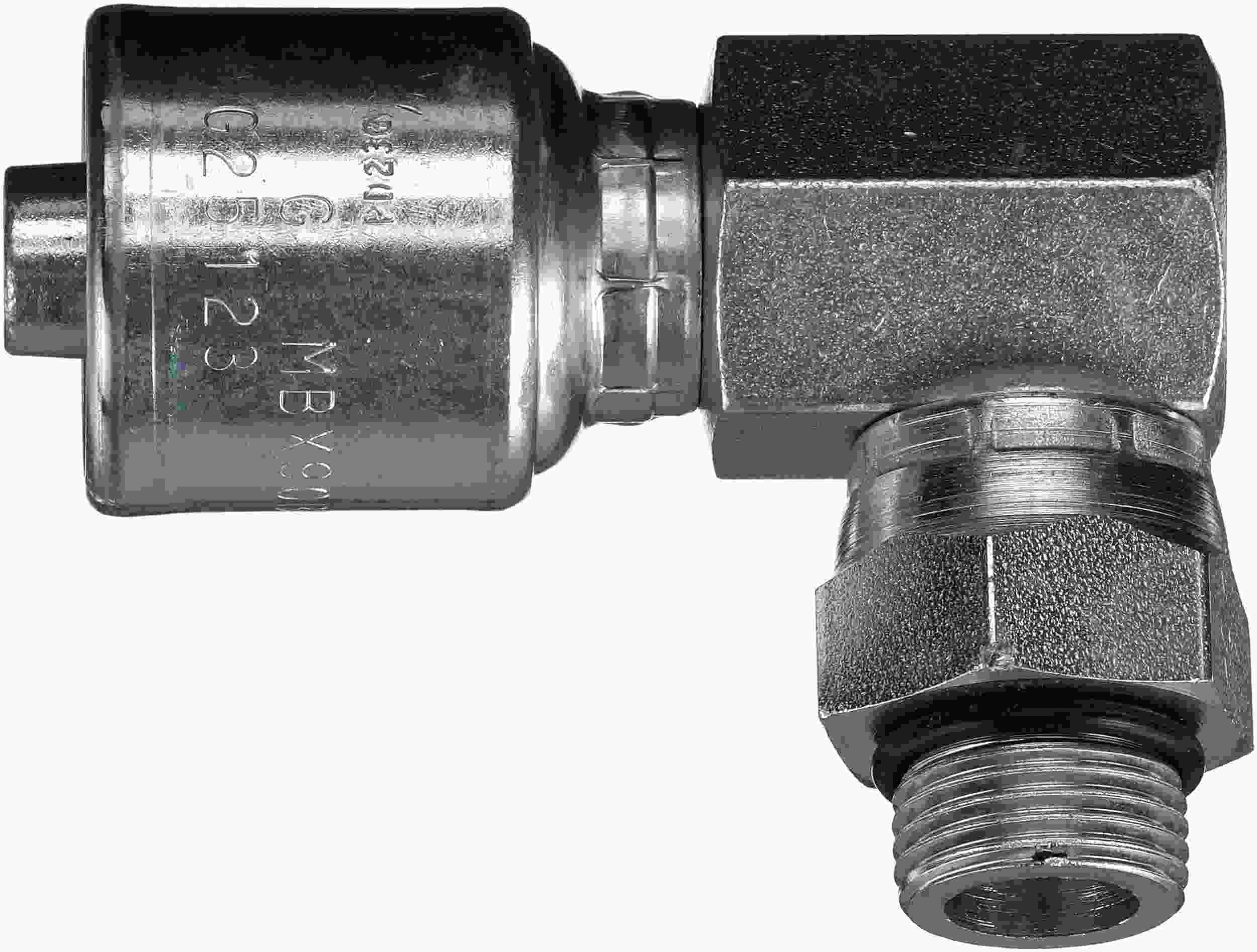

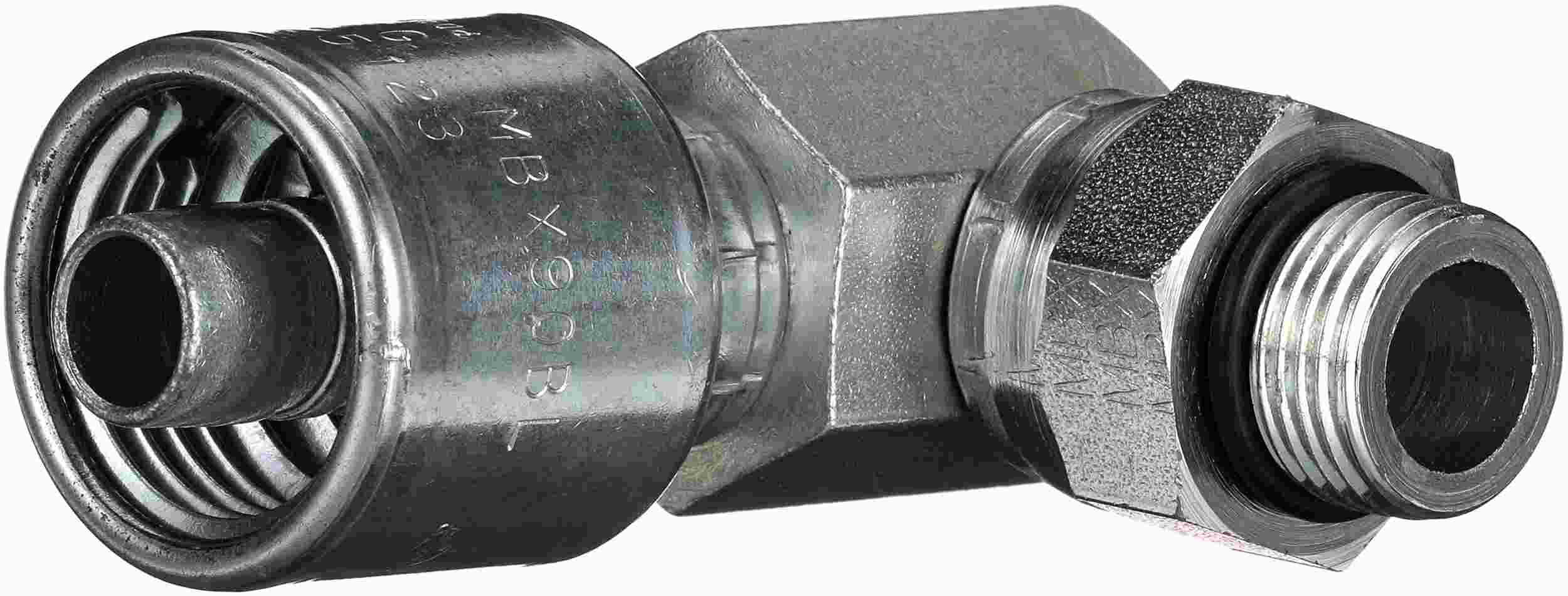

Gates Hydraulic Coupling / Adapter G25123-0606

Hydraulic Coupling / Adapter. (G25123-0606) by Gates

The patented ΓÇ £CΓÇ ¥ insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented ΓÇ £CΓÇ ¥ insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insertΓÇÖs design ensures crimping forces are evenly distributed to form a concentric seal. The ΓÇ £CΓÇ ¥ insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Not to be used as a live swivel. Internal O-rings rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.

• Robust ΓÇ £bite-the-wireΓÇ ¥ crimp
• Tested to an industry-leading 1 million impulse cycles
• Simplifies inventory management
• Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
• Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
