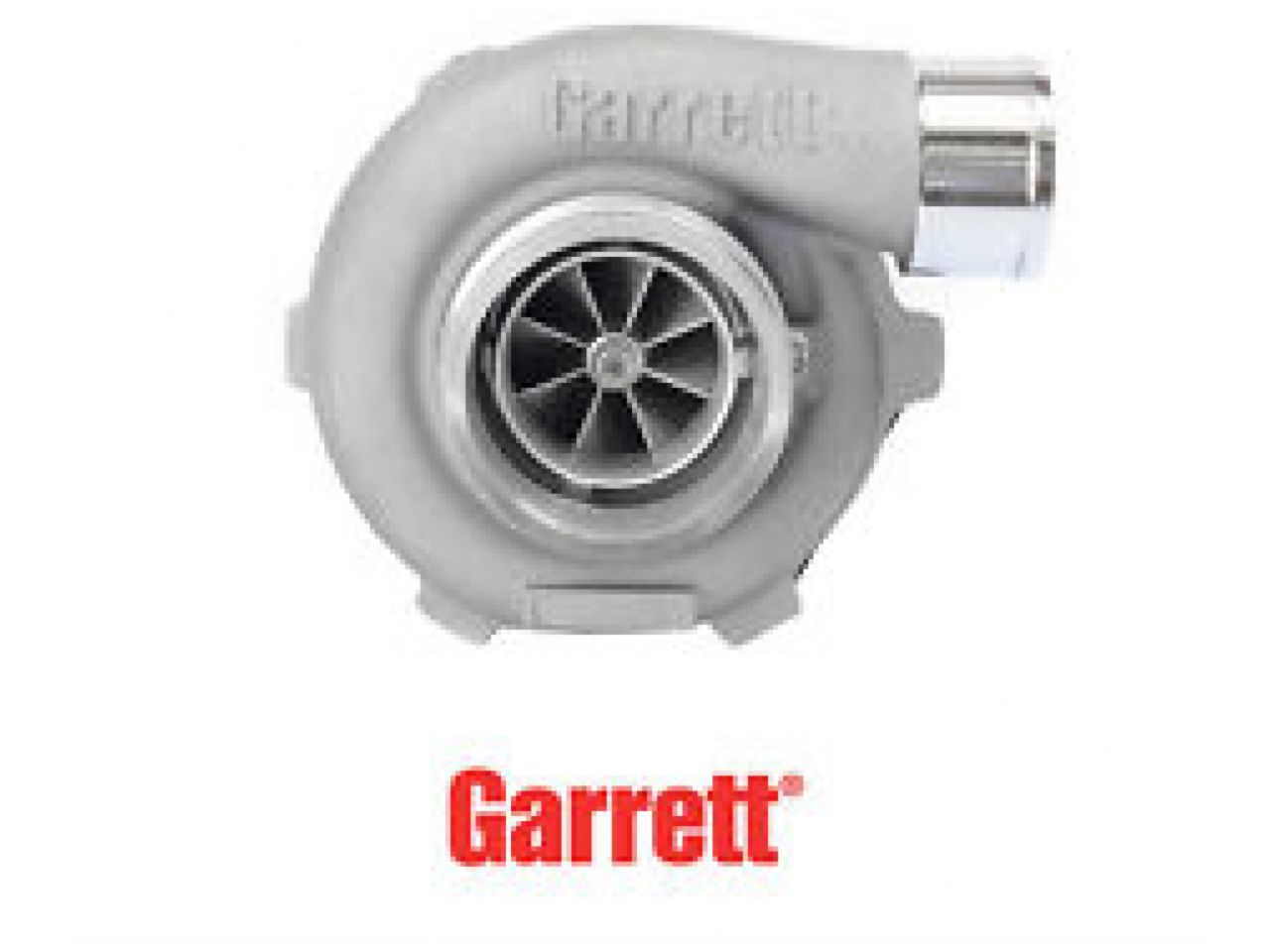

Garrett Turbocharger GTX
Garrett Turbocharger GTX
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyHorsepower: 200 - 475 HP
Displacement: 1.4 - 2.5 L
T25 Inlet - 5-Bolt Outlet - Single Scroll - A/R 0.64
- Gen II Aero Forged Milled Compressor Wheel
- High-Flow Compressor Housing with Integrated Speed Sensor port
- Rotation: Standard (Clockwise)
- Dual Ceramic Ball Bearing Cartridges
- Inconel Turbine Wheel
- Water- and Oil Cooled
- External Wastegate
Compressor side:
Inducer 46.00 mm
Exducer 60.00 mm
Trim 58
A/R 0.60
Turbine side:
Inducer 54.00 mm
Exducer 47.00 mm
Trim 76
A/R 0.64
