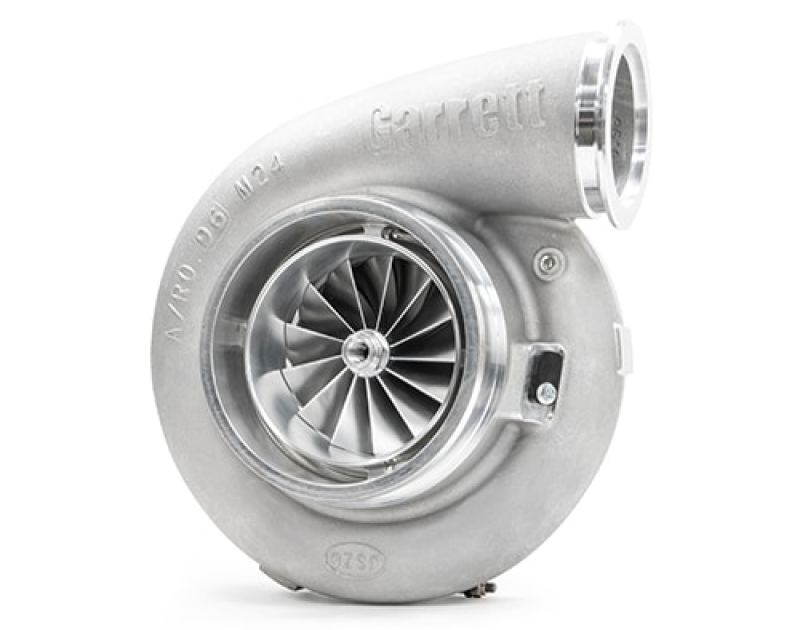

Garrett GTX5533R Super Core 98mm Inducer Gen II
Garrett GTX5533R Super Core 98mm Inducer Gen II
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyGarrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Features
- Gen 2 aerodynamics feature increased horsepower range
- Fully machined speed sensor port - allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions
- Improved porter shroud design for surge resistance
- Lightweight billet backplate
- SFI super core and turbine options
- Horsepower: 1000 - 2500
- Displacement: 3.0L - 12.0L
Specifications
-
Compressor
- Inducer: 98mm
- Exducer: 133
- Trim: 54
- A/R: 0.96
-
Turbine
- Inducer: 112
- Exducer: 102
- Trim: 84
