Garrett GTX5533R Super Core 88mm Inducer Gen II
Garrett GTX5533R Super Core 88mm Inducer Gen II
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyPRODUCT DESCRIPTION:

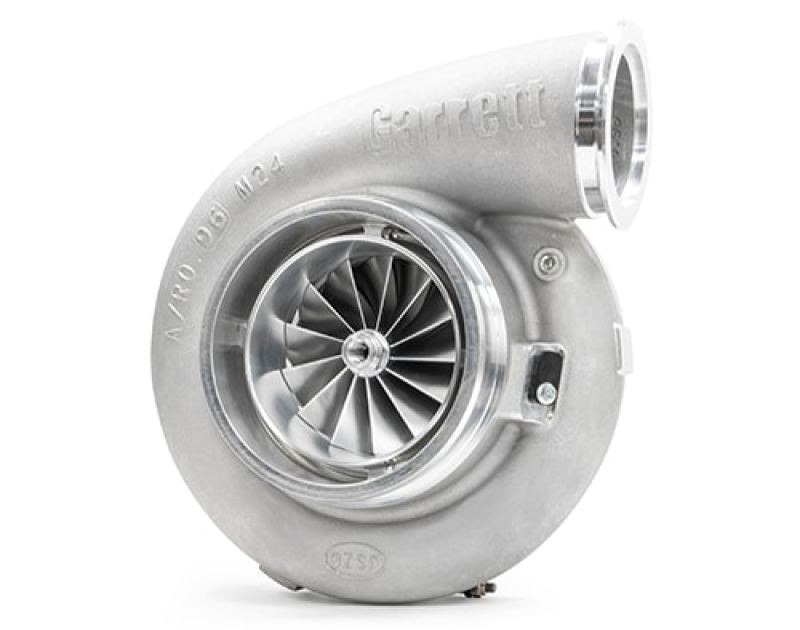

Garrett GEN2 GTX5533R (88mm) dual ball bearing turbocharger (turbine housing sold separately). Designed for race classes limited to a 88mm compressor wheel inducer.
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Machined speed sensor port
- Light weight billet backplate
- Oil cooled bearing housing (no water ports)
- Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 88mm
- Compressor Wheel Exducer: 133mm
- Compressor Wheel Trim: 44
- Compressor Housing A/R: 0.88
- Turbine Wheel Inducer: 112mm
- Turbine Wheel Exducer: 102mm
- Turbine Wheel Trim: 84
OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
NOTE: Alternate oil fittings and flanges are available.
TURBINE HOUSING OPTIONS:
- T6 Inlet and 5.0" V-Band Outlet. Available in 1.00, 1.12, 1.24, 1.40, or 1.78 A/R Product Code: ATP-HSG-015
- SFI T6 Inlet and 5.0" V-Band Outlet. Available in 1.00 A/R or 1.24 A/R
- SFI Stainless Steel V-Band Inlet and 5.0" V-Band Outlet. Available in 1.15 A/R or 1.30 A/R
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in 1.15 A/R or 1.30 A/R
