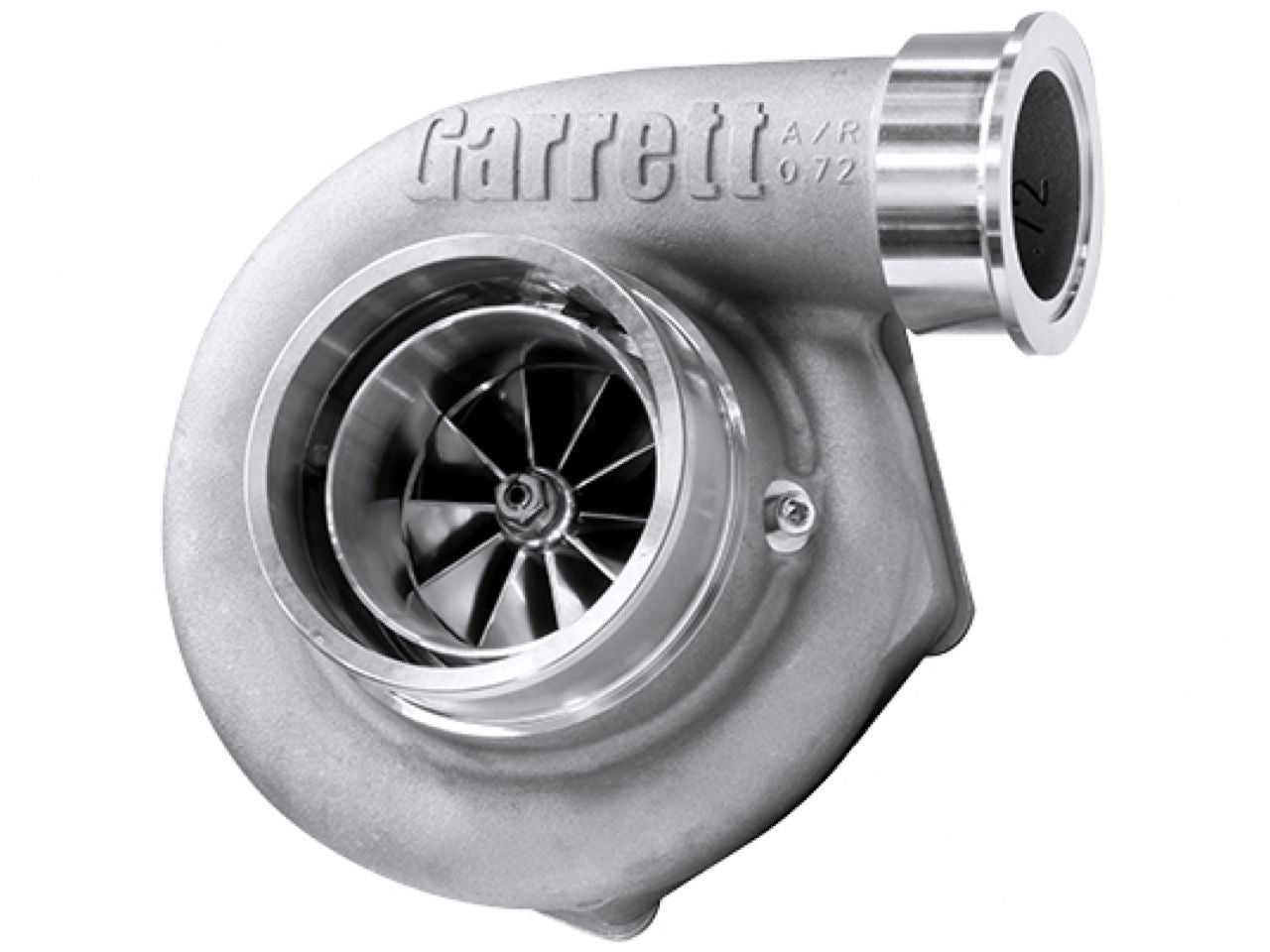

Garrett GTX3584RS Super Core V-Band Outlet
Garrett GTX3584RS Super Core V-Band Outlet
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyFeatures:
- Gen 2 Aerodynamics Feature Increased Horsepower Range
- "RS" Designed, High Horsepower Turbine Wheel
- Compact Design For Tight Installations
- New Fully-machined Speed Sensor Port.
- Sold as Assembly Kits (Super Core + Turbine Kit)
- Comp Outlet Available In V-band & Hose Connection
Specification
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3584RS Hose Bead Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| GTX3584RS V-Band Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Hose Bead Comp Outlet | ||||||||
| V-Band Comp Outlet | 856804-5004S | 846098-5002S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
| 856804-5005S | 846098-5002S | 740902-0066 | 1.01 | V-Band | V-Band | Free Float | N | |
| 856804-5006S | 846098-5002S | 740902-0052 | 1.21 | V-Band | V-Band | Free Float | N | |
