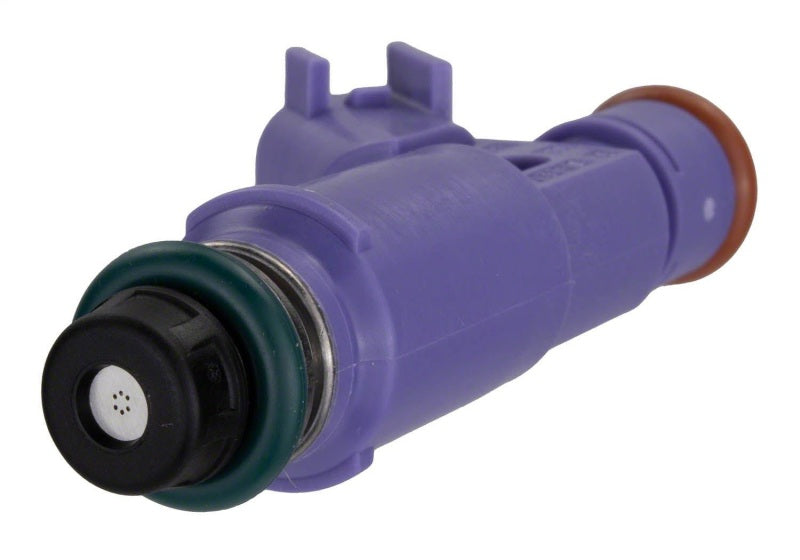

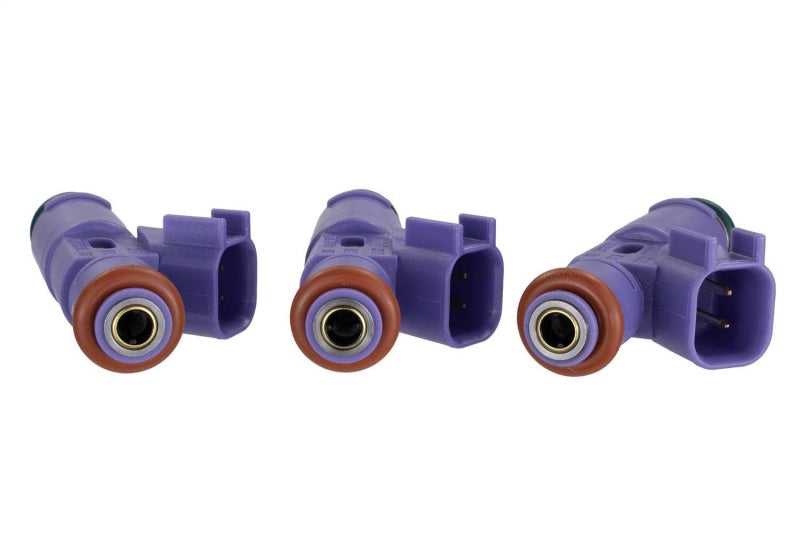

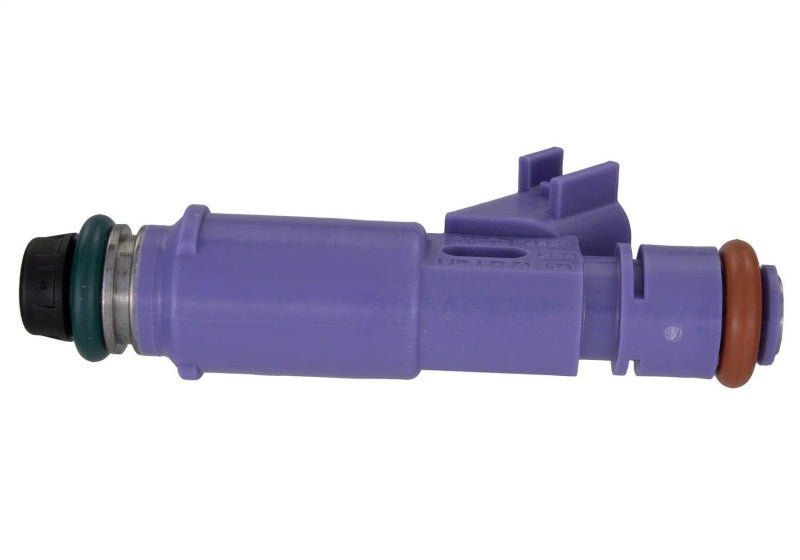

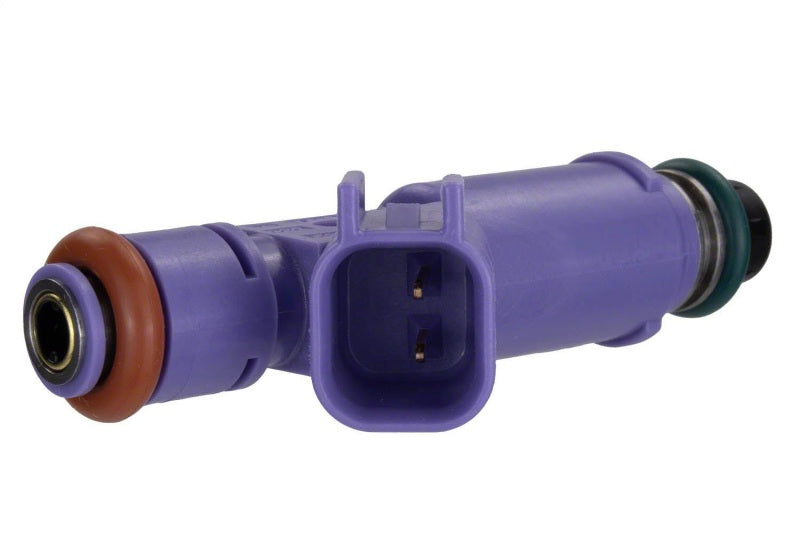

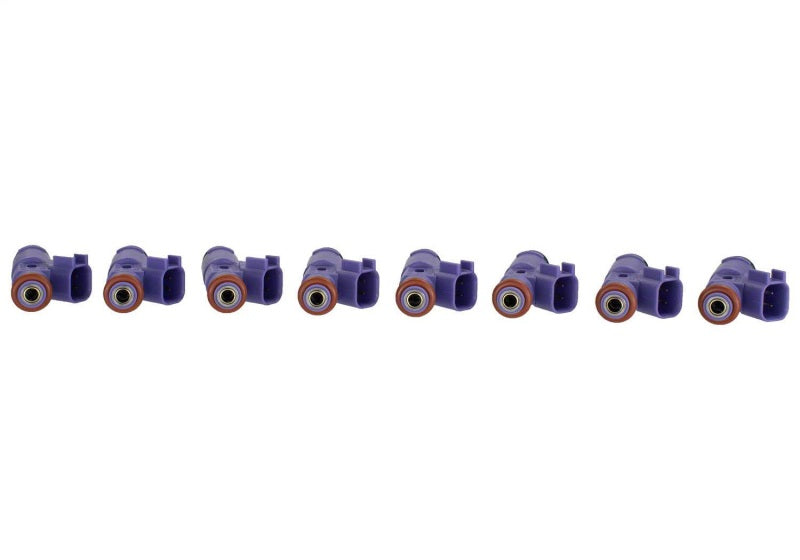

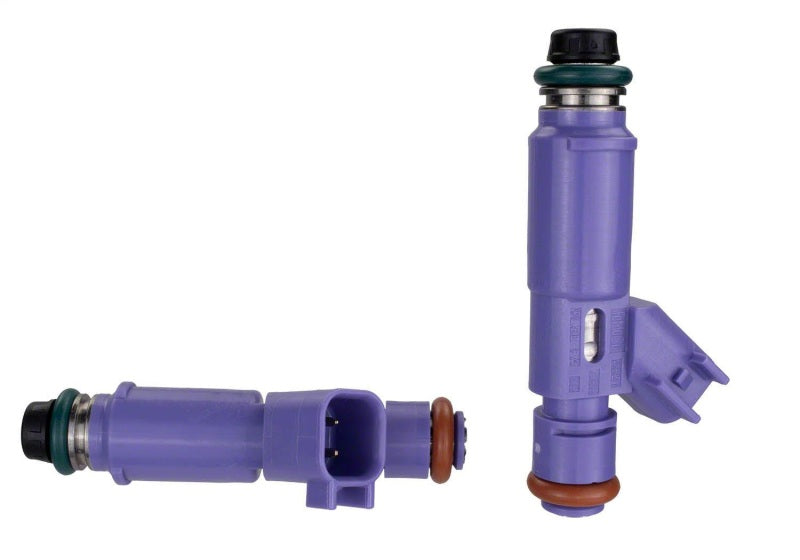

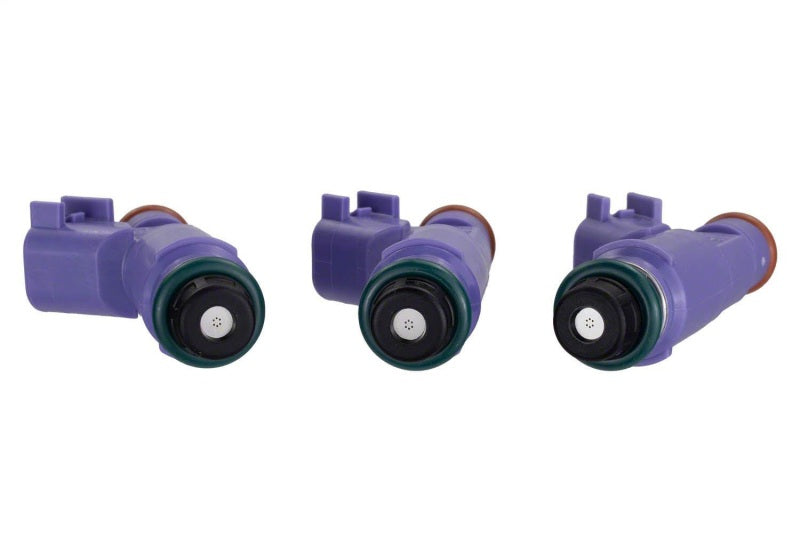

Ford Performance Parts 24 LB/HR Fuel Injector Set
FORD RACING 24 LB/HR FUEL INJECTOR SET
Overview
- 24 lb/hr, 6-hole, high-impedance fuel injector with USCAR electrical connector.
- Latest technology injector design for optimum performance.
INJECTOR NOTES:
- The long injectors are the more common length and are applicable to all non-GT500 Mustangs since multi-port injection was introduced
- Wrong electrical connector for your application? Try our M-14464-A8 Fuel Injector Adapter Kit
- Need help determining which injector you require for your application? Refer to EFI Tech Tips
About electrical connectors:
- The USCAR connector is sometimes referred to as EV6, which is a Bosch term for the generation of injector.
- Jetronic is the older style connector, sometimes referred to by the Bosch generation EV1.
- Neither EV1 or EV6 is technically correct because those generations of Bosch injectors could come with either connector. However, most EV1's commonly seen use the Jetronic connector and most EV6's use the USCAR connector so it's easy to see the connection.
Fuel Injector Chart:
| PART NUMBER (SETS OF 8) | FLOW RATE | IMPEDANCE | LENGTH | CONNECTOR | ADAPTER | COLOR |
|---|---|---|---|---|---|---|
| M-9593-LU24A | 24 lbs/hr. | 11-18 ohms | L | USCAR | M-14464-A8 |
Purple |
| M-9593-MU32 | 32 lbs./hr. | 11-12 ohms | M | USCAR | M-14464-A8 | Black w/red stripe |
| M-9593-LU34K | 34 lbs./hr. | 11-18 ohms | L | Jetronic/Minitimer | INCLUDED | Black |
| M-9593-LU34A | 34 lbs./hr. | 11-18 ohms | L | USCAR | M-14464-A8 | Black |
| M-9593-M39 | 39 lbs/hr. | 11-18 ohms | L | USCAR | M-14464-A8 | Dark Blue |
| M-9593-G302 | 47 lbs/hr. | 11-18 ohms | M | USCAR | M-14464-A8 | Black w/yellow stripe |
| M-9593-LU47 | 47 lbs/hr. | 11-18 ohms | L | USCAR | M-14464-A8 | Black w/silver tip |
| M-9593-LU60 | 60 lbs/hr. | 11-12 ohms | L | USCAR | M-14464-A8 | Black |
| M-9593-LU80 | 80 lbs/hr. | 11-12 ohms | L | USCAR | M-14464-A8 | Black w/blue tip |
| M-9593-MU52 | 52 lbs/hr. | 11-18 ohms | M | USCAR | M-14464-A8 | Black |
Part Type: Electrical: Fuel Metering
Warranty Availability: Not Available
Packaged Dimensions: 6.25" x 3.75" x 4.25
Packaged Weight: 1.1 lb(s)
UPC Code: 756122226759
Catalog Page Number: 223
Country of Origin: United States
Ford Performance Parts 24 LB/HR Fuel Injector Set
Sale price$273.85 USD
Regular price$375.00 USD
