Flexalite Extruded Core Radiator & Electric Fan 99-04 Full Size 1/2-Ton GM Truck
Flex-A-Lite® Extruded Core Technology is the future of performance aluminum radiators, replacing multi-core radiators with a new advanced design. Flex-A-Lite® Extruded Core Radiators provide significantly better cooling with a stronger, more durable and lighter design.

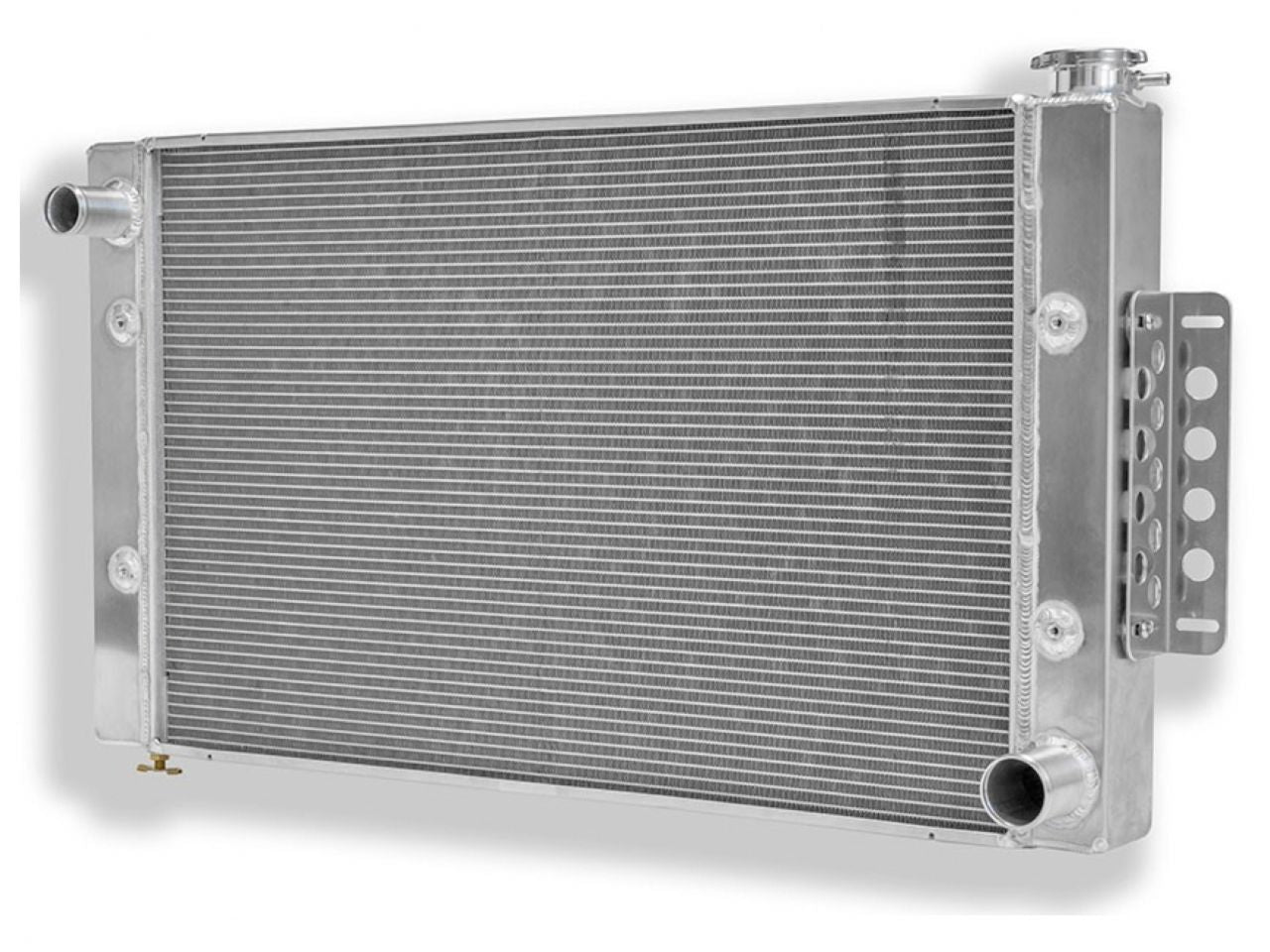

This direct-fit radiator is engineered to bolt into a 1999-2004 full-size 1/2-ton Chevrolet or GMC truck or SUV. No cutting or drilling is required for installation, and the radiator will mount using the factory location and equipment. Includes a fully-shrouded dual-fan system that moves 4,600 cfm of airflow and a Variable Speed Controller. Radiator includes 22-24 lbs. cap and train petcock.
Key features and benefits of the Flex-A-Lite® Extruded Tube Core Radiators include:

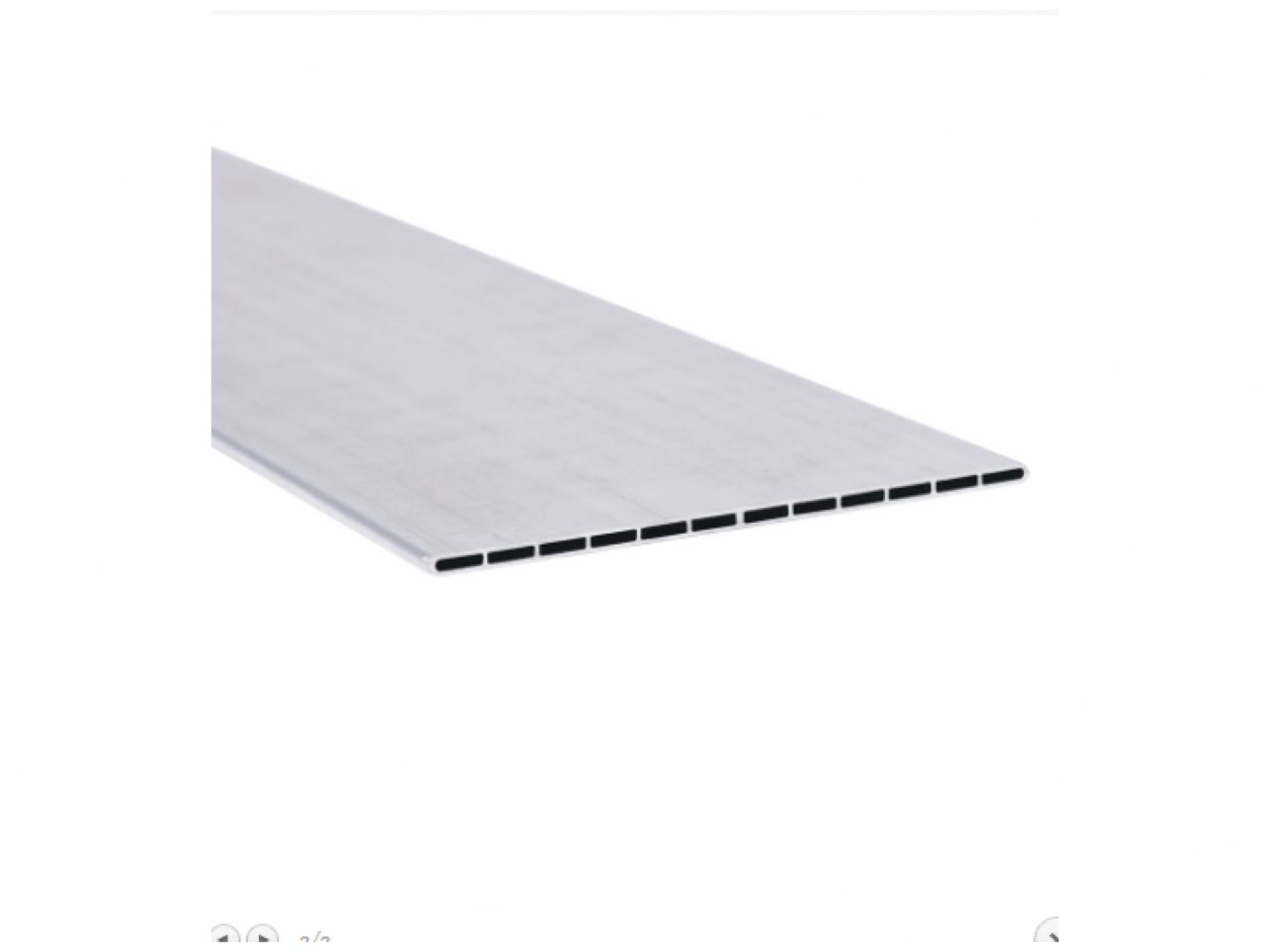

- Increased contact area between the coolant and aluminum tubes for better heat rejection and cooling
- A flat surface on which to braze the cooling fins, maximizing the contact between the tubes and fins for increased heat rejection and better cooling

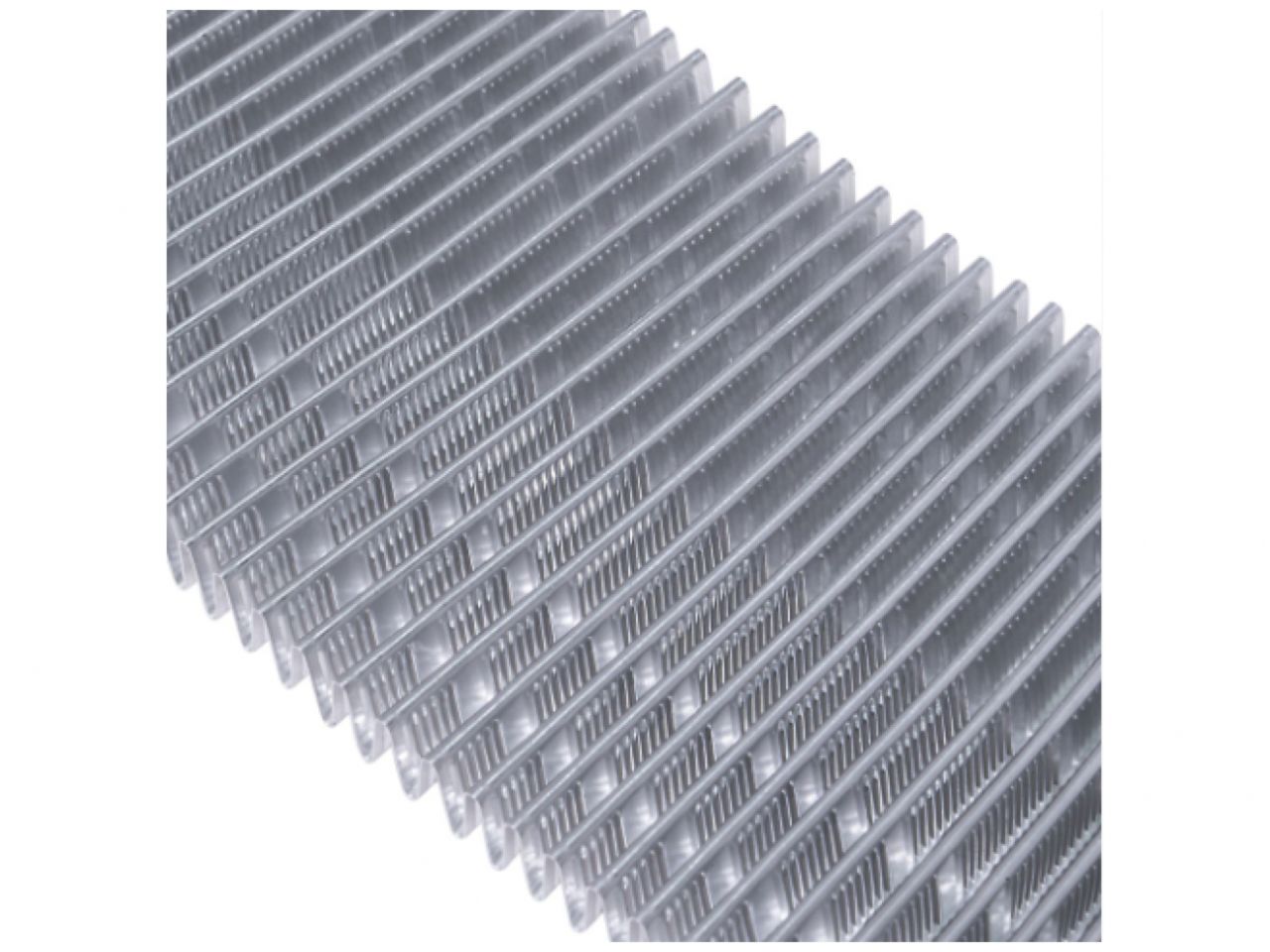

- The cooling fins have been designed with louver patterns cut into them to direct airflow, improving heat rejection and cooling
- Wind-tunnel testing has shown that this Extruded Tube Core technology is significantly more efficient for cooling than standard tube radiators
- The Flex-A-Lite® Extruded Tube Core Radiators are significantly stronger and have a 100-psi burst rating
- The Flex-A-Lite® Extruded Tube Core Radiators include a corner subhead, reinforcing the cooling tube to header connection, an area prone to cracking and leaking in other brands of aluminum radiators
SPECIFICATION
Height (inches): 18.5
Width (inches): 34.63
Depth (inches): 6.54
Depth (rounded up): 7 in.
Inlet Side: Driver Side
Air Flow (cfm): 4,600
Fan Diameter (inches): Dual 13.5
Number of Blades: 8
Amperage Draw: 28
Fuse Rating (amp): 40
Year: 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Make: CHEVROLET, GMC
Model: Sierra 1500
Engine: No
Displacement CID: No
Liters: No
Fitment Notes: No
