Tomei Expreme Exhaust Manifold | Toyota 86, GR86, FR-S, Subaru BRZ | FA20 Equal Length with Titan Exhaust Bandage
EXHAUST MANIFOLD EXPREME 86/FR-S/BRZ FA20 EQUAL LENGTH
Key Features
- Equal Length 4-2-1 Design – Optimized for balanced exhaust pulses and maximum power gains
- Lightweight SUS304 Stainless Steel – Durable, high-quality construction for longevity
- Enhanced Exhaust Flow – Reduces backpressure and improves throttle response
- Complete Installation Kit – Includes all gaskets, bolts, nuts, and a Titan exhaust bandage for heat protection
- Direct Bolt-On Fitment – Designed specifically for FA20-powered vehicles

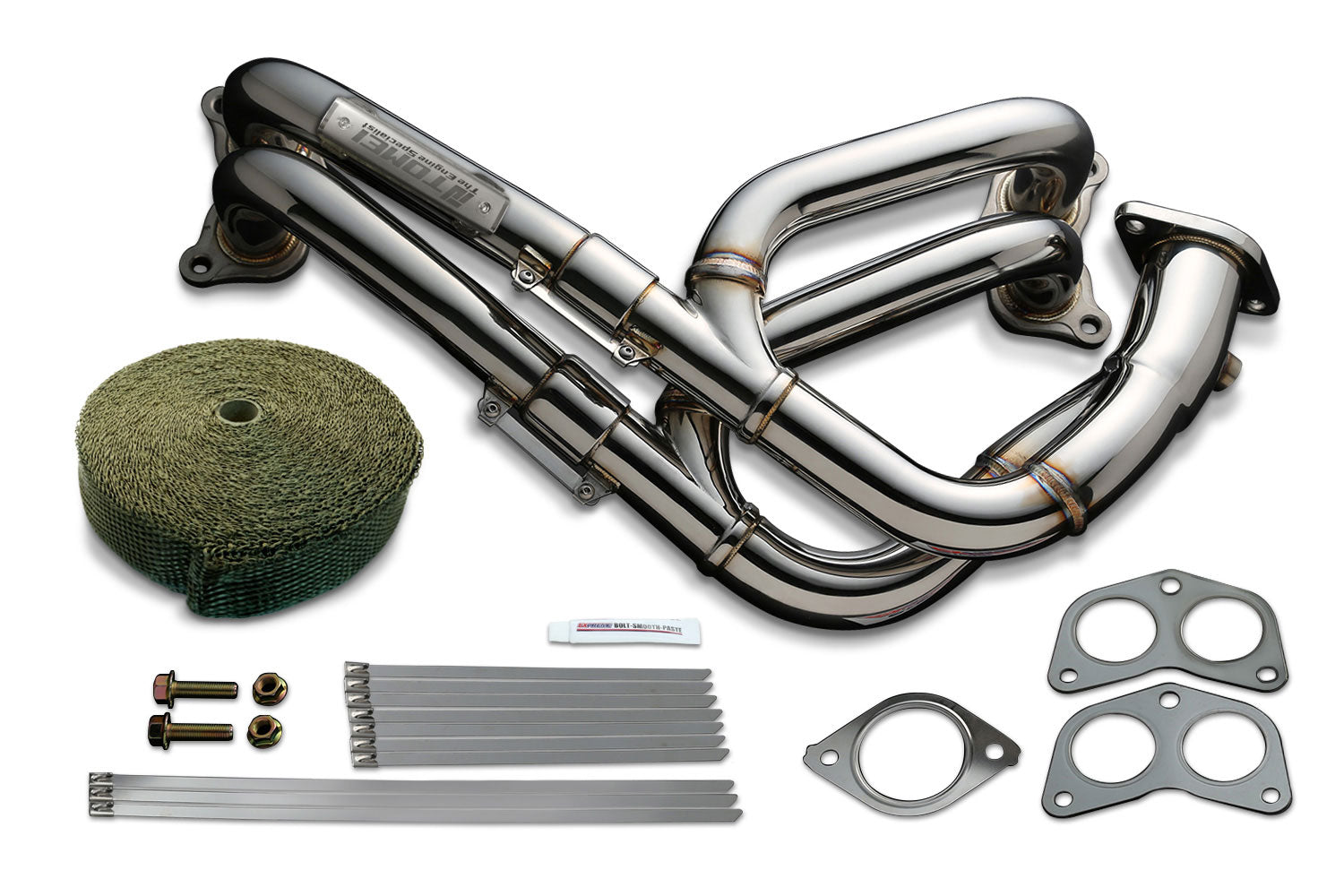

What’s Included in the Kit
- Exhaust manifold
- Engine-side gaskets (2)
- Joint pipe-side gasket (1)
- Flange bolts (2) and flange nuts (2)
- Titan exhaust bandage and 10 bandage bands
- Bolt smooth paste for secure installation
Fitment
- Engine: Toyota FA20 / Subaru FA20
- Vehicles: Subaru BRZ, Toyota 86, Scion FR-S
Shipping Details
- Dimensions: 29 x 8 x 16 inches (72 x 19 x 39 cm)
- Weight: 22 lbs (10 kg)
TOMEI EQUAL LENGTHSTOCK
|
|
MATERIAL | LAYOUT | PIPE DIAMETER（Φ） |
PIPE THICKNESS (mm) |
FLANGE THICKNESS (mm) |
WEIGHT (kg / lbs) |
|||
| Port exit - 1st juncture |
Port exit - 1st juncture |
2nd juncture - joint pipe |
Front | Rear | |||||
| TOMEI EQUAL LENGTH |
SUS304 | 4-2-1 | 42.7 | 45.0 | 60.5 | 1.5 | 12.5 | 12.5 | 6.45 / 14.22 |
| TOMEI UNEQUAL LENGTH |
SUS304 | 4-1 | 42.7 | - | 60.5 | 1.5 | 12.5 | 12.5 | 6.85 / 15.1 |
| OEM | - | 4-2-1 | 42.7 | 45.0 | 51.2 | 1.5 | 9.0 | 10.0 | 9.2 / 20.28 |
EXHAUST MANIFOLD EXPREME 86/FR-S/BRZ FA20 UNEQUAL LENGTH
Key Features
- Unequal length design – Produces the deep, aggressive boxer rumble
- Optimized for FA20 engines – Enhances torque and power throughout the rev range
- Precision-engineered stainless steel construction – Lightweight and durable for long-lasting performance
- Bolt-on fitment – Includes all necessary gaskets, bolts, and accessories for hassle-free installation
- Titan exhaust bandage included – Protects surrounding components from heat exposure
What’s Included
- Tomei Expreme Unequal Length Exhaust Manifold
- Engine-side gaskets (2)
- Joint pipe-side gasket (1)
- Flange bolts and nuts
- Titan exhaust bandage with securing bands
- Bolt smooth paste
Vehicle Fitment
- Toyota 86 / GT86 / GR86 (FA20 Engine)
- Subaru BRZ (FA20 Engine)
- Scion FR-S (FA20 Engine)
Shipping Details
- Dimensions: 29 x 8 x 16 inches (72 x 19 x 39 cm)
- Weight: 23 lbs (11 kg)
TOMEI EQUAL LENGTHSTOCK
|
|
MATERIAL | LAYOUT | PIPE DIAMETER（Φ） |
PIPE THICKNESS (mm) |
FLANGE THICKNESS (mm) |
WEIGHT (kg / lbs) |
|||
| Port exit - 1st juncture |
Port exit - 1st juncture |
2nd juncture - joint pipe |
Front | Rear | |||||
| TOMEI UNEQUAL LENGTH |
SUS304 | 4-1 | 42.7 | - | 60.5 | 1.5 | 12.5 | 12.5 | 6.85 / 15.1 |
| TOMEI EQUAL LENGTH |
SUS304 | 4-2-1 | 42.7 | 45.0 | 60.5 | 1.5 | 12.5 | 12.5 | 6.45 / 14.22 |
| OEM | - | 4-2-1 | 42.7 | 45.0 | 51.2 | 1.5 | 9.0 | 10.0 | 9.2 / 20.28 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Base, Premium, Sport-tech, Limited |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Base, Special Edition |
Tomei Expreme Exhaust Manifold | Toyota 86, GR86, FR-S, Subaru BRZ | FA20
Sale price$710.00 USD
Regular price$790.00 USD
