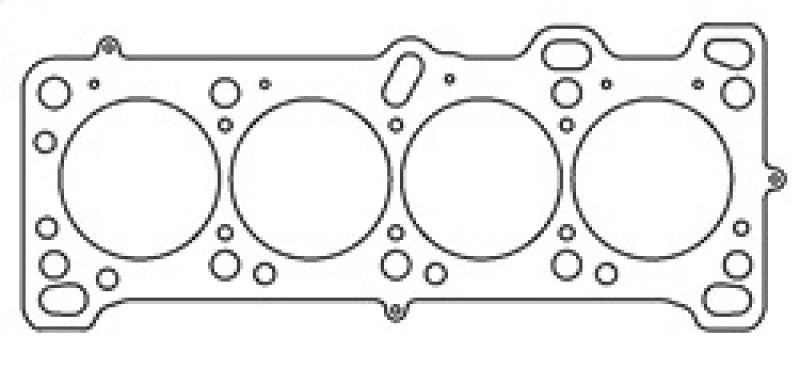

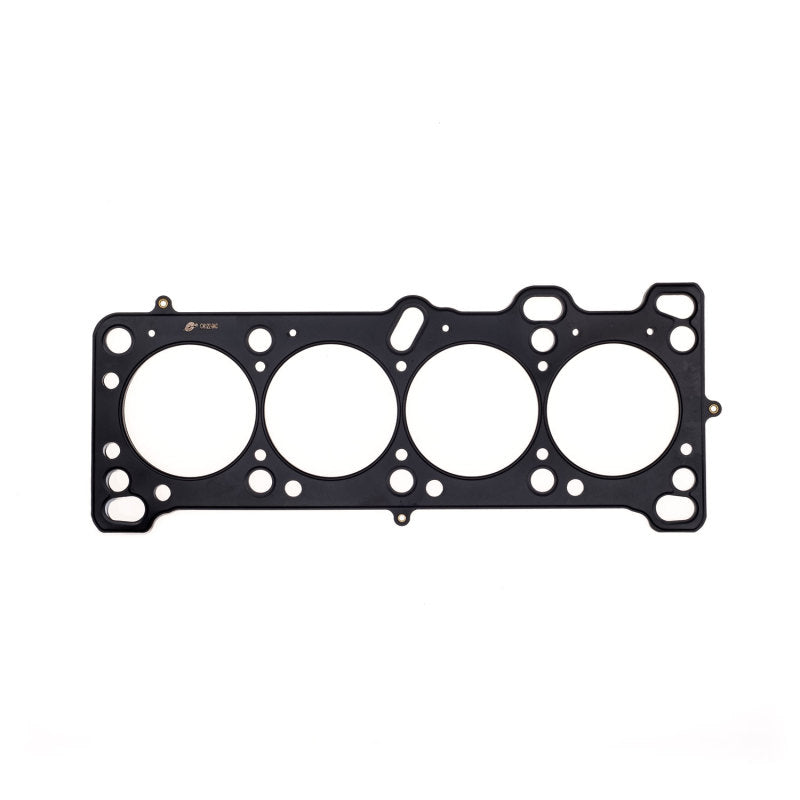

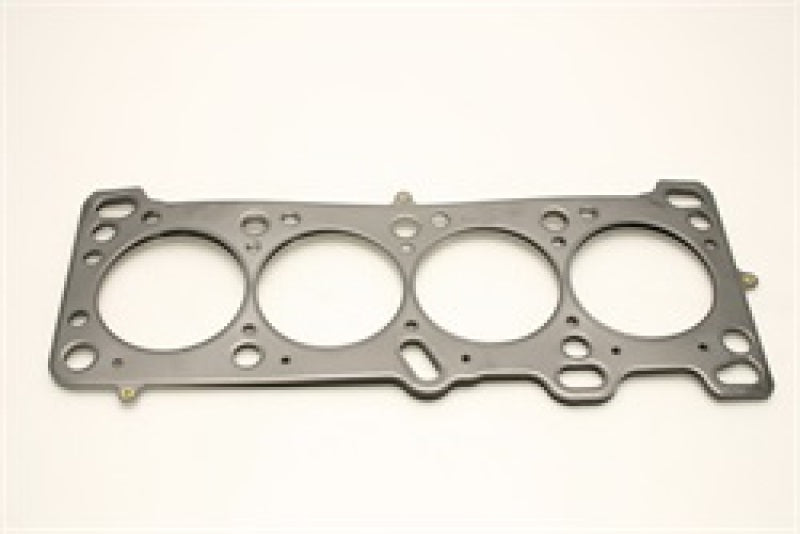

Cometic 0.030" MLS Head B6D Motor 1989-93 Mazda B6D 1.6L 80mm Gasket Bore

Mazda B6D 1.6L 1989-93 1597cc 80mm MLS Head Gasket.Comprised of mulitple embossed layers of stainless steel with the outer layers utilizing a viton rubber coating.Compressed operating thickness is .030".Each

Description

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Vehicle Applications

Import Auto Mazda B6D 1.6L 1989-93 1597cc
1994 Mercury Capri 1.6 L 4
1993 Mazda Miata 1.6 L 4
1993 Mercury Capri 1.6 L 4
1992 Mazda Miata 1.6 L 4
1992 Mercury Capri 1.6 L 4
1991 Mazda Miata 1.6 L 4
1991 Mercury Capri 1.6 L 4
1990 Mazda Miata 1.6 L 4
1989 Mazda 323 1.6 L 4
1988 Mazda 323 1.6 L 4

Vehicle Fitments:
