Advance Adapters Chevy V8 & V6 to Jeep Wrangler AX5 5 speed adapter bellhousing kit.

Advance Adapter

This kit is designed to work with the GM 153T flywheel.

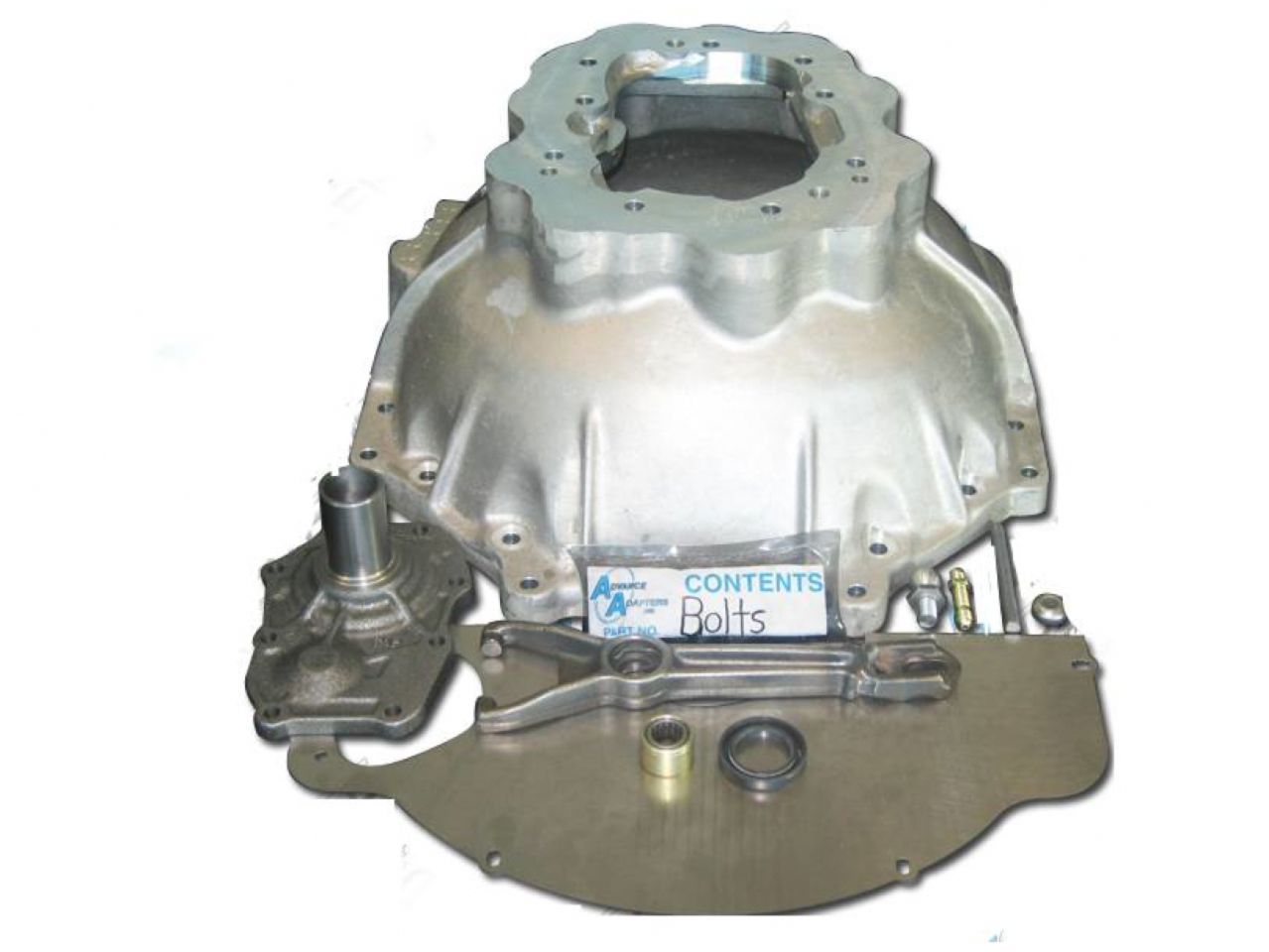

This adapter bellhousing assembly is used to adapt the GM 4.3, V8 to the Jeep AX5, 5 speed manual transmissions. The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, AX5 bearing retainer assembly, seal, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware, and adapter instructions.

Note: Late model 4.3 V6 with an aluminum oil pan must use a 168th flywheel (CF700160) and will require starter 22-0001. Please use kit 712565V.

Note: This kit is not intended for use with any LS engine.

Transmission

The AX5 was used in 1985-2002 model years. It has a overall length of 22.50”. The output shaft is a 21 spline count with a flush stickout up to 1996 models years. And switch to a .500” stickout past the tailhousing in 1997 & newer Jeeps.

Required Clutch Options

P/N 716213 Slave Cylinder

P/N 716104 10.5” Clutch Disc

P/N N1430 Throw-Out Bearing

P/N CF360056 10.5” Pressure Plate
