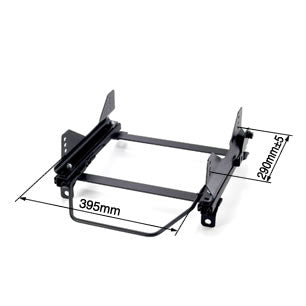

Bride Seat Rail for Toyota Celica 93-99 ST20# FO / LEFT
Super Seat Rail Compatibility Guide
BRIDE's Super Seat Rails provide high rigidity and precision, and are fully handmade in Japan. Below you'll find detailed compatibility information to ensure you select the correct rail type for your seat model.
Note: This matching list is primarily intended for vehicles that have been sold in Japan.
BRIDE Seats Compatibility
| Seat Model | Compatible Rail Types | Notes |
|---|---|---|
| GIAS, GIAS II, GIAS III (LOWMAX) | LR type (LOW MAX series dedicated) / RO type | If the vehicle has a dedicated LOWMAX series rail available, please use the dedicated LR type for optimal fit |
| STRADIA, STRADIA II, STRADIA III (LOWMAX) | LR type (LOW MAX series dedicated) / RO type | If the vehicle has a dedicated LOWMAX series rail available, please use the dedicated LR type for optimal fit |
| BRIX II, ERGO II, XAX II | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
| CUGA, VORGA | RO, RB, RK type | For SILVIA, SKYLINE, RX-8, FAIRLADY Z33, MR-S models, dedicated CUGA type-HL will only be fitted with VORGA type-HL and HL type seat rail combination |
| CUGA TYPE-HL, VORGA TYPE-HL | HL type | For SILVIA, SKYLINE, RX-8, FAIRLADY Z33, MR-S models, dedicated CUGA type-HL will only be fitted with VORGA type-HL and HL type seat rail combination |
| EURO II, EURO II CRUZ, EUROSTER, EUROSTER CRUZ, EUROSTER II, EUROSTER II CRUZ, DIGO, DIGO TYPE-R, DIGO II, DIGO II TYPE-R, DIGO II LIGHT, BRIX, ERGO II, XAX, REVS | MO, MB, MK, YO, YZ type | |
| VIOS III (LOWMAX), VIOS III TYPE-R, ZIEG III (LOWMAX), ZIEG III TYPE-R, MAXIS III (LOWMAX) | LF type (Exclusively for LOW MAX) / F series | If the vehicle has a dedicated LOWMAX series rail available, please use the dedicated LF type for optimal fit |
| ZODIA (LOWMAX) | ZF type | Only seat and seat rail for Honda Beat, Suzuki Cappuccino, Lotus Elise |
| ZETA II, ZETA III, ZETA II NEOS, VIOS II, EXAS II, EXAS III, ARTIS II, ARTIS III, ARTIS II NAVI, ZETA II TYPE-S, ZETA III TYPE-S, ZETA II TYPE-L, ZETA III TYPE-L | F series | |

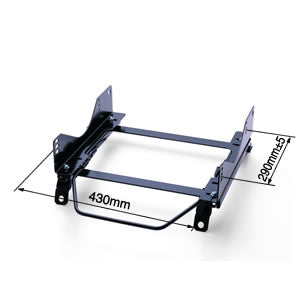

| ZETA III TYPE-XL | XL type | |
| DINOS II, GARDIS II, GARDIS III, MAXIS, ZEROS | F series | |
| PROS | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
RECARO Seats Compatibility
| Seat Model | Compatible Rail Types | Notes |
|---|---|---|
| SR series | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
| L series (Excluding the electric-type) | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
| AM19 series | Cannot be installed | |
| C-Classic, CT, CS series, D series | Cannot be installed | |
| SPG | F series | |
| SPGN | RO, RB, RK type + import side stay | The import side stay cannot be installed to the RX type |
SPARCO Seats Compatibility
| Seat Model | Compatible Rail Types | Notes |
|---|---|---|
| TORINO (STAR2), MILANO (SPORTIVO), SPEED, SPRINT | MO, MB, MK type | |
| CORSA, REV II, PRO 2000, EVO | RO, RB, RK type + import side stay | The import side stay cannot be installed to the RX type |
| SUPER SPORT (290 x 290mm) | Cannot be installed |
Other Brands Compatibility
| Brand/Seat Model | Compatible Rail Types | Notes |
|---|---|---|
| GULL | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
| D&W | RO, RB, RK/RX type | Please use RX or MO type only when RO/RB/RK types cannot be configured (For TOYOTA MR-S, NISSAN SKYLINE, SILVIA, 180SX, LAUREL, CEFIRO) |
Vehicle-Specific Height Change and Offset Information
BRIDE Super Seat Rails provide precise adjustments for various vehicle models, ensuring optimal seating position and comfort. Below are the detailed specifications for LR and LF type rails:
LR Type Rail Height Changes & Offsets
| Vehicle Model | Product Number | Model Code | Year Range | Specification | GIAS II/STRADIA II + LR type | GIAS II/STRADIA II + RO type | DIGO III LIGHT + MO type | EUROSTER II + MO type |
|---|---|---|---|---|---|---|---|---|
| EUNOS ROADSTER MAZDA ROADSTER |
Right R001LR Left R002LR |
NA,NB,#CE | '89/9 - | Change of height | -50mm | -30mm | -20mm | +5mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | Move to door side 15mm | ||||
| MAZDA ROADSTER | Right R003LR Left R004LR |
NCEC | '05/8 - | Change of height | -45mm | -25mm | -15mm | +10mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | Move to door side 15mm | ||||
| MAZDA ROADSTER | Right R005LR Left R006LR |
ND5RC | '15/5 - | Change of height | -25mm | -20mm | +-0mm | +25mm |
| Offset from steering center | Move to door side 20mm | Move to door side 20mm | Move to door side 20mm | Move to door side 20mm | ||||
| RX-7 | Right R039LR Left R040LR |
FD3S | '91/10 - '02 | Change of height | -50mm | -30mm | -20mm | ---- |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | |||||
| RX-8 | Right R045LR Left R046LR |
SE3P | '03/5 - | Change of height | -50mm | -40mm | -30mm | -5mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | Move to door side 15mm | ||||
| SILVIA/180SX | Right N301LR Left N302LR |
S13, S14, S15 | '88/5 - '02 | Change of height | -30mm | ---- | -25mm | +-0mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | |||||
| SKYLINE | Right N303LR Left N302LR |
R32, R33, R34(4WD) | '89/9 - '02 | Change of height | -30mm | ---- | -25mm | +-0mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | |||||
| S2000 | Right H151LR Left H152LR |
AP1 | '99/4 - | Change of height | -30mm | ---- | -10mm | +15mm |
| Offset from steering center | 0 | 0 | 0 | |||||
| BEAT | Right H013LR Left Cannot be configured |
PP1 | '91/5 - '96 | Change of height | -30mm | ---- | ---- | ---- |
| Offset from steering center | 0 | |||||||
| S660 | Right H051LR Left H052LR |
JW5 | '15/4- | Change of height | -40mm | ---- | +-0mm | ---- |
| Offset from steering center | 0 | Move to door side 25mm | ||||||
| MR-S | Right T051LR Left T052LR |
ZZW30 | '99/10 - | Change of height | -35mm | ---- | -10mm | +15mm |
| Offset from steering center | 0 | Move to door side 10mm | Move to door side 10mm | |||||
| PORSCHE* | Right G017LR Left G018LR |
993, 964 | '93/10 - | Change of height | -50mm | -25mm | -15mm | +10mm |
| Offset from steering center | Move to door side 30mm | Move to door side 30mm | Move to door side 30mm | Move to door side 30mm | ||||
| COPEN | Right D041LR Left D042LR |
L880K | '02/6 - | Change of height | -30mm | +5mm | +10mm | ---- |
| Offset from steering center | 0 | Move to door side 5mm | Move to door side 5mm | |||||
| COPEN | Right D043LR Left D044LR |
LA400K | '14/6 - | Change of height | -10mm | ---- | ---- | ---- |
| Offset from steering center | 0 |
*When you install GIAS II, bodyshell (console box side) and thigh part of seat may interfere.
LF Type Rail Height Changes & Offsets
| Vehicle Model | Product Number | Model Code | Year Range | Specification | VIOS III, ZIEG III, MAXIS III + LF type | ZODIA + ZF type | VIOS III, ZIEG III, MAXIS III + FO(FG) type | ZETA III, EXAS III + FO(FG) type |
|---|---|---|---|---|---|---|---|---|
| EUNOS ROADSTER MAZDA ROADSTER |
Right R001LF Left R002LF |
NA, NB, #CE | '89/9 - '05/7 | Change of height | -50 to -80mm | ---- | -30 to -50mm | -20mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm* | |||||
| MAZDA ROADSTER | Right R003LF Left R004LF |
NCEC | '05/8 - | Change of height | -45mm | ---- | -35mm | -30mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm* | |||||
| MAZDA ROADSTER | Right R005LF Left R006LF |
ND5RC | '15/5 - | Change of height | -25mm | ---- | -20mm | -20mm |
| Offset from steering center | Move to door side 20mm | Move to door side 20mm | Move to door side 20mm | |||||
| RX-7 | Right R039LF Left R040LF |
FD3S | '91/10 - '02 | Change of height | -50 to -80mm | ---- | -30 to -50mm | -20mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm* | |||||
| RX-8 | Right R045LF Left R046LF |
SE3P | '03/5 - | Change of height | -50 to -80mm | ---- | -40 to -50mm | -30mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm* | |||||
| SILVIA/180SX | Right N301LF Left N302LF |
S13, S14, S15 | '88/5 - '02 | Change of height | -30 to -50mm | ---- | -40 to -50mm | -25mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | |||||
| SKYLINE | Right N303LF Left N302LF |
R32, R33, R34(4WD) | '89/9 - '02 | Change of height | -30 to -50mm | ---- | -40 to -50mm | -25mm |
| Offset from steering center | 0 | Move to door side 15mm | Move to door side 15mm | |||||
| S2000 | Right H151LF Left H152LF |
AP1 | '99/4 - | Change of height | -30 to -50mm | ---- | -20 to -40mm | -10mm |
| Offset from steering center | 0 | 0 | 0* | |||||
| BEAT | Right H013LF Left Cannot be configured |
PP1 | '91/5 - '96 | Change of height | -30mm | ---- | ---- | -5mm |
| Offset from steering center | 0 | Move to door side 15mm* | ||||||
| BEAT | Right H013ZF Left H014ZF |
PP1 | '91/5 - '96 | Change of height | -30mm | -40mm | ---- | ---- |
| Offset from steering center | 0 | 0 | ||||||
| S660 | Right H051LF Left H052LF |
JW5 | '15/4 - | Change of height | -40mm | ---- | ---- | ---- |
| Offset from steering center | 0 | |||||||
| MR-S | Right T051LF Left T052LF |
ZZW30 | '99/10 - '07/4 | Change of height | -35 to -55mm | ---- | -20 to -40mm | -10mm |
| Offset from steering center | 0 | Move to door side 10mm | Move to door side 10mm | |||||
| PORSCHE | Right G017LF Left G018LF |
993, 964 | '93/10 - | Change of height | -50mm | ---- | -25mm | -30mm |
| Offset from steering center | Move to door side 30mm | Move to door side 30mm | Move to door side 30mm | |||||
| ELISE/EXIGE | Right G061ZF Left G061ZF |
111# | '95 - | Change of height | ---- | +-0mm | ---- | ---- |
| Offset from steering center | 0 | |||||||
| CAPPUCCINO | Right S021ZF Left S022ZF |
EA#1R | '91/5 - '97/12 | Change of height | ---- | -60mm | ---- | ---- |
| Offset from steering center | 0 | |||||||
| COPEN | Right D041LF Left D042LF |
L880K | '02/6 - | Change of height | -30 to -50mm | ---- | +5 to -25mm | +10mm |
| Offset from steering center | 0 | Move to door side 5mm | Move to door side 5mm* | |||||
| COPEN | Right D043LF Left D044LF |
LA400K | '14/6 - | Change of height | -15mm | ---- | ---- | ---- |
| Offset from steering center | 0 |
*It can only install EXAS III.
Important Notes
- For BRIDE dedicated designs, problems that occur with third-party seat attachments cannot be accommodated at all.
- Depending on the vehicle type, seat position may not be lowered as expected.
- In some vehicle models, the shoulder part of the seat may interfere with the door.
- Vehicles equipped with Genuine RECARO Seat AM19 series cannot be installed with our rails (HONDA CIVIC EP3, ACCORD/TORNEO CL1, MITSUBISHI LANCER EVO 4-7, PAJERO EVO, ISUZU VehiCROSS).
- When installing GIAS II, be aware that the bodyshell (console box side) and thigh part of seat may interfere in some vehicle models.
- For LOWMAX series seats (GIAS/STRADIA), if there is a dedicated rail available for your vehicle, please use the dedicated LR or LF type for optimal fit and performance.
- RB Type seat rails are designed for equal height, whereas RK Type rails are designed with uneven height to accommodate different vehicle models.
Benefits of BRIDE Super Seat Rails
- High Rigidity and Precision: Fully handmade in Japan with attention to detail
- Vehicle-Specific Design: Engineered for specific vehicle makes and models
- Custom Positioning: Precise height adjustment and offset options for optimal driving position
- Enhanced Comfort: Properly positioned seating for reduced fatigue during extended driving
- Maximum Performance: Dedicated rail types (LR/LF) for LOWMAX series seats provide the lowest possible seating position

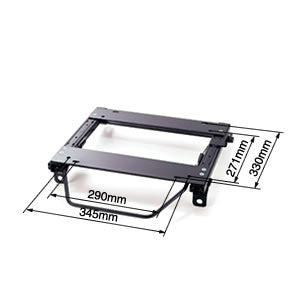

Bride Seat Rail for Toyota Celica 93-99 ST20#
Sale price$340.00 USD
