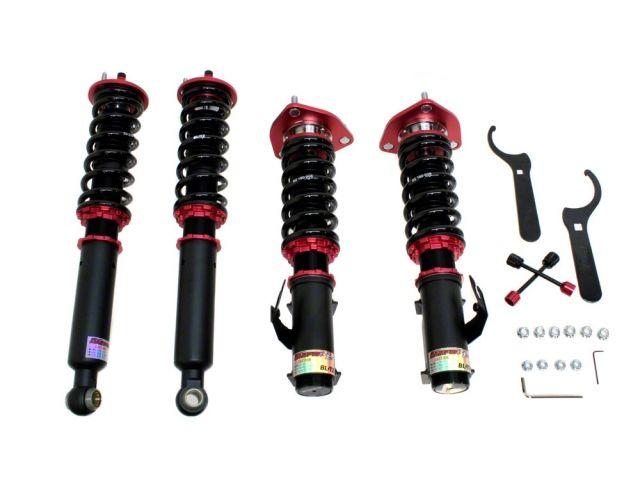

Blitz ZZ-R Coilover Kit Nissan Skyline Gt-R '89-95
Blitz ZZ-R Coilover Kit Nissan Skyline Gt-R '89-95
STRUCTURE:
A single mono tube design is adopted for the complete range. A large 44mm diameter low friction piston control initial damping, allowing a comfortable ride with a sharp driving response.
DRIVABILITY AND COMFORT:
A 32 way damping rate is incorporated into both shock absorbers. With such a wide range of adjustable, driving performance and ride comfort are maintained at the highest level, even at low speed. Spring rate is setup for each vehicle. A comfortable ride can be achieved with the height adjustment function which allows enough stroke for any driving conditions.
STYLING:
The spring sheet and upper mounts are finished in a red alumite. The brackets are finished in a classy matt black. The height adjustment function is shown in millimeters, allowing a wide range of setting to suit any driving conditions.
SETTING:
Preload adjustment of the spring and the height can be adjusted separately. A variety of damping rates can be achieved through simple adjustment. Camber adjustment allows alignment to be set to personal preference.
DURABILITY:
The cylinder case is finished in a black chrome overlay and the bracket is finished in a special point to improve durability and anti-corrosion.
OVERHAUL:
This damper can be overhauled to maintain prime condition.
STRUCTURE:
A single mono tube design is adopted for the complete range. A large 44mm diameter low friction piston control initial damping, allowing a comfortable ride with a sharp driving response.
DRIVABILITY AND COMFORT:
A 32 way damping rate is incorporated into both shock absorbers. With such a wide range of adjustable, driving performance and ride comfort are maintained at the highest level, even at low speed. Spring rate is setup for each vehicle. A comfortable ride can be achieved with the height adjustment function which allows enough stroke for any driving conditions.
STYLING:
The spring sheet and upper mounts are finished in a red alumite. The brackets are finished in a classy matt black. The height adjustment function is shown in millimeters, allowing a wide range of setting to suit any driving conditions.
SETTING:
Preload adjustment of the spring and the height can be adjusted separately. A variety of damping rates can be achieved through simple adjustment. Camber adjustment allows alignment to be set to personal preference.
DURABILITY:
The cylinder case is finished in a black chrome overlay and the bracket is finished in a special point to improve durability and anti-corrosion.
OVERHAUL:
This damper can be overhauled to maintain prime condition.
- A single mono tube shock absorber is adopted for all lineup
- 32 way adjustable damper rates
- Ideal for both street or circuit use.
- A large 44mm diameter piston is used (Some vehicles area excluded)
- This damper can be overhauled to maintain prime condition.
| Upper Mount | Spring Rate kgf/mm |
Length | Spring Type |
Adjustable Range | Adjustment Knob Extension |
|
|---|---|---|---|---|---|---|
| Front Rear |
Front Rear |
Front Rear |
Front Rear |
Front | Rear | |
| Reinforced Rubber Upper Mount Reinforced Rubber Upper Mount |
8.0 6.0 |
200 mm 220 mm |
ST ST |
-100 » -20 mm | -75 » -5 mm | 100mm |
Blitz ZZ-R Coilover Kit Nissan Skyline Gt-R '89-95
Sale price$800.00 USD
