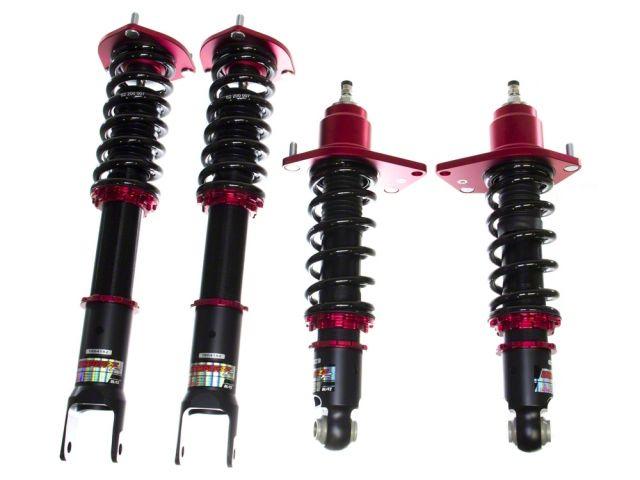

Blitz ZZ-R Coilover Kit Lexus RCF 14+ USC10

SKU: 0NUL4 | MPN:  92350
Sale price$840.00 USD
Sold out

Blitz ZZ-R Coilover Kit Lexus RC F 2014+




STRUCTURE:
A single mono tube design is adopted for the complete range. A large 44mm diameter low friction piston control initial damping, allowing a comfortable ride with a sharp driving response.

DRIVABILITY AND COMFORT:
A 32 way damping rate is incorporated into both shock absorbers. With such a wide range of adjustable, driving performance and ride comfort are maintained at the highest level, even at low speed. Spring rate is setup for each vehicle. A comfortable ride can be achieved with the height adjustment function which allows enough stroke for any driving conditions.

STYLING:
The spring sheet and upper mounts are finished in a red alumite. The brackets are finished in a classy matt black. The height adjustment function is shown in millimeters, allowing a wide range of setting to suit any driving conditions.

SETTING:
Preload adjustment of the spring and the height can be adjusted separately. A variety of damping rates can be achieved through simple adjustment. Camber adjustment allows alignment to be set to personal preference.

DURABILITY:
The cylinder case is finished in a black chrome overlay and the bracket is finished in a special point to improve durability and anti-corrosion.

WARRANTY:
This damper comes with a 1-year warranty.

  • A single mono tube shock absorber is adopted for all lineup
  • 32 way adjustable damper rates
  • Ideal for both street or circuit use.
  • A large 44mm diameter piston is used (Some vehicles area excluded)
Upper Mount Spring Rate
kgf/mm
Length Spring
Type
Adjustable Range (vs stock) Adjustment
Knob
Extension
Front / Rear Front /
Rear
Front /
Rear
Front / Rear Front Rear
Reinforced Rubber Upper Mount / Reinforced Rubber Upper Mount 9.0 / 8.0 200mm / 220mm ST / ST -80 ~ 0mm -39 ~ -2mm 200mm
