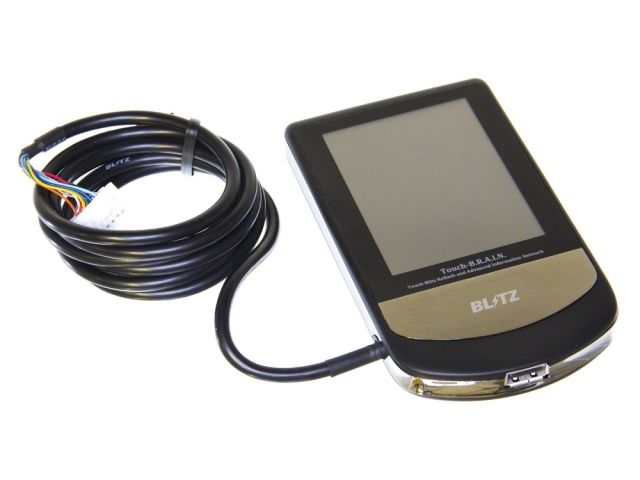

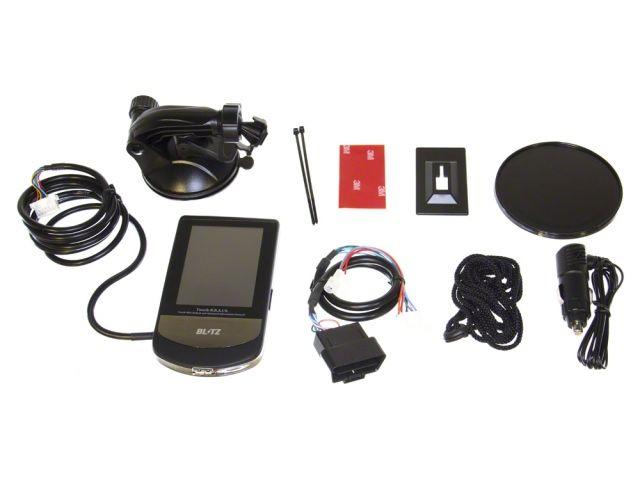

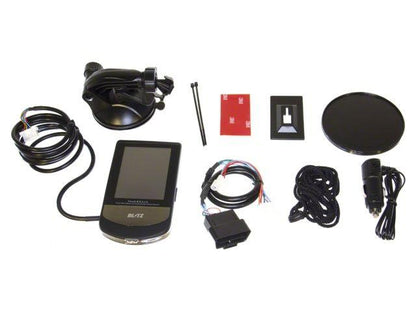

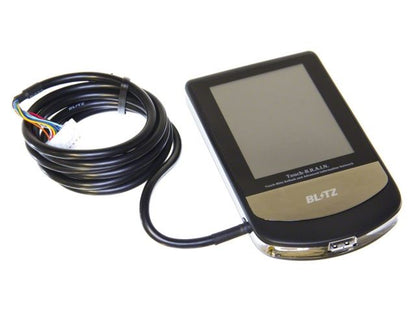

Blitz Touch-B.R.A.I.N. for 86/BRZ 0RQHQ

ONBOARD DIAGNOSTIS PORT (OBD-II) PLUG AND PLAY MONITORING:
The Blitz Touch-B.R.A.I.N. allows for plug-and-play monitoring of all onboard readouts from the vehicle ECU/ECM. This unit is specific for the 86/FRS/BRZ and can display up to 44 engine parameters.

CUSTOM DISPLAY TO MATCH ONBOARD GENUINE METER:
A custom display is adopted to match the OEM gauge cluster display.

TRC/VSC ONE TOUCH OFF:
To turn off traction control normally, a driver has to perform the "pedal dance" within 30 seconds of engine startup to be able to put the car into diagnostics mode. The Blitz Touch-B.R.A.I.N. has one-touch TRC/VSC cancellation that allows you to turn on/off traction control whenever the vehicle is stopped. This allows maximum flexibility with traction control without sacrificing engine monitoring capabilities.

STOPWATCH/TIMETRIAL FUNCTION:
Onboard stopwatch function allows you to measure target times and performance of the vehicle. The Time Trial function allows measurement of performance from standing start to the target, such as 0-400M, 0-1000M, and a target speed that you set.

DATALOG CAPABILITY:
The Blitz Touch-B.R.A.I.N. allows you to monitor and datalog up to 8 channels of vehicle parameters. Data can be exported via USB cable or MicroSD card (sold separately).

Displayed measures include: Gear position, Battery voltage, Fuel pressure, Catalyst temperature, Left and right G, Before and after G, Yaw rate value, Target air-fuel ratio, Actual air-fuel ratio, (A / F sensor), Knock correction learning value, Knock control value, Port I / J injection time, The total fuel injection quantity, Direct-injection I / J injection timing, Direct-injection I / J injection time, Brake fluid pressure, Brake pressure sensor voltage, The remaining amount of fuel, ATF oil temperature, Engine RPM, Vehicle speed, Ignition timing, Throttle opening, Engine cooling water temperature, Intake temperature, Outside air temperature, Engine oil temperature, Intake manifold pressure, Boost pressure, The amount of intake air (g / s), The amount of intake air%, Total I / J injection time (ms), Total I / J injection time (?s), power, torque, distance, Instantaneous fuel consumption, Average gas mileage, Integrated fuel consumption, Interval fuel consumption, Fuel consumption, Fuel bill, The actual air-fuel ratio (O2 sensor), O2 sensor voltage

EXTERNAL SENSOR INPUT CAPABLE:
With optional Sensor Junction Box, you can add up to 5 additional inputs via external sensors (sold separately). Boost, temperature, pressure, and A/F can be added.

DSC SUSPENSION INTEGRATION:
Input from Damper ZZ-R Spec DSC can be integrated into this unit as well. Suspension settings can be monitored and datalogged.

Vehicle Fitments:
