AIM MXS 0LKKD

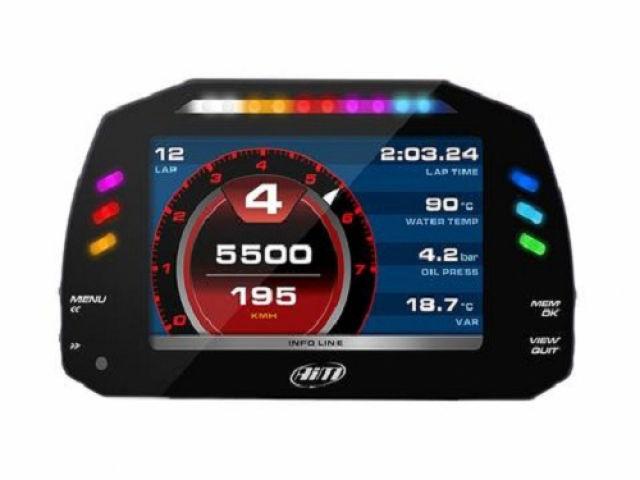

The Aim MXS 5" Compact Powerboat Dash Data Logger is specifically designed to be small and compact to acquire and display data from your powerboat engine ECU.This includes data from the internal accelerometer, gyro and from the GPS Module included in the kit.
Accurate, Powerful and Flexible is what makes the MXS the worlds best powerboat racing data logger for improving engine and driver performance.
The performance and data acquired can also be incremented by adding up to eight expansion modules.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
ECU Connection
Aim data systems acquire data from the ECU of your vehicle. The list of available ECU drivers, constantly updated and upgraded which are available to download from our support area which include over a 1,000 different ECUs, either Stock and Racing. They are sorted by manufacturer/vehicle model. For each ECU you find the proprietary communication protocols, including the standard OBDII ones.
From a hardware perspective, Aim systems manage the following data lines:
- CAN
- RS232
- K-Line
Analog/Digital Inputs
Aim systems analog inputs are recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- Thermo-resistances
- K-type thermocouples
and many others, all your custom sensors included.
Aim systems also feature digital inputs:
- Speed signals From the ECU, from the GPS and from the wheel sensors.
- RPM From the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal Lap and split times are sampled by the GPS or via optical receiver/transmitter.
Internal Accelerometer and Gyro
The internal three-axial accelerometer and the gyroscope provide the AiM systems a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.
Second CAN
An innovative AiM systems feature is its CAN2 line, managing data coming from your additional modules i.e. ABS, traction control, infrared temperature sensors and more. This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving rider performance.
High Contrast TFT Display
A high contrast TFT display identifies MXS at the first glance.
An ambient light sensor keeps the backlight at optimum brightness levels.
Freely Configurable Pages
