AIM MXL2 Data Logging Gauge Cluster W/ 4 Meter GPS Cable
AiM MXL2 Data Logging Gauge Cluster W/ 4 Meter GPS Cable
The AiM MXL2 is the new AiM dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS module included in the kit, analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules.
-
An all new high contrast LCD with an integrated graphical portion
-
A dual color backlight
-
6 configurable RGB alarm LEDs
-
A 10 RGB LED shift light array
-
WiFi connectivity
-
3 CAN connections
-
Connections with industry leading 500+ ECUs
-
A 3-axis accelerometer + gyroscope
- 8 analog inputs at a max 1000 Hz each
- 4 digital speed inputs
-
Coil RPM input
-
A lap signal input
-
2 digital outputs
-
Realtime fully configurable math channels
-
All this is housed in a waterproof aluminum
-
Chassis with sealed side mounted aluminum
-
Buttons for quick easy interaction.
Performance and data acquired can also be incremented adding up to eight expansion modules
You can define up to eight different custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Here, examples of pages with 1, 2, 3 or 4 different data and the track map

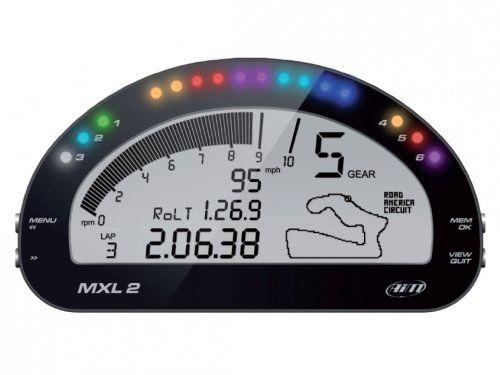

The MXL2 display features a high contrast traditional LCD, with a black to white ratio nearly double its predecessor, fused with a graphical LCD offering great flexibility in information display and alerts. Also now offers a dual colored backlight of high contrast white and red which can also be changed conditionally. An ambient light sensor keeps the backlight at optimum brightness levels.
Six different alarm LEDs: you choose the conditions, the colors and the flashing frequency. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, GPS information or math channels.You can also associate an alarm LED a message and a digital output with each event.
10 LED shift light array is found in the MXL2.
Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required.
- A wide range of data sources
- Freely configurable pages
- Sharp liquid cyrstal display
- Flexible Alarms
- Intergrated shift light array
- WiFi Connectivity
- Motorsprots Connectors
In The Box
- MXL2 Unit
- 37 pin standard harness
- GPS Module with 4 meter cable
- USB cable
- Software installation CD
