AIM MXL2 12C23
The Aim MXL2 Motocross and Motorcycle Dash Data Logger provides all the data needed by professional rider as well as beginners to improve the bike and rider performance. The MXL2 Dash Data logger has been designed with the aim to make configuration and usage smooth and easy either for amateurs and for people with sophisticated technical background.
A Wide range of data sources
The MXL2 Motocross Dash logger acquires and displays data coming from your engine ECU, the internal accelerometer and gyro, as well as from the GPS08 module included in the kit. It offers analog/digital inputs and predefined math channels. The performance and data acquired, can also be incremented adding up to eight expansion modules.
Add expansion modules via our built in CAN bus eg. GPS08, external Memory Modules, Channel Expansions, Lambda Controllers.
These are only some of the items that can be added to our MXL2 for incrementing the performance and the data acquired.
ECU Connection
Aim systems acquire data from the ECU of your vehicle. The list of available ECU drivers, constantly updated and upgraded, is published on our support site and includes over 1,000 different Stock and Racing ECUs. They are sorted by manufacturer/vehicle model. For each ECU you will find the proprietary communication protocols, including the standard OBDII ones.
From a hardware perspective, Aim systems manage the following data lines:
- CAN
- RS232
- K-Line
nalog/Digital Inputs
Aim systems analog inputs are recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- Thermo-resistances
- K-type thermocouples
- many others, all your custom sensors included.
Aim Systems also Feature Digital Inputs:
- Speed signals - From the ECU, from the GPS and from the wheel sensors.
- RPM - From the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal - Lap and split times are sampled by the GPS or via optical receiver/transmitter.
MXL2 Dash Second CAN
An innovative Aim systems feature is its CAN2 line, managing data coming from your additional modules (i.e. ABS, traction control, infrared temperature sensors and more...).
This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.
Internal Accelerometer and Gyro
The internal three-axial accelerometer and the gyroscope provide the AiM systems a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
Freely Configurable Pages
The Aim MXL2 Car Racing Dash logger allows you to define up to eight different custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.
Here, examples of pages with 1, 2, 3 or 4 different data:
Sharp liquid crystal

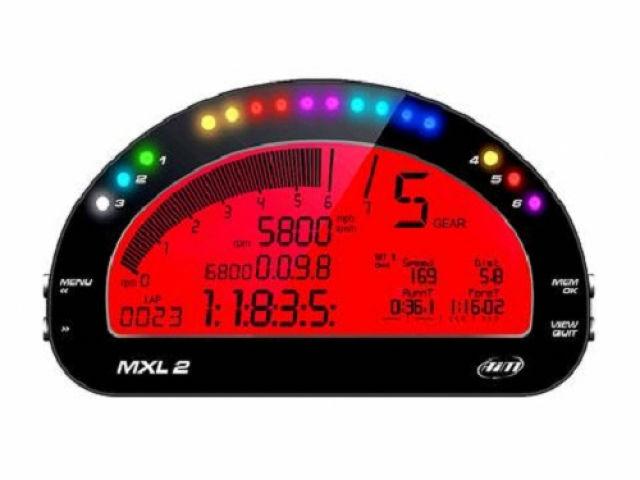

The MXL2 display features a high contrast traditional LCD, with a black to white ratio nearly double its predecessor, fused with a graphical LCD offering great flexibility in information display and alerts. The MXL2 now offers a dual colored backlight of high contrast white and red which can also be changed conditionally. An ambient light sensor keeps the backlight at optimum brightness levels.
Flexible Alarms
