ART Laser Bump Steer Gauge

SKU. 098PU    Part No. Laser Bump Steer Gauge

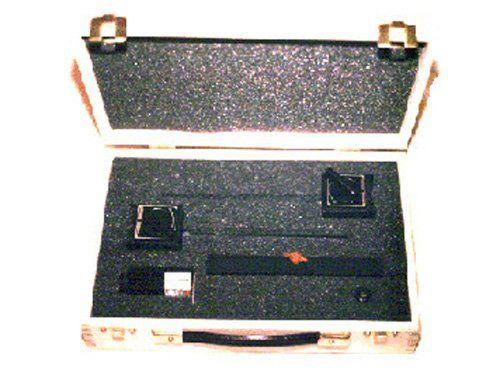

ART Laser Bump Steer Gauge Laser Bump Steer Gauge Image1

  • Overview

    Quick Info

    • Controlled variable accuracy

    • Compact design

    • Works on any vehicle

    Product Details

    ART Laser Bump Steer Gauge

    The laser beam is reflected off the mirror on to a surface or target behind the laser head. By increasing the distance of your target from the wheel, increases the accuracy. From here you simply move your suspension up and down to see the total horizontal movement of the laser beam. If the laser beam moves horizontally this indicates a change in toe. You then adjust your tie rod or steering rack position to produce the smallest movement of the laser beam, thus reducing bumpsteer. Simultaneously if you see the laser beam move vertically this represents a change in camber.

    Benefits & competition diferentiators:

    • The device accuracy is variable by increasing the target distance.
    • It is a compact unit, 1/2 the size of a attaché case.
    • Eliminates large bulky frame used with old school dial indicator style.
    • Eliminates those large specialized plates to be mounted to the hubs.
    • Works on any vehicle
    • No more confusing dial indicators.We just measure how far the laser beam spot moves.
    • Only gauge in the world that shows camber change due o bump.
    • The laser can be used for many other uses.
    • The precision of the unit never changes and is never affected by weather or temperature.
  • Specifications
    Dimensions
    Brand ART
    Part Number Laser Bump Steer Gauge
    Category Tools & Equipment ▸
    Tools ▸
    Chassis Setup ▸
    Bump Steer
    Item Code 098PU
    Length 12 in.
    Width 12 in.
    Height 5 in.
    Weight 5.00 lb.
    Created Thursday, February 21, 2013
    Last Updated Friday, December 21, 2018
