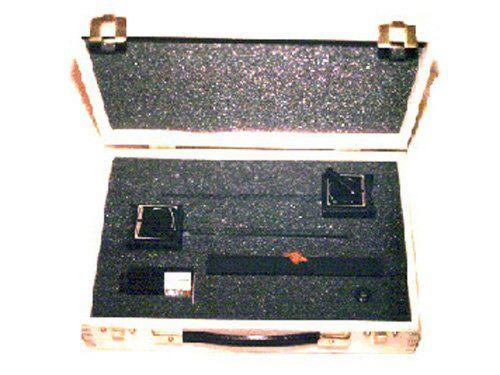

ART Laser Bump Steer Gauge
ART Laser Bump Steer Gauge
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyART Laser Bump Steer Gauge
The laser beam is reflected off the mirror on to a surface or target behind the laser head. By increasing the distance of your target from the wheel, increases the accuracy. From here you simply move your suspension up and down to see the total horizontal movement of the laser beam. If the laser beam moves horizontally this indicates a change in toe. You then adjust your tie rod or steering rack position to produce the smallest movement of the laser beam, thus reducing bumpsteer. Simultaneously if you see the laser beam move vertically this represents a change in camber.
Benefits & competition diferentiators:
- The device accuracy is variable by increasing the target distance.
- It is a compact unit, 1/2 the size of a attaché case.
- Eliminates large bulky frame used with old school dial indicator style.
- Eliminates those large specialized plates to be mounted to the hubs.
- Works on any vehicle
- No more confusing dial indicators.We just measure how far the laser beam spot moves.
- Only gauge in the world that shows camber change due o bump.
- The laser can be used for many other uses.
- The precision of the unit never changes and is never affected by weather or temperature.
