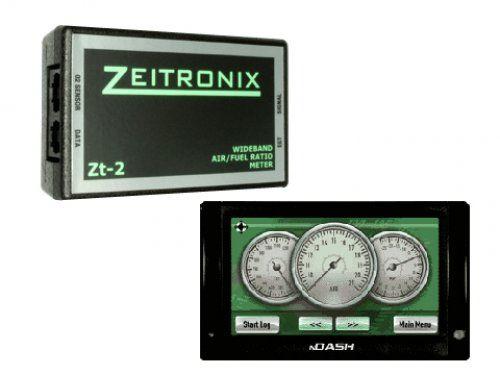

Zeitronix Zetronix ZT-2 with DashDaq Display
Zeitronix Zetronix ZT-2 with DashDaq Display
The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. Zt-2 Wideband Kits provide the best bang for your buck delivering unmatched quality, features and capabilities for very reasonable prices. Our system provides the accuracy of a Dyno Air/Fuel reading right in your vehicle as well as multiple engine parameters.
Supports Air/Fuel ratio as AFR/Lambda, plus RPM, Vacuum, Boost, Exhaust Gas Temperature, Throttle Position, 0-5 volt sensors, Air/Fluid temperature sensors and Oil/Fuel pressure sensors. Tune fuel injected and carbureted engines.
Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR! A simple LED indicator displays off, warm-up and running modes.
Zt-2 Specs
- 0.1 AFR accuracy
- Operating voltage 10V to 18V
- Switching power supply for oxygen sensor heater
- Precise sensor temperature control
- Reverse polarity protection
- Integrated self-resetting fuse
- Positive lock connectors
- Protected inputs and outputs
- Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
- Wideband Oxygen Sensor included
- Easy to install plug and play kit
- Adjustable Narrowband Switching Point
- Warning Alarms and Triggers
nDash DashDaq
- Zeitronix nDash display is Preconfigured for easy Plug and Play use with the Zt-2
- Display and data log AFR, RPM, EGT, Vacuum/Boost, TPS, and configurable User Inputs from one or two Zt-2s
- Run a Dual Zt-2 or Zt-3 configuration for left and right cylinder bank AFR values!
- 4.4" Touch-Screen offers 480x272 resolution using TFT LCD technology.
- 24-bit full color display with contrast ratio of 350:1
- Dimensions are 5" x 3" x 0.75", weight is only 0.5 lbs, (127mm x 77mm x 19mm, 275 grams)
- Full OBDII support for display of parameters such as Mass Air Flow, Spark Advance, Coolant Temperature, and many more! (OBDII is not required for use with the Zt-2.)
- Generic OBDII, Enhanced Ford, Chrysler and GM drivers.
- Data logging support onto removable memory card -- no laptop or PDA required.
- Auto Adjusting backlight, night mode, and low power standby.
- Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters.
- Diagnose and clear check engine light error codes.
- OBDII and Plug and Play Zeitronix Zt-2 cables included.
- N-Dash Zt-2 license included
- Simple and secure windshield-mounted display.
