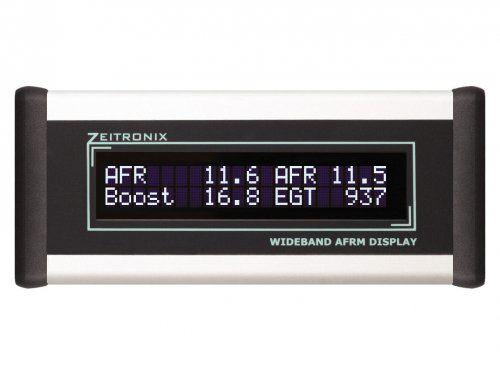

Zeitronix LCD Display - Silver Bezel

Zeitronix LCD Display - Silver Bezel

The Zeitronix LCD display is a versatile, easy to mount display for the Zeitronix Zt-2 Wideband System. The LCD display plugs in and powers up using a single 5 foot long wire connecting to the Zt-2 DATA port. There are no extra wires for power connections. The Zeitronix LCD display is available with either a silver or black aluminum case. Multiple display configurations can be created, including renaming the Zt-2's "User2" input text.  User2 text can be letters numbers or symbols and is not limited to the examples given above. See below for more details on the LCD display format.

The LCD display provides a stealthy look and important tuning data in high contrast digital format. The LCD fonts are bright white on a black background. High contrast LCD digits are visible even in a direct sunlight. A push of a button located on the right side of the LCD shows peak and hold maximum AFR, Lambda, EGT, Boost and "User2" input values.

Dimensions are 4.7" x 2" x 0.9" (120 mm x 51mm x 23mm)

Zeitronix LCD Display Data Values
