Flowmaster XDR Kit - DOR - Moderate/Aggressive Sound - RZR XP 1000

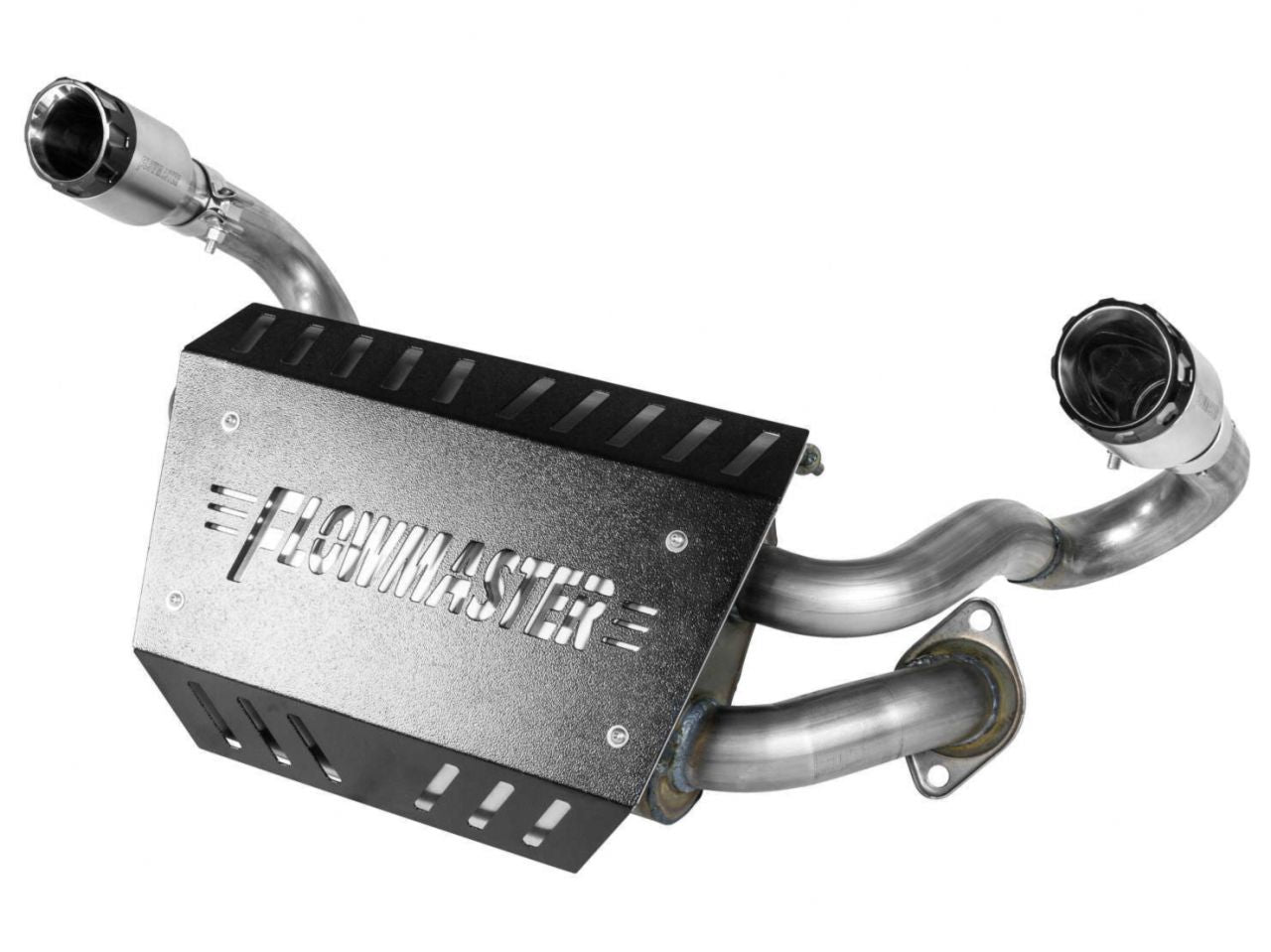

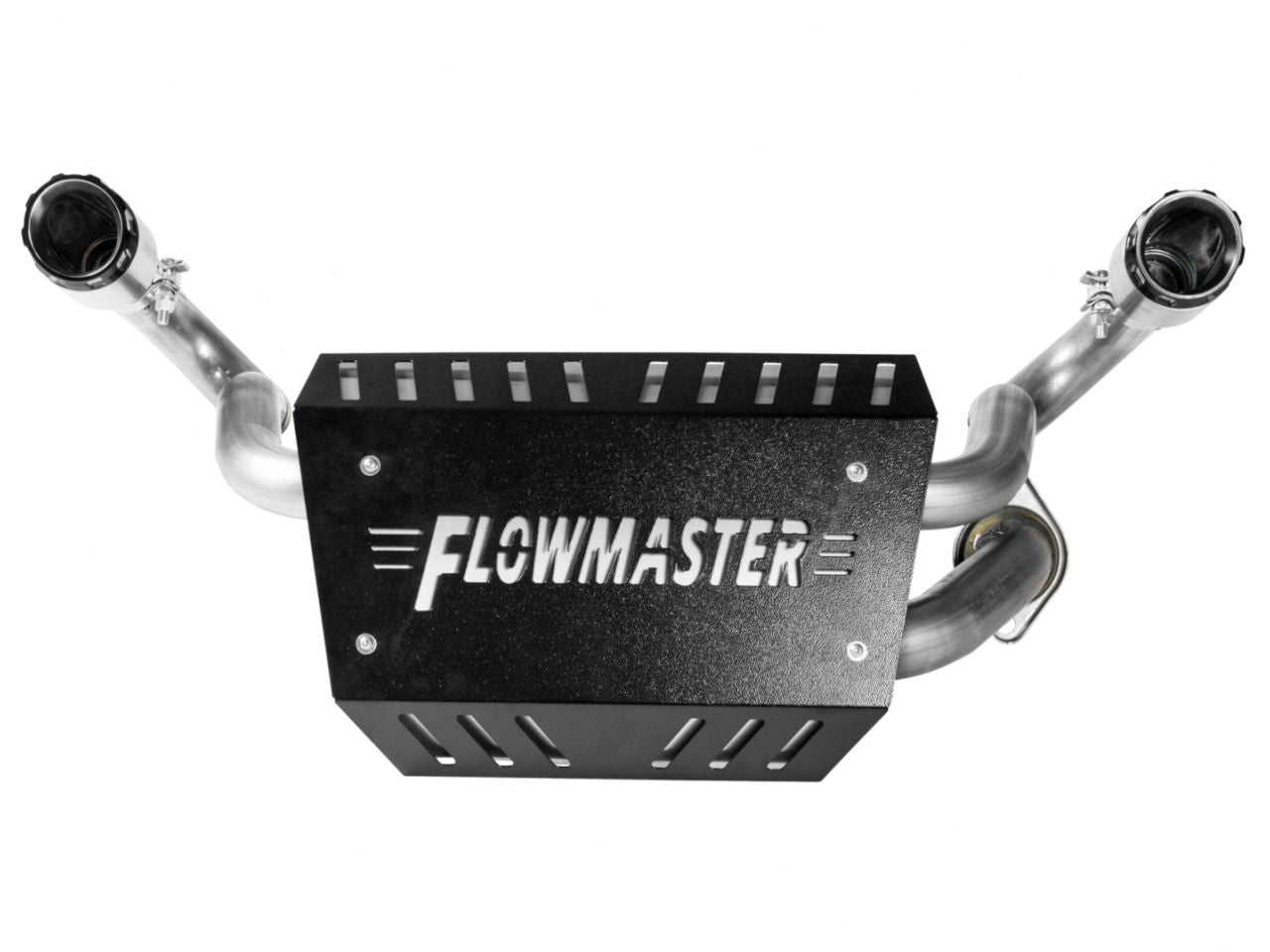

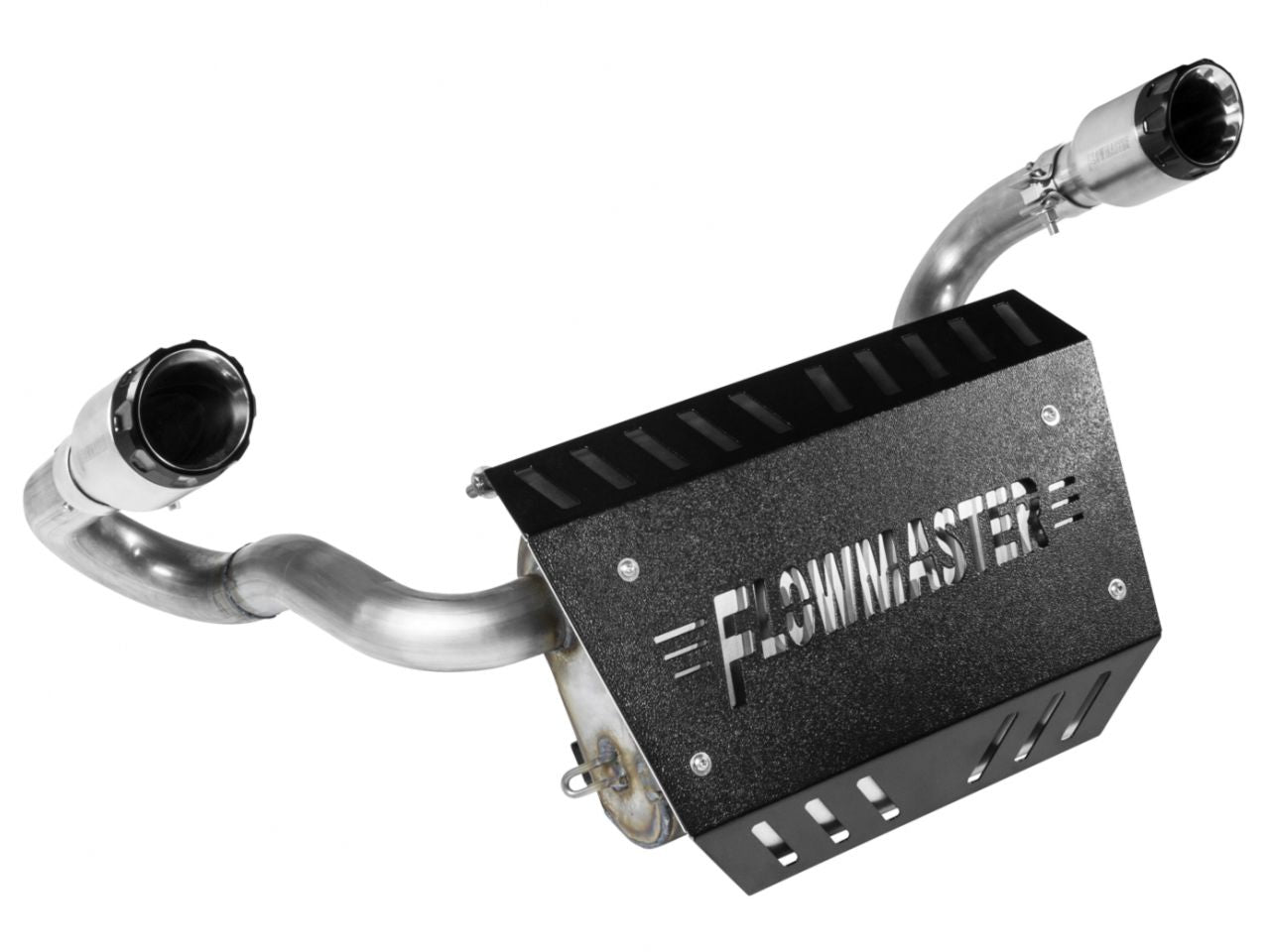

This new bolt-on XDR performance exhaust system is for the 2015-2017 Polaris RZR XP 1000 and XP 4 1000 with naturally aspirated engine. Features include 409S stainless steel construction with a 2.50 inch mandrel bent inlet tube flowing into the "straight-through" cross-flow performance muffler with dual 2.25 inch mandrel bent tailpipes tucked up high within the rear fenders providing a moderate to aggressive deep sound level. The tailpipes contain USFS qualified spark arrestors and are finished off with a pair of 3.50 inch dual wall brushed 304s stainless steel tips with black anodized aluminum ends. The factory exhaust cut-out is replaced with a stainless heat shield with the Flowmaster logo laser cut in the shield showing everyone behind you, why your RZR sounds so good. Includes all hardware and installation instructions necessary for a simple at home installation. For competition use only; Not EPA emissions compliant. Not available for sale or use in California. Made in the USA
Features:
- High clearance dual exhaust tailpipes
- Moderately aggressive deep sound
- USFS qualified spark arrestors
- Stainless steel construction
Specification:
| Power Sport Item Type | Rear Section Exhaust | Compatible Brands/Models | Polaris RZR |
|---|---|---|---|
| Overall Exhaust System Diameter | 2.25 | Pipe Material/Type | 409 Stainless |
| Exit Location | DOR | Included Safety Features | Heat Shield |
| Decibal Rating (dB) | Not Available | Assembly Required | No |

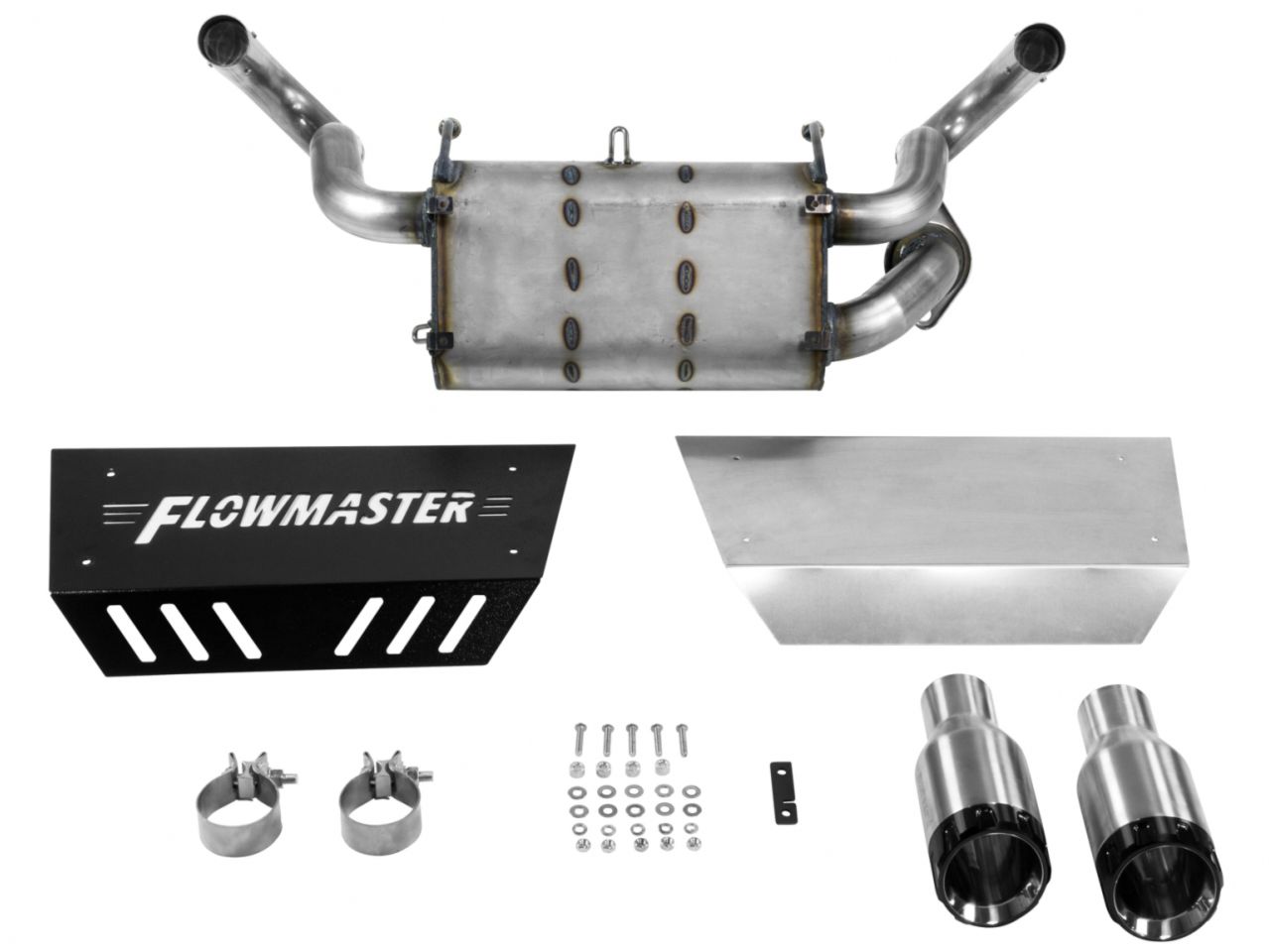

| Components Included | Muffler, Tips, Heatshields, Hardware and Instructions | System Color/Finish | Natural |
| Mounting Hardware Included | Yes | Mounting Hardware | Yes |
| Mounting Method | Bolt On | Mufflers Included | Yes |
| Muffler Body Material | 409 Stainless | Muffler Internal Description | Absorption |
| Muffler Inlet Count | 1 | Muffler Inlet Inside Diameter(in) | 2.39 |
| Muffler Outlet | 2 | Muffler Outlet Inside Diameter (in) | 2.14 |
| Muffler Body Length (in) | 17 | Muffler Body Width (in) | 4 |
| Muffler Body Height (in) | 9.75 | Muffler Color/Finish | Natural |
| Muffler Quantity | 1 | Muffler Style | Transverse |
| Muffler Configuration | Single | Header Pipe Quantity | Not Included |
| Flange Quantity | 1 | Flange Length (in) | 6.062 |
| Flange Width (in) | 4.016 | Flange Thickness (in) | 0.984 |
| Number of Bolt Holes per Flange | 2 | Bolt Hole Diameter (in) | 0.64 |
| Mounting Hole Spacing (in) | 4.72 | Y-Pipes Included | Not Included |
| Tip Included | Yes | Tip Quantity | 2 |
| Tip Shape | Round | Tip Cut | Angle |
| Tip Material | 304 Stainless/Aluminum | Tip Finish | Polished/Black anodized |
| Tip Length (in) | 8.5 | Tip Diameter (in) | 3.5 |
| Tip Style | Double Wall | Special Fitment Info | Competition use only. Not emissions compliant |
| California Legal | No | CARB EO | No |
| USFS Approved Spark Arrestor | Yes | Power Sport Item Type | Rear Section Exhaust |
| Compatible Brands/Models | Polaris RZR | Overall Exhaust System Diameter | 2.25 |
| Pipe Material/Type | 409 Stainless | Exit Location | DOR |
| Included Safety Features | Heat Shield | Decibal Rating (dB) | Not Available |
| Assembly Required | No | Components Included | Muffler, Tips, Heatshields, Hardware and Instructions |
| System Color/Finish | Natural | Mounting Hardware Included | Yes |
| Mounting Hardware | Yes | Mounting Method | Bolt On |
| Mufflers Included | Yes | Muffler Body Material | 409 Stainless |
| Muffler Internal Description | Absorption | Muffler Inlet Count | 1 |
| Muffler Inlet Inside Diameter(in) | 2.39 | Muffler Outlet | 2 |
| Muffler Outlet Inside Diameter (in) | 2.14 | Muffler Body Length (in) | 17 |
| Muffler Body Width (in) | 4 | Muffler Body Height (in) | 9.75 |
| Muffler Color/Finish | Natural | Muffler Quantity | 1 |
| Muffler Style | Transverse | Muffler Configuration | Single |
| Header Pipe Quantity | Not Included | Flange Quantity | 1 |
| Flange Length (in) | 6.062 | Flange Width (in) | 4.016 |
| Flange Thickness (in) | 0.984 | Number of Bolt Holes per Flange | 2 |
| Bolt Hole Diameter (in) | 0.64 | Mounting Hole Spacing (in) | 4.72 |
| Y-Pipes Included | Not Included | Tip Included | Yes |
| Tip Quantity | 2 | Tip Shape | Round |
| Tip Cut | Angle | Tip Material | 304 Stainless/Aluminum |
| Tip Finish | Polished/Black anodized | Tip Length (in) | 8.5 |
| Tip Diameter (in) | 3.5 | Tip Style | Double Wall |
| Special Fitment Info | Competition use only. Not emissions compliant | California Legal | No |
| CARB EO | No | USFS Approved Spark Arrestor | Yes |
