Xcessive Manufacturing JZ Motor Mount Brackets - Nissan S13 Chassis
Xcessive Manufacturing JZ Motor Mount Brackets - Nissan S13 Chassis

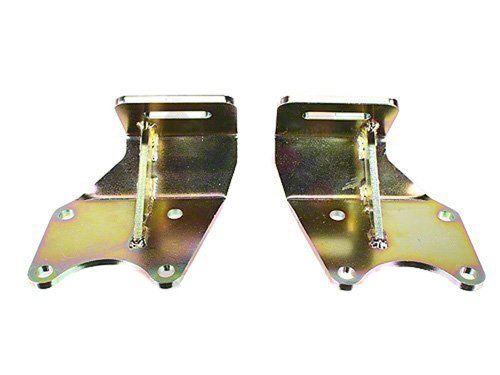

XM's new steel motor mount brackets for 1J and 2J swaps are designed to put that Toyota motor in to your S chassis with as little hassle as possible and work with both standard JZ blocks and VVTi. We've made these mount brackets with a slot for the motor mount point that allows total movement of the engine, about 1 1/2", making trans cross member alignment easier as well as fitment of twin turbos or a single.
CNC cut from 1/4" steel plate, formed, gusseted and plated, these engine brackets will handle all the punishment you can throw at them and last a life time doing it.
Stock rubber motor mounts will require the index pin to be ground off to allow these brackets to properly sit flat due to the application of the slotted mount. XM Urethane motor mounts for the S chassis are a direct fit with no modifications and will easily handle the punishment of the heavier, higher powered JZ platform.
Notes
- Xcessive Manufacturing has included new bolting hardware for the brackets to the chassis and engine in order to make the install a bit easier.
- This listing is for a 240SX S13, the S14 is slightly different and should be ordered here.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1993 | Nissan | 240SX | Base |
| 1991 - 1992 | Nissan | 240SX | LE |
| 1989 - 1994 | Nissan | 240SX | SE |
| 1989 - 1990 | Nissan | 240SX | XE |
