Works Bell fix QRS Quick Release

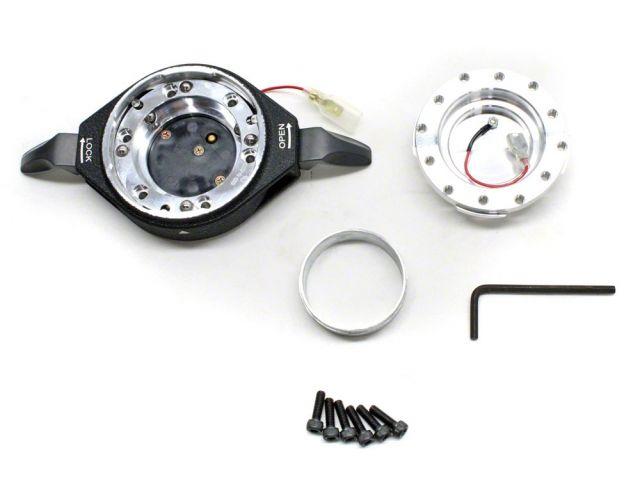

Works Bell Rapfix QRS Quick Release

For other quick release manufacturers, it is near impossible to achieve the goal of designing a quick release that features easy operation with no shakiness or play. However, Rapfix QRS achieves these goals by utilizing the lever, cover and ball lock system. In addition, it allows the driver to maintain a comfortable seating position due to it's approx. 25mm thinness.

Rapfix QRS has cleared the NAPAC standard (a standard for after market products in Japan). A screwing test was done to check the operation of steering wheel to radial power. There was not any change in the shape after being tested with live loads of 29.7kg.m (291N.m). Moreover, there was not any change in the shape after a bending test of dead loads of 19.8kg.m (194N.m) in order to examine the effect when a driver impacts the steering wheel in an accident. In the screwing test, there were no damages when a load of 45kg.m (441N.m) was done; and in the bending test, there were no damages when a 28kg.m (274N.m) load is done.
