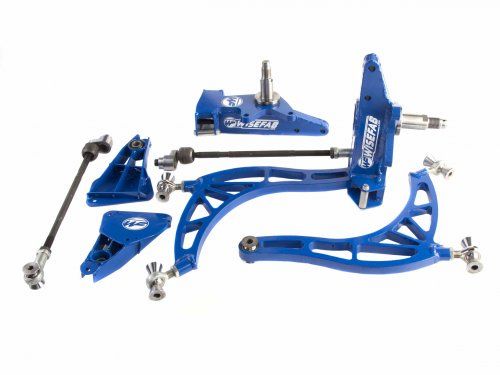

• Wisefab Angle Kits WF013/14 Item Image
1 1
Wisefab Authorized Dealer

Wisefab Angle Lock Kit - Nissan 240SX S13 With S14 Knuckles

Wisefab Angle Lock Kit - Nissan 240SX S13 With S14 Knuckles

$1,515.00
$1,515.00 $1,515.00
Sale Sold out

Out of stock

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Steering Knuckle Kit
Category
Motor Vehicle Suspension Parts
Item condition
New
Shipping weight
46.0 lb

Billable shipping weight; may include dimensional weight.
WiseFab Angle Lock Kit - Nissan 240SX S13 With S14 Knuckles

Engineered for performance and handling.

65 degrees of lock, parallel steering - both wheels turn the same angle. As an option, there would be a possibility to buy Ackermann adjustment kit. You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.

Higher roll center (RC). Lowering the car would mess up the original factory designed kinematics, especially with MacPherson suspension. On Wisefab knuckle, the ball joint is lowered 56mm, which brings the front RC up on lowered car, providing higher roll stiffness and letting to emove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles.

Very good camber control and minimal bump steer with high steering angles. On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.

Steering jacking control. During steering the car chassis is moving up and down - this is called jacking. Steering jacking is caused by combination of caster, KPI, trail and scrub. On road cars, this effect is used sometimes to balance the car or to help to turn in. During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn't cause any handling issues.

Consistent and predictable self-alignment torque. Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

Other Features
  • Other components, packaging and clearance.
  • This kit assumes coilovers to have enough clearance.
  • Dependent on rim width and ET, wider fenders or fender flares would be needed.
  • 15"original rim could be used if needed.
  • With tire diameter not bigger than 605mm (215/40R17) and lowered ride height the inner
  • wheel wells don't have to be modified.
  • With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and
  • lowered ride height the inner wheel wells need to be slightly modified.
  • Recommended backspacing is 135-140mm (7" ET45; 8" ET35; 9" ET25). If ET is smaller, then
  • wheels stay more outwards, if ET is bigger, then spacers need to be used.
  • Comes with S14 Knuckles

The kit is designed and manufactured in a way that after installation and toe adjustment, the car is ready to use right away.
