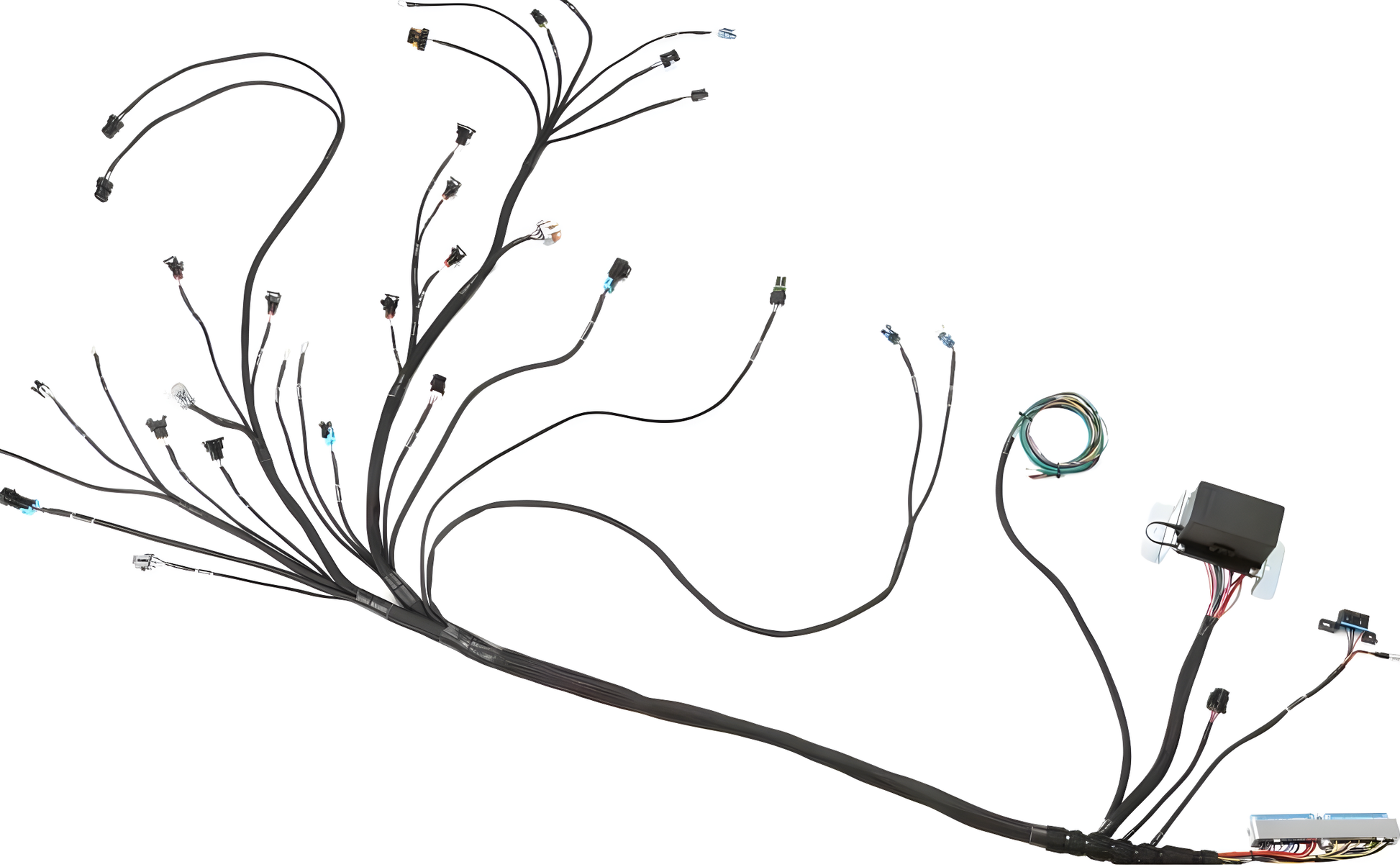

Wiring Specialties LS1 / Vortec Wiring Harness for Datsun - PRO SERIES
This Wiring Specialties PRO Series harness was designed from the ground-up to exceed OEM specifications for wire quality, power/ground routing. With our optimized and 'tucked' approach the end result will be a clean and worry free installation with a guaranteed start up.

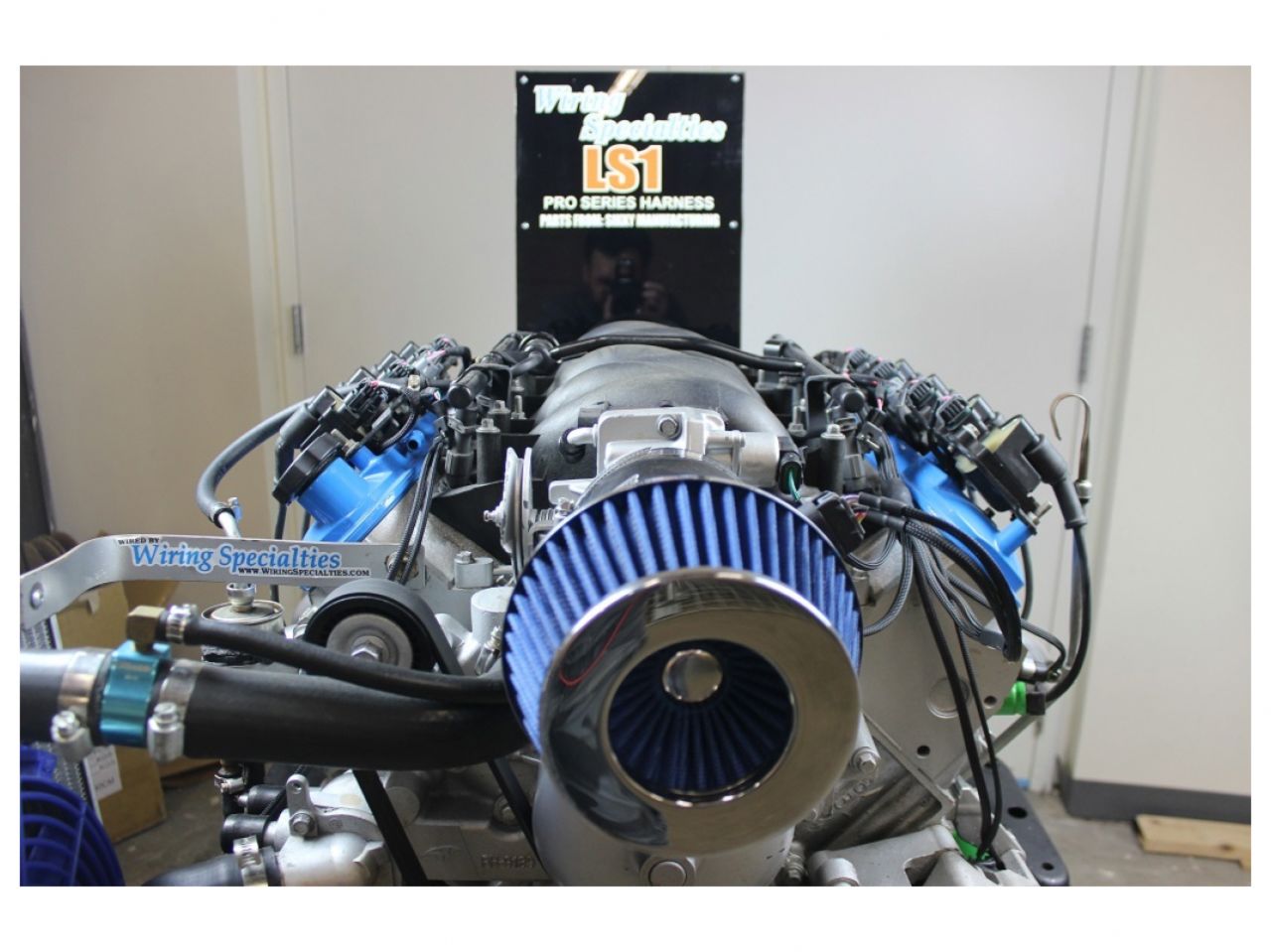

This harness is specifically engineered for a Classic Datsun 510, 240z, 260z, 280z, Roadster etc. with the GM LS1 Cable Throttle engine swap. It was developed in house on an actual LS1 engine to ensure a perfect fit to all engine connections.
Wiring Specialties offers a number of options for common performance upgrades for this product. Build your perfect harness by selecting from the available options to the right, and as always - if you have any questions, please reach out to us.
SUPPORTED ENGINES: Gen 3 Drive By Cable LS1/Vortec
- Any F-Body LS1 from 1999-2002 Camaro, Firebird, Trans Am or Corvette
- Any LS1 from 2004 Pontiac GTO
- Any Truck/SUV LSx/Vortec engine from 1999-2004 Silverado, Suburban, Tahoe, Escalade, etc.
- Supports Engines with DRIVE BY CABLE THROTTLE ONLY
CHASSIS: Classic Datsun
- Classic Datsun including 510, 240z, 260z, 280zx, Roadster

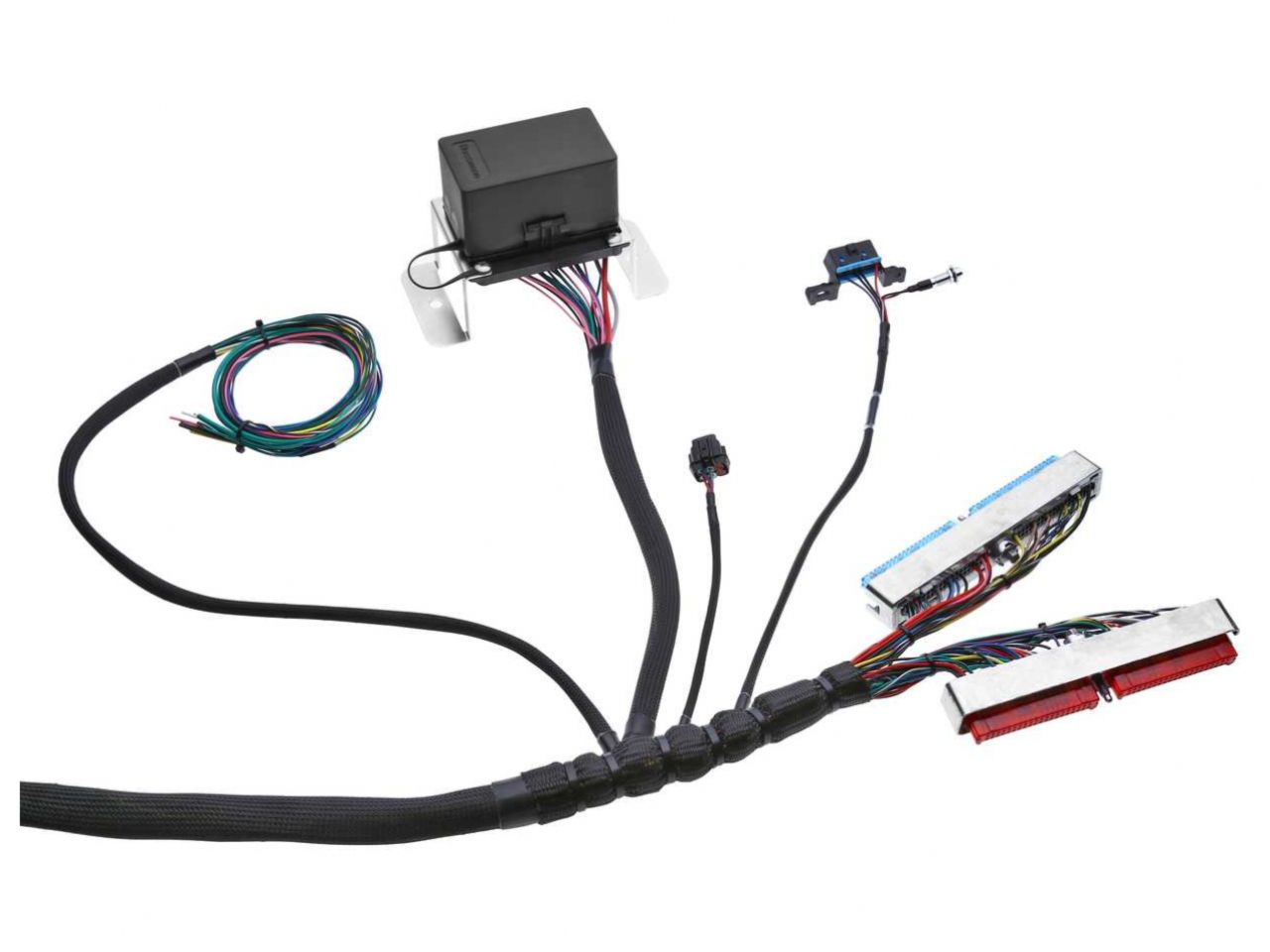

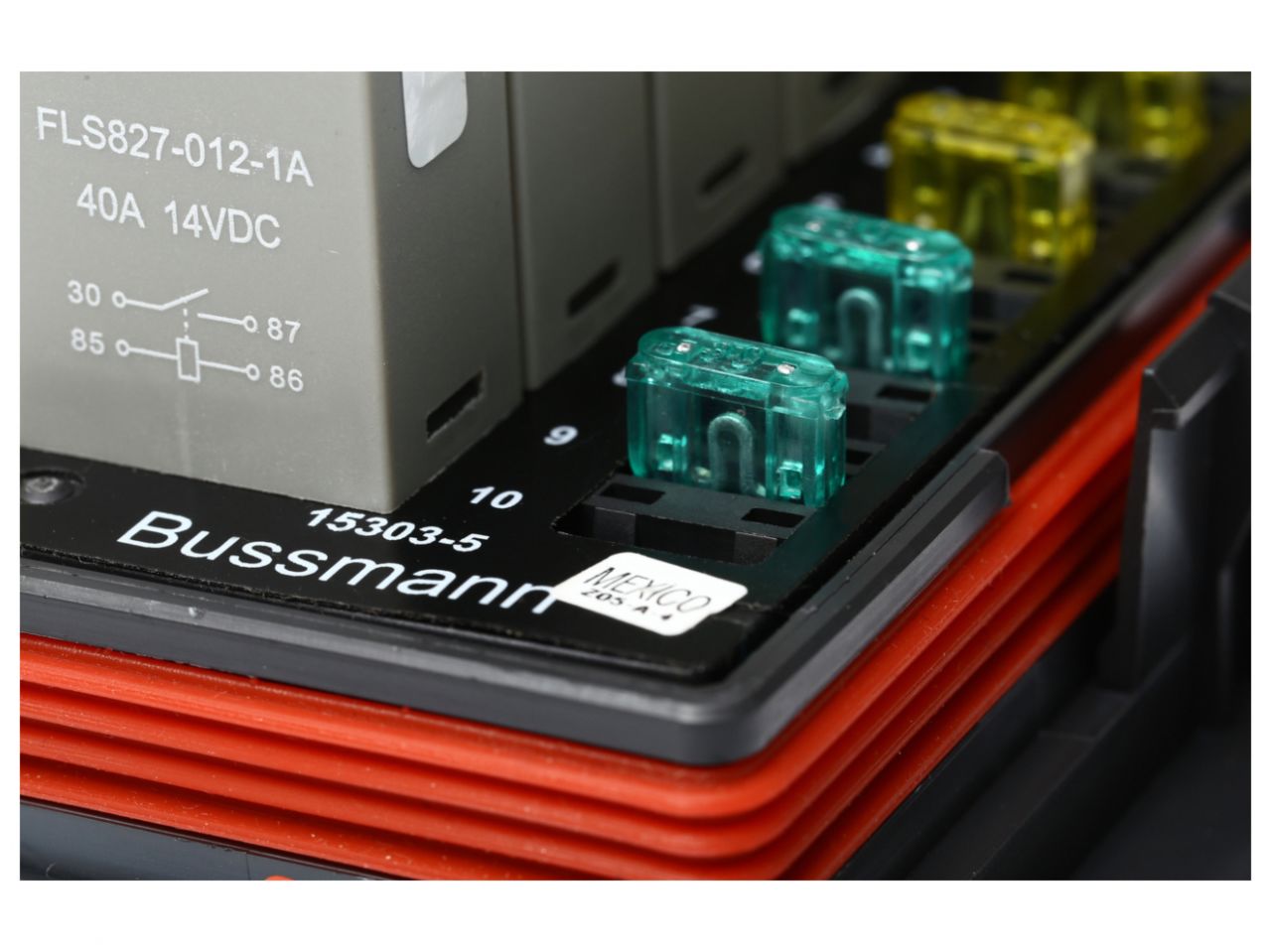

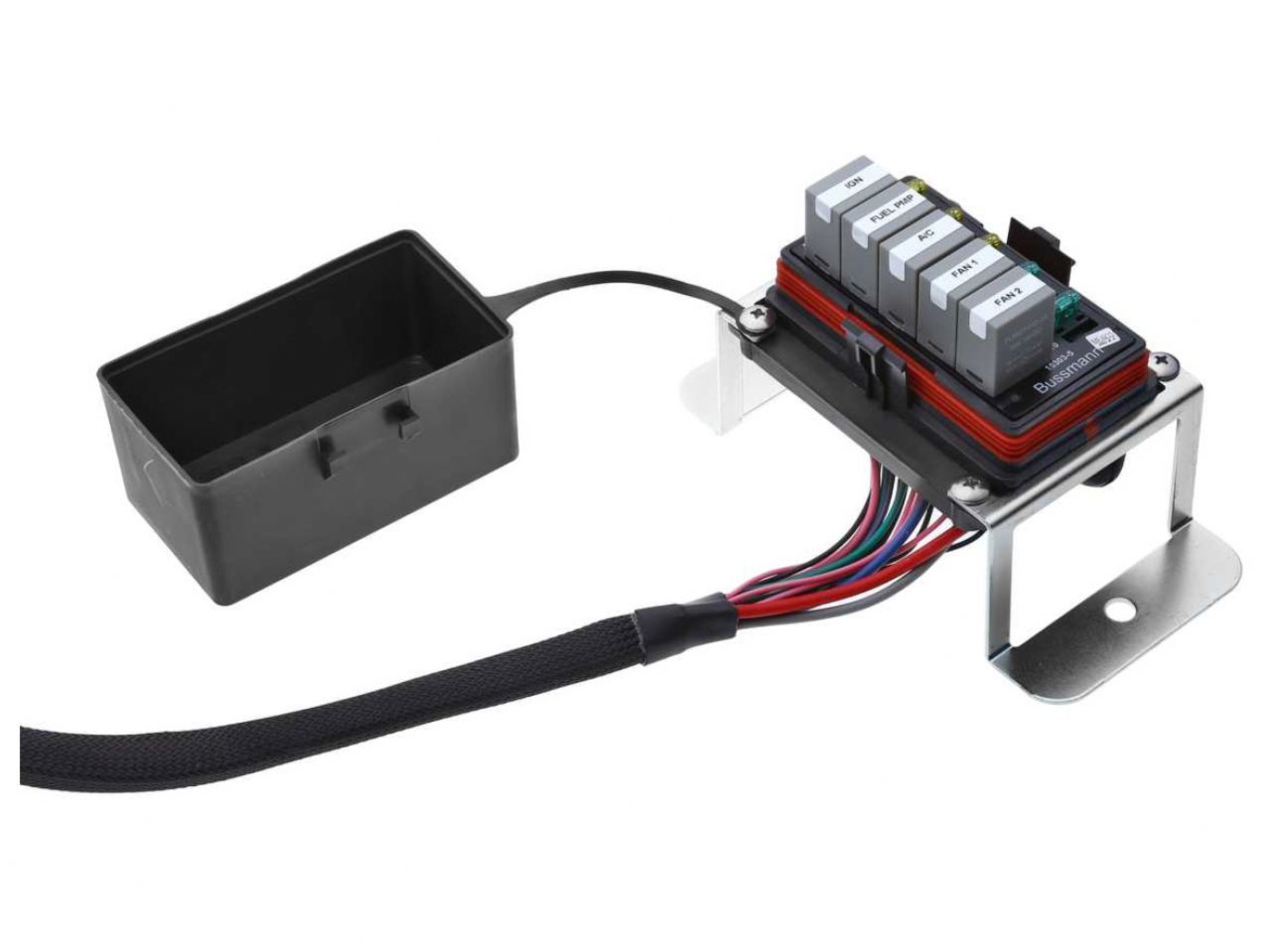

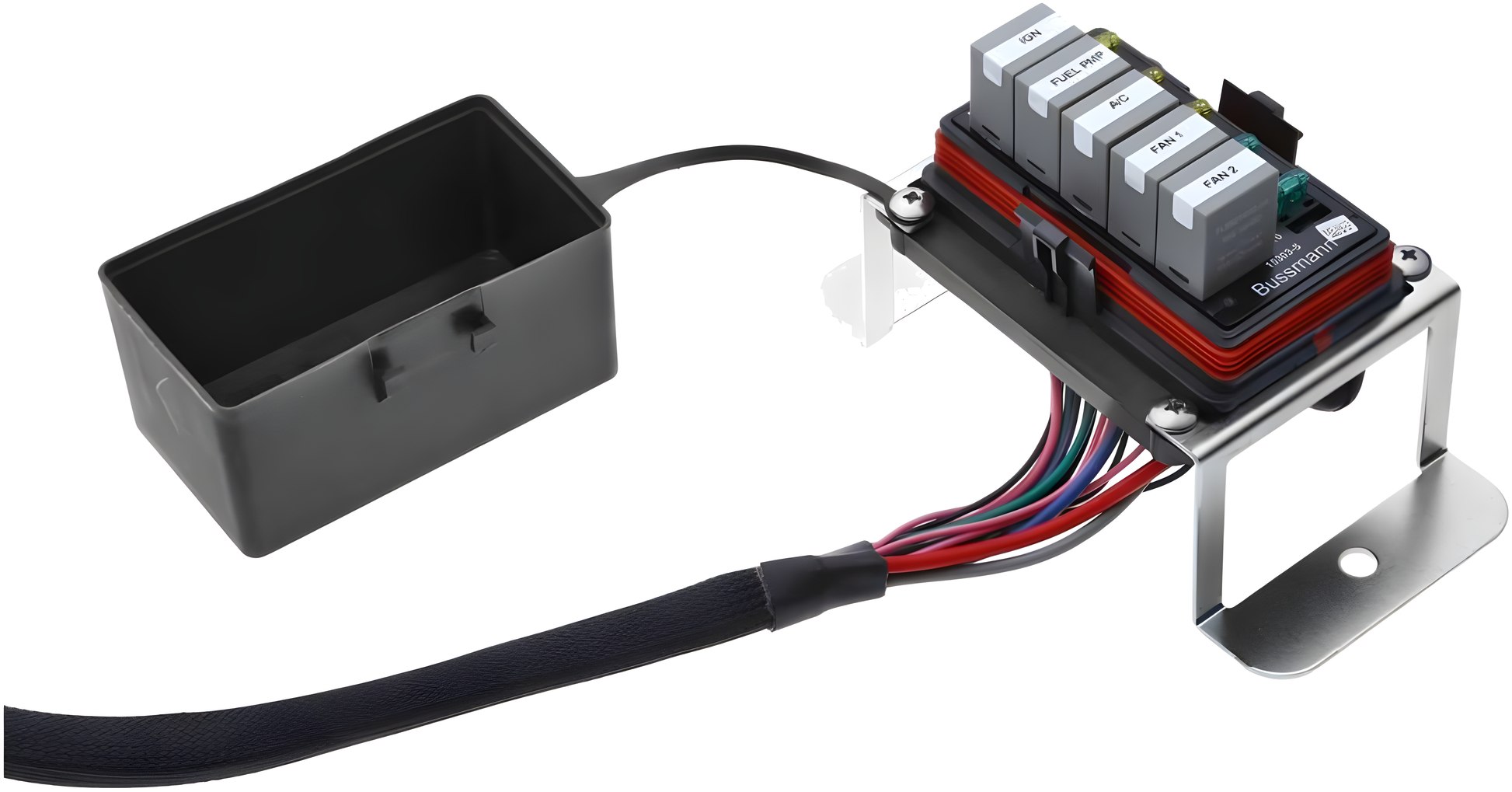

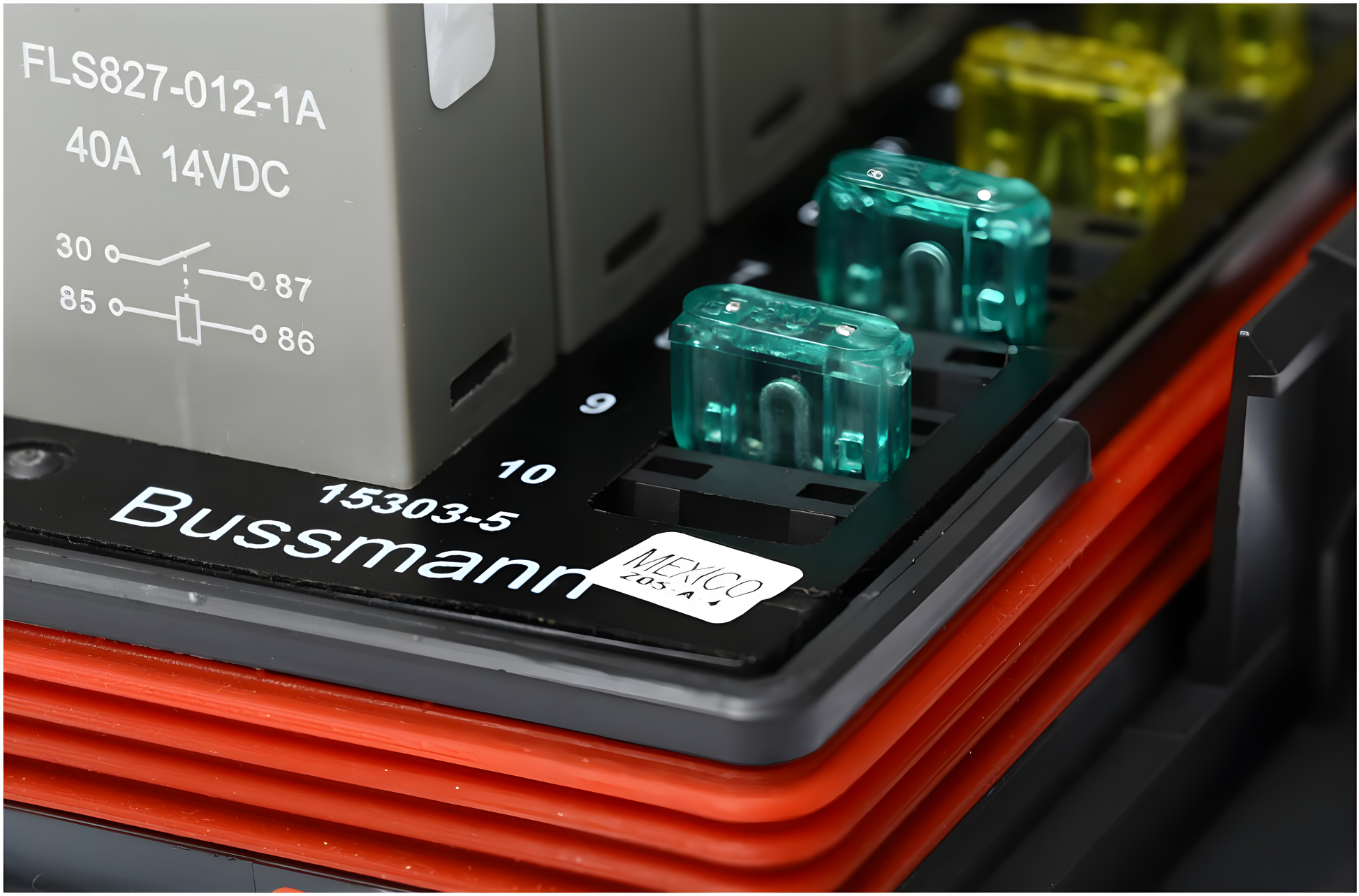

- Our Universal PRO harness is a perfect solution for the engine, and comes with a self-contained pre-wired fuse/relay block for ignition, cooling fans and fuel pump.
- You just have to hook up start signal, fuel pump wires and a few other wires for tach and speedo, alternator warning light etc.
- Speedo and / or tach may need to have the signal adjusted using a frequency modulator (see Options to the right). You may have to run aftermarket gauges. Not compatible with mechanical cable driven speedometers.
PRO-SERIES HARNESS TECHNICAL SPECS
- Plug and Play - simple and efficient
- NO CORE HARNESS or additional wiring required
- OEM wire colors used, where applicable
- Fireproof fiberglass sleeving used in high-temp sections near the manifold & turbo (-40°C/-40°F to +450°C/+845°F operating temperature)
- Point-to-Point continuity tested on every wire
- Constructed using exact OEM connectors and seals
- Made with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to +125°C/+257°F operating temperature)
- Wrapped in lightweight nylon loom (-94°C/-137°F to +125°C/+257°F operating temperature)
- Includes a charge harness and improved grounds
- Fully tested after production for an easy plug-and-play installation
PRO-SERIES HARNESS INCLUDES

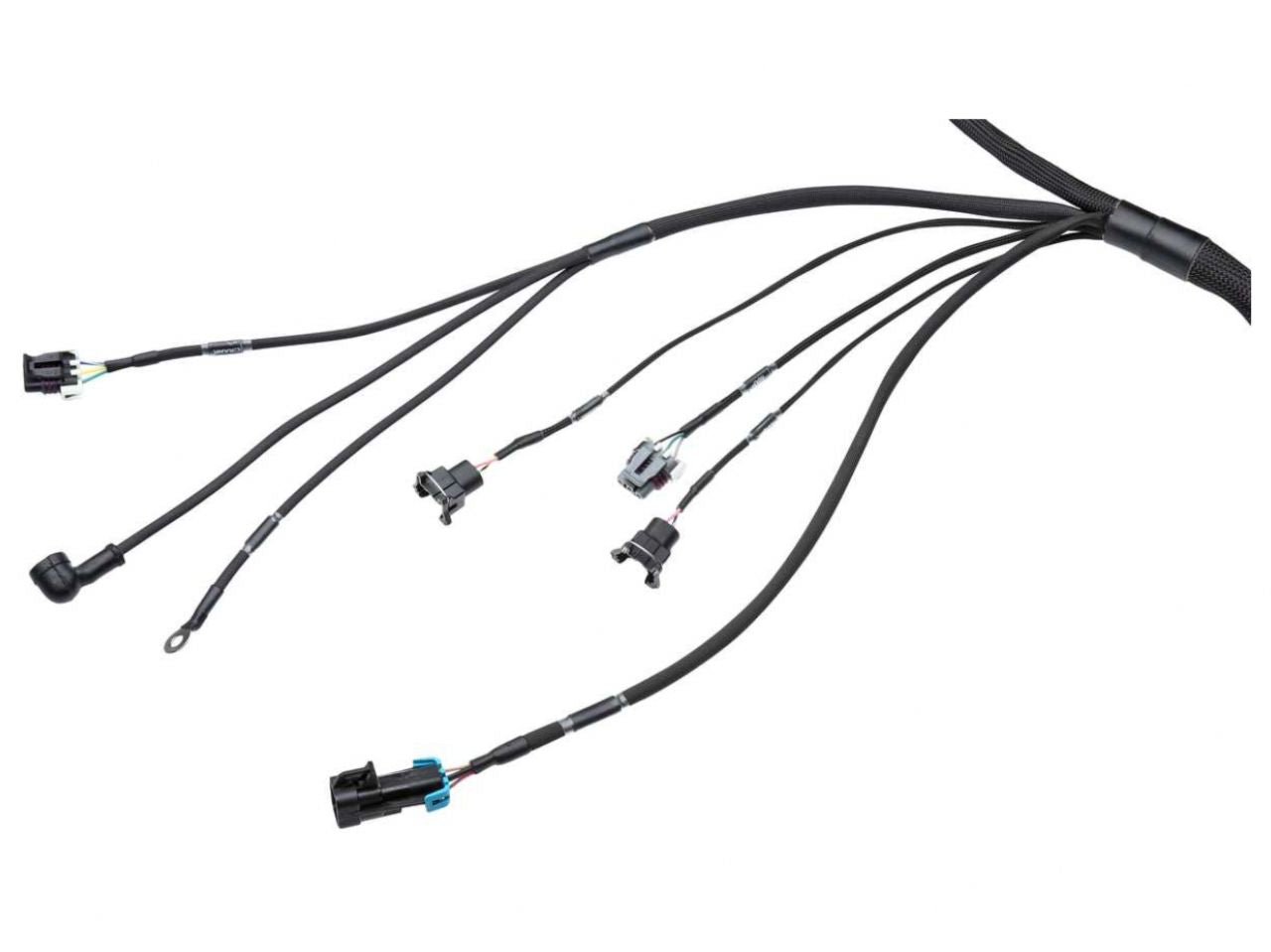

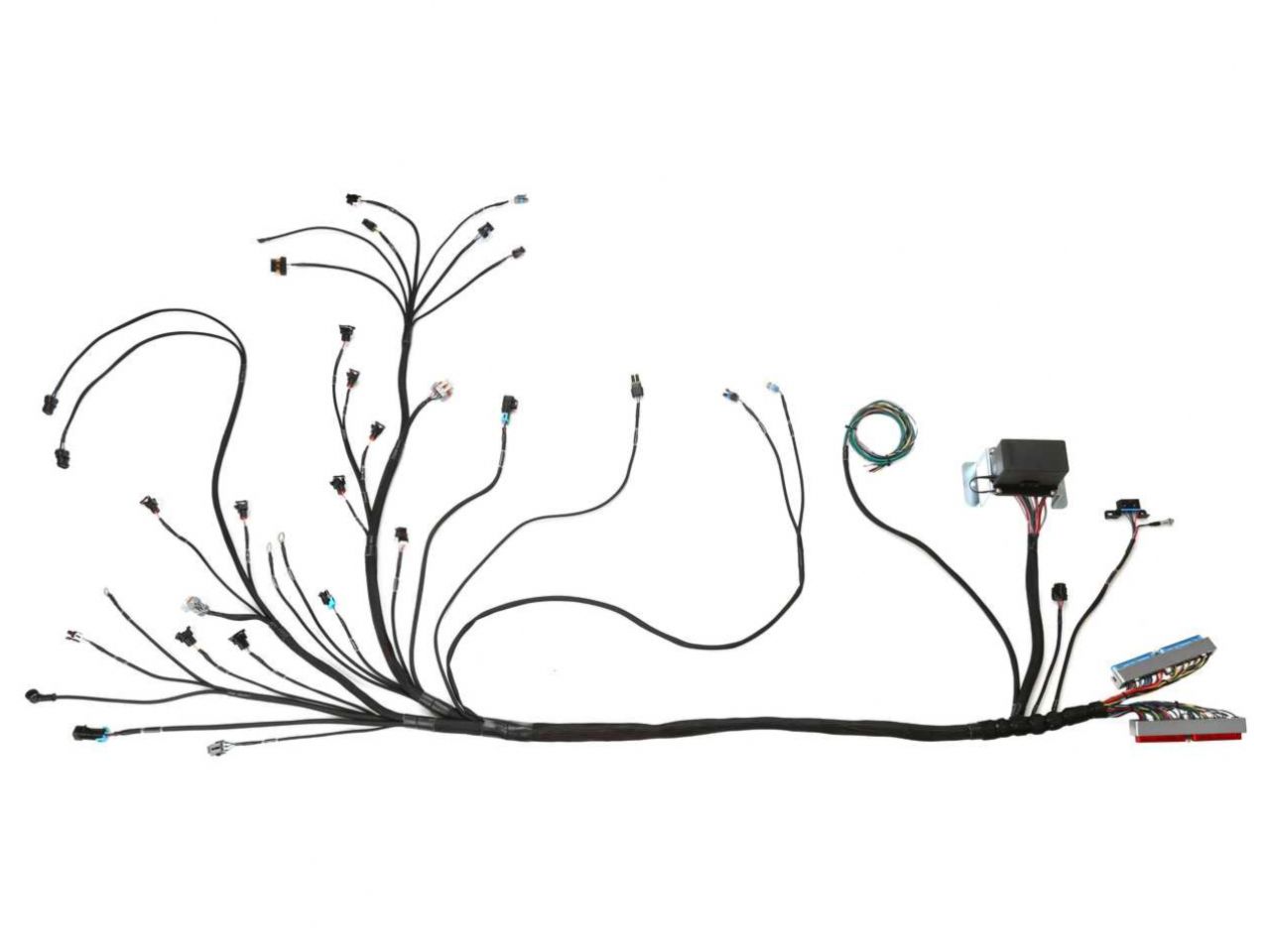

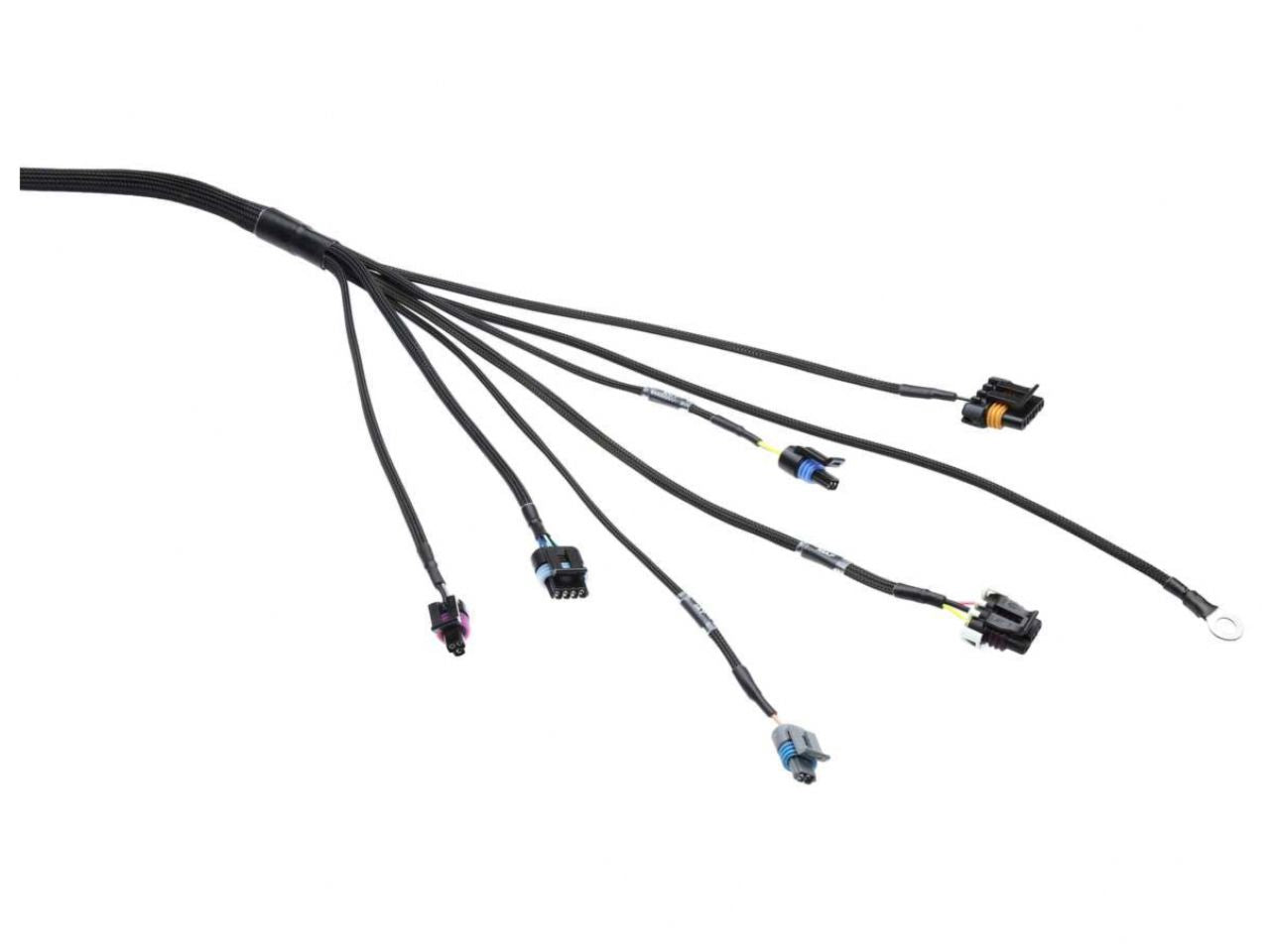

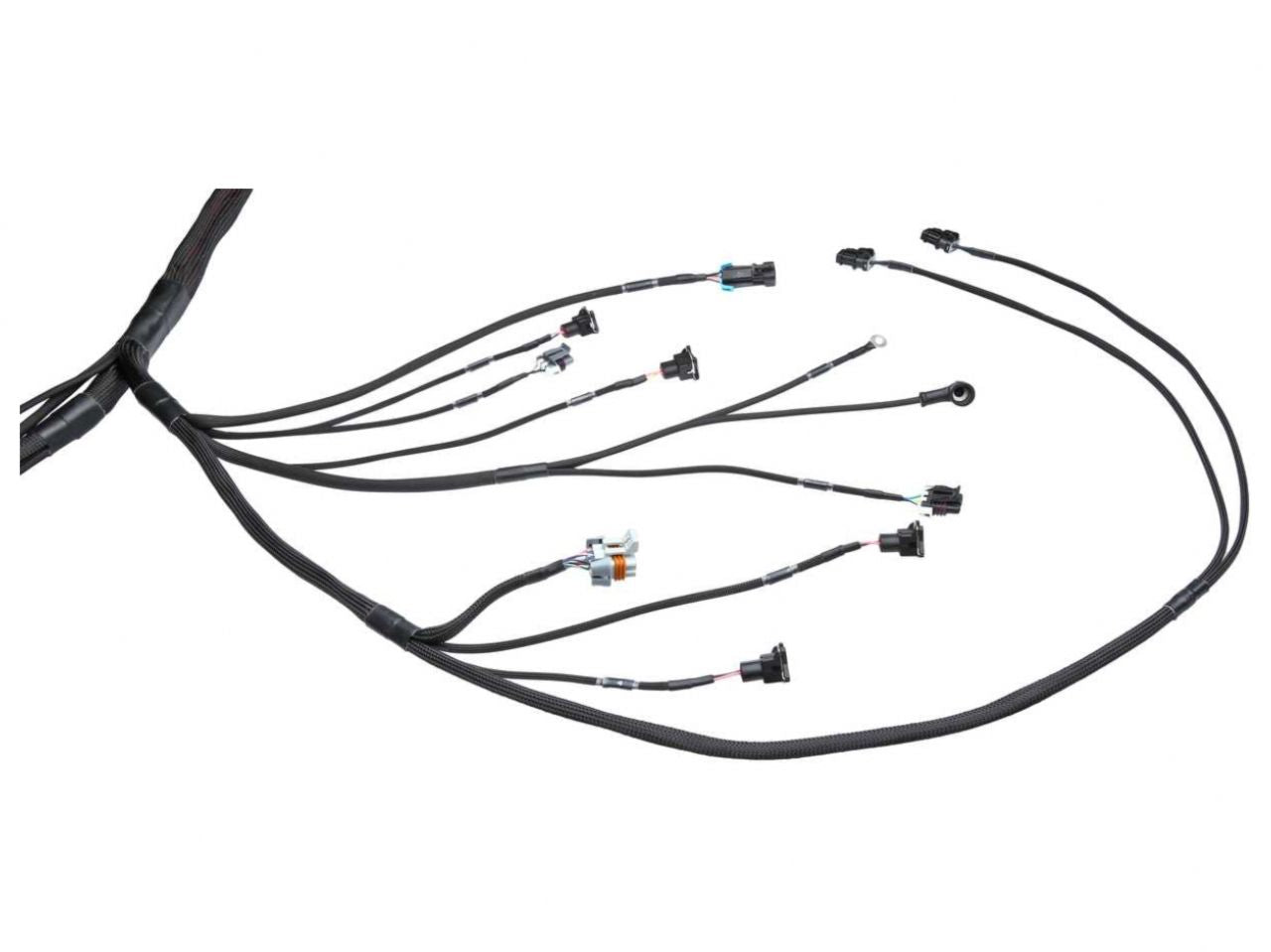

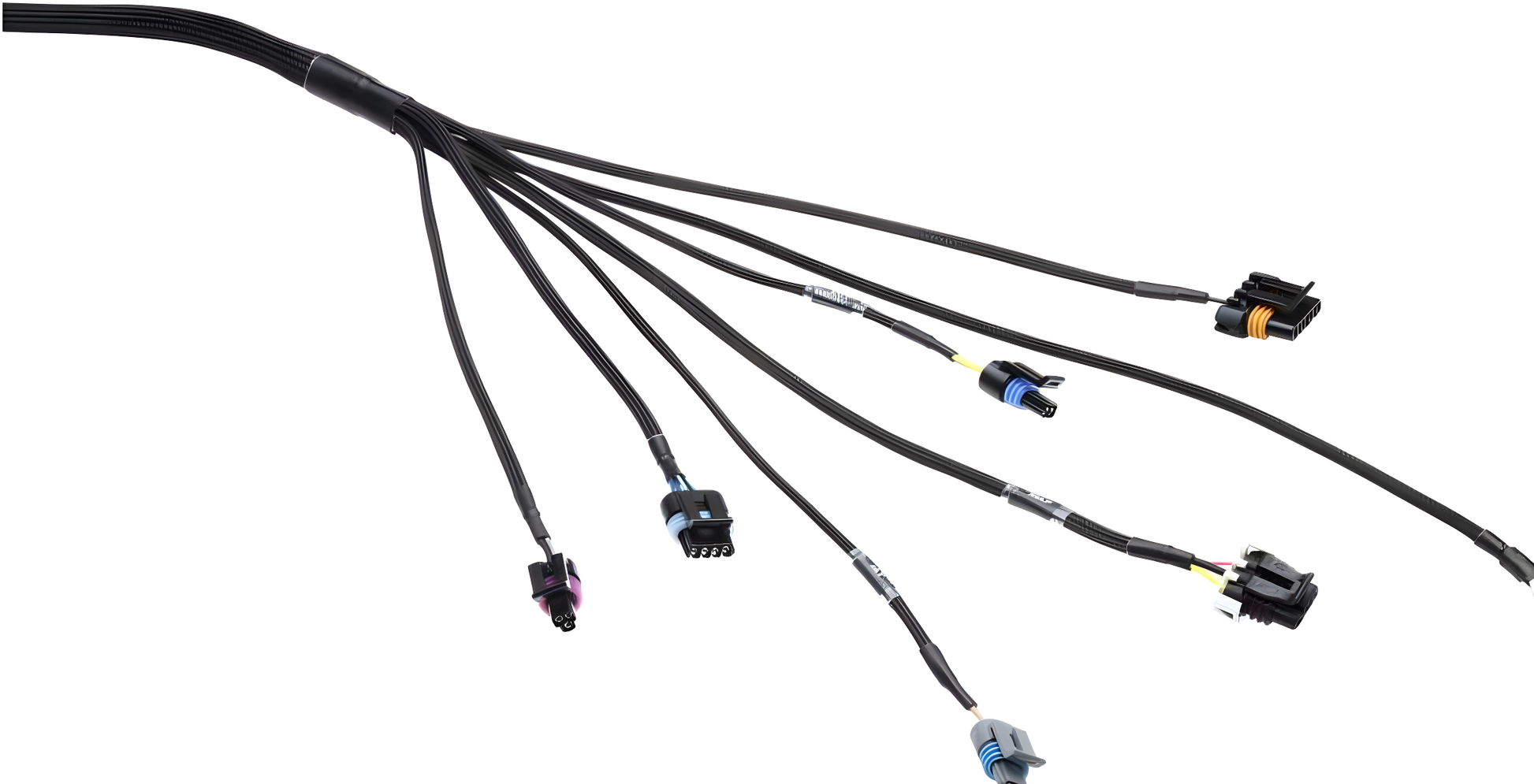

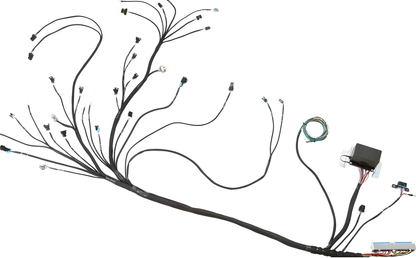

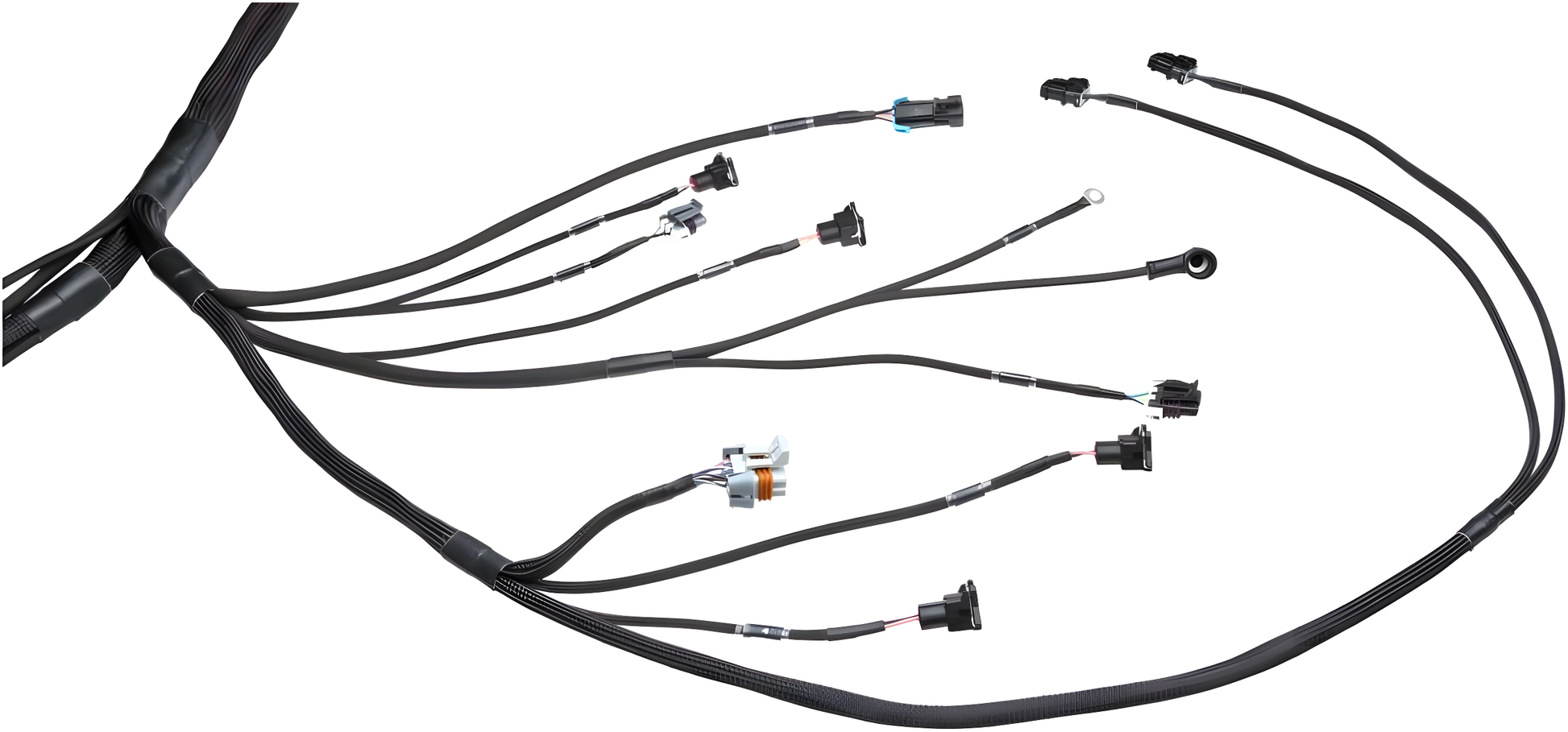

- Main Engine and Transmission one-piece tucked harness
- Alternator charge cable built into the main harness
- Knock sensor sub-harness connector
- MAFS connector (3-pin or 5-pin)
- MAP sensor connector
- Intake Air Temp connector
- TPS connector

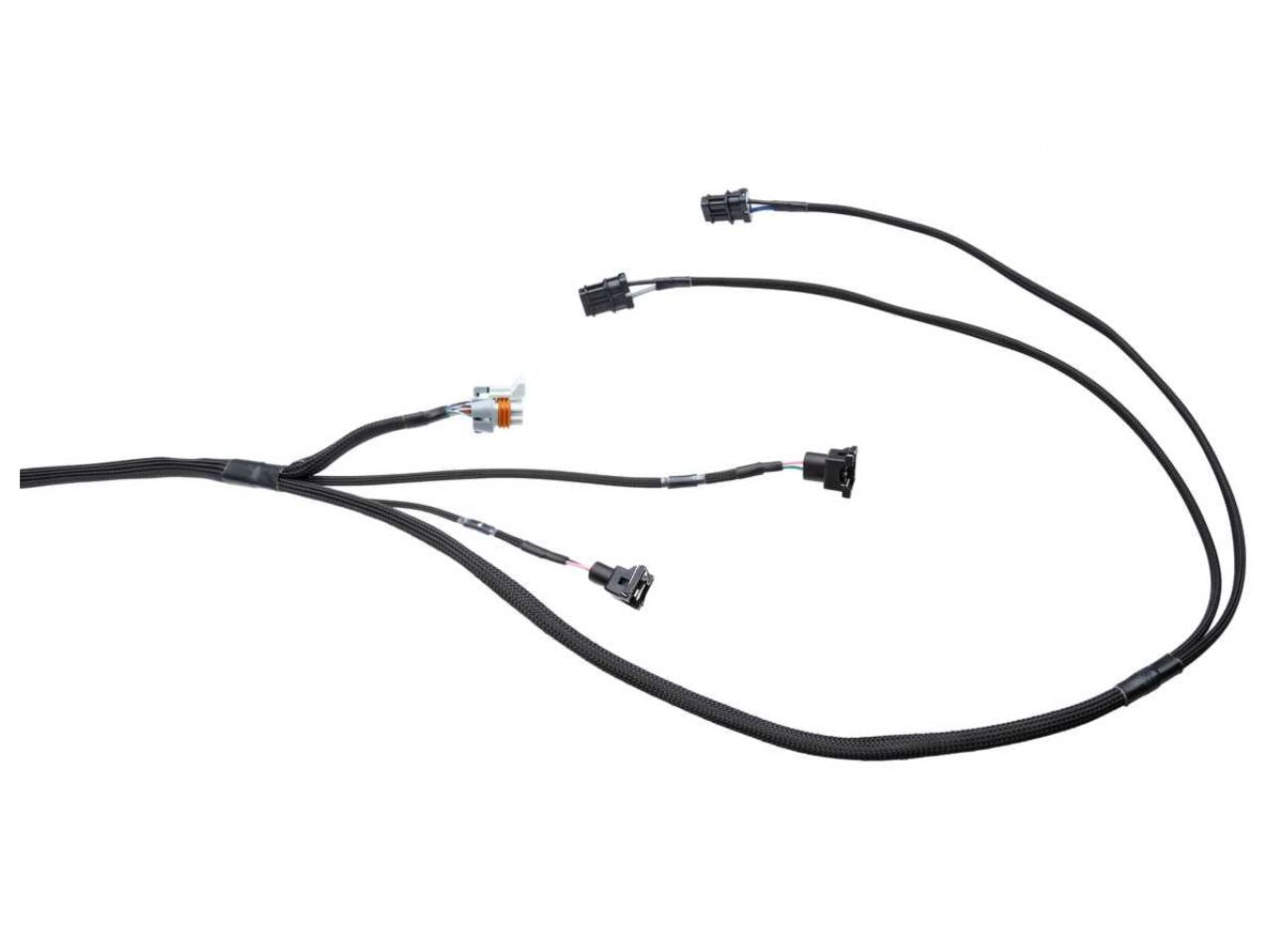

- 8x Injector connectors

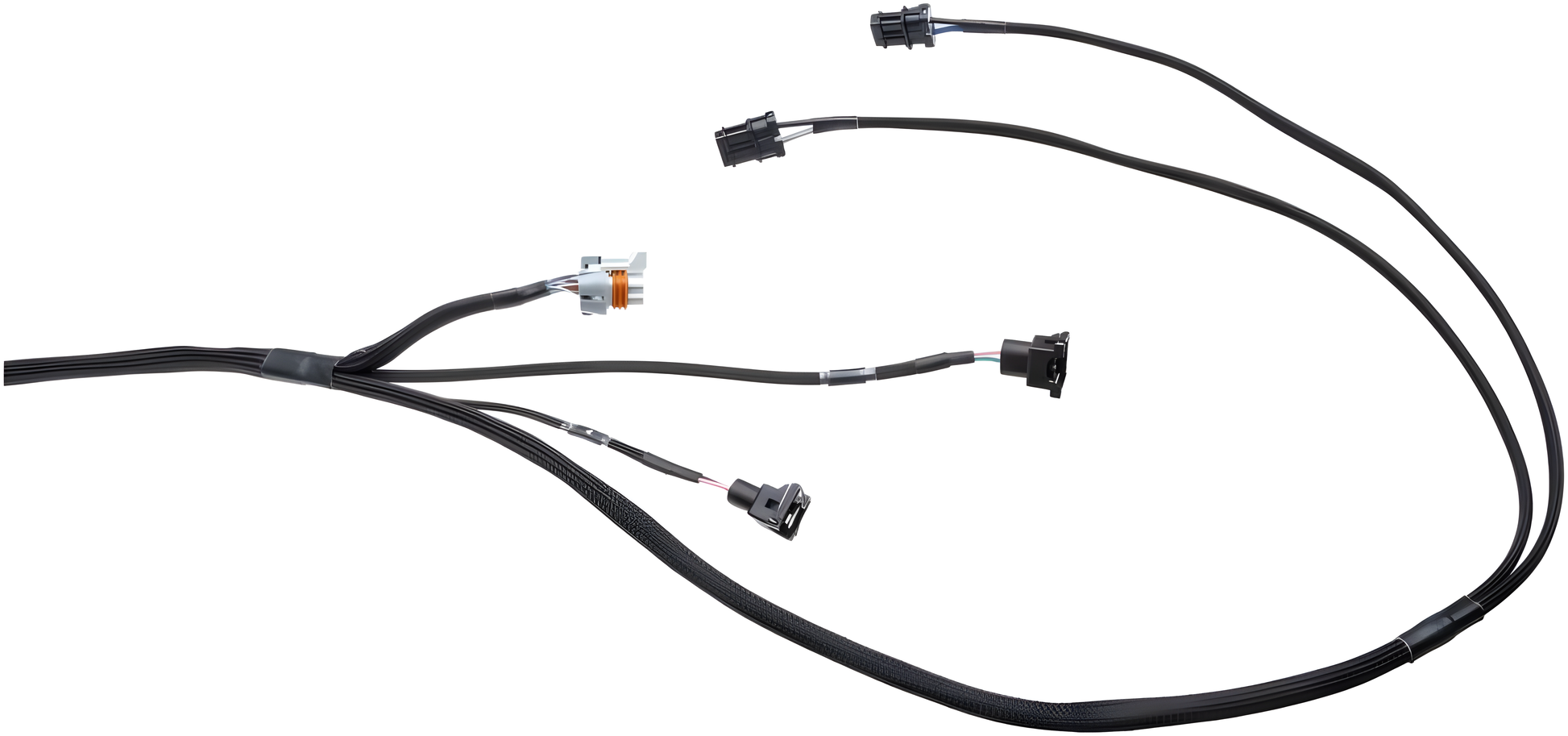

- Bank 1 and Bank 2 Coil interface connectors (coil harnesses are optional)
- Oil Pressure gauge connector
- Wiring for 2 PCM-controlled electric cooling fans
- Cam sensor connector
- Crank sensor connector
- Bank 1 and Bank 2 FRONT Oxygen sensor connectors (High Temp shielding)
- 1 x Ground ring terminal
- Idle air connector
- ECT sensor connector and cluster coolant temp switch connector
- Reverse lights sensor connector
- Speed sensor connector
- Reverse Lockout connector
- Skip Shift connector
- LS1 Alternator connector
- Starter signal/start connector
- A/C Wiring is available as an option. Please note that adding A/C to an LS1 S13 is not easy and will require custom lines and sensor installation. Wiring Specialties will provide a wiring sub-harness needed for operating the A/C system ONLY.

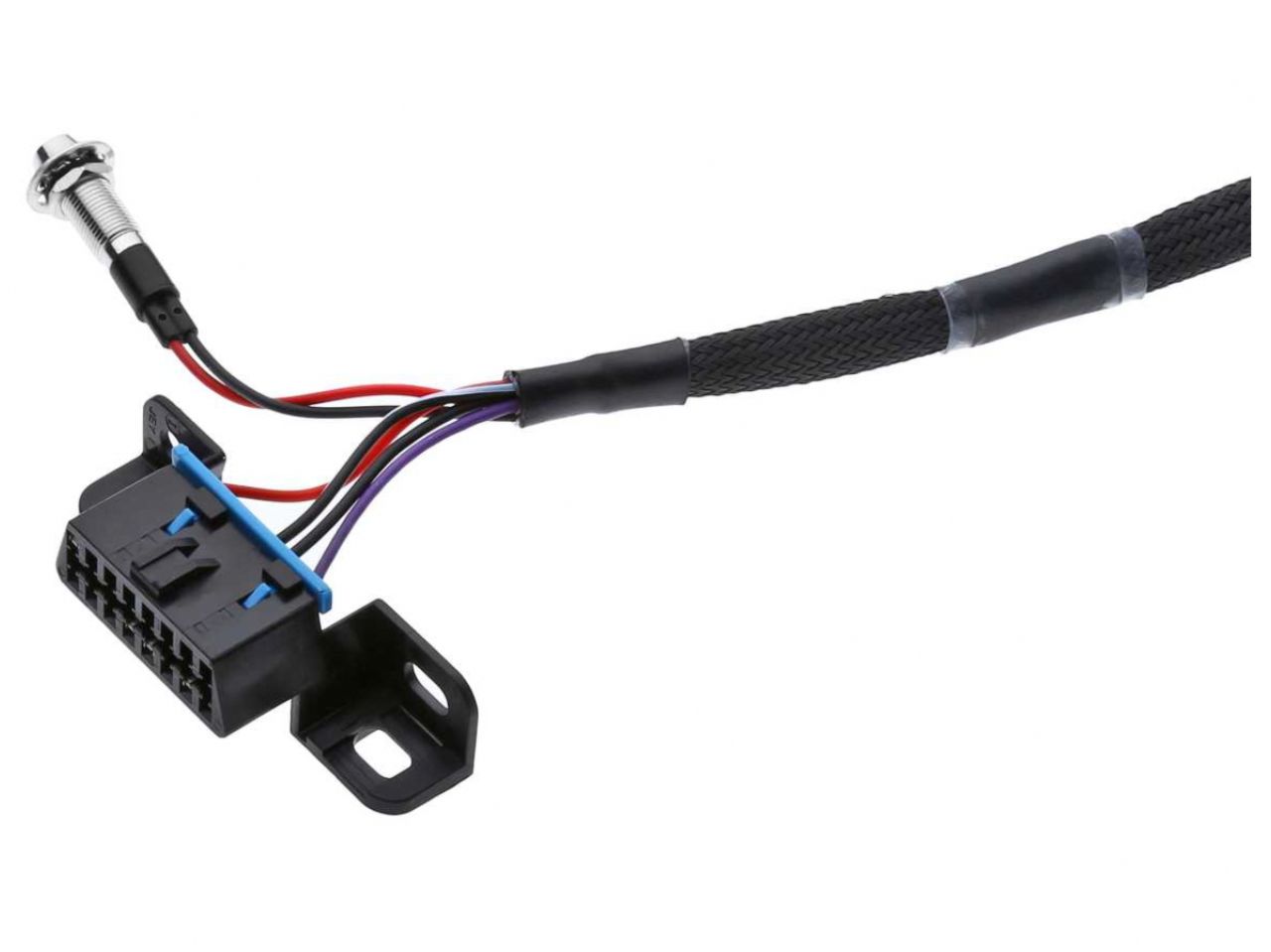

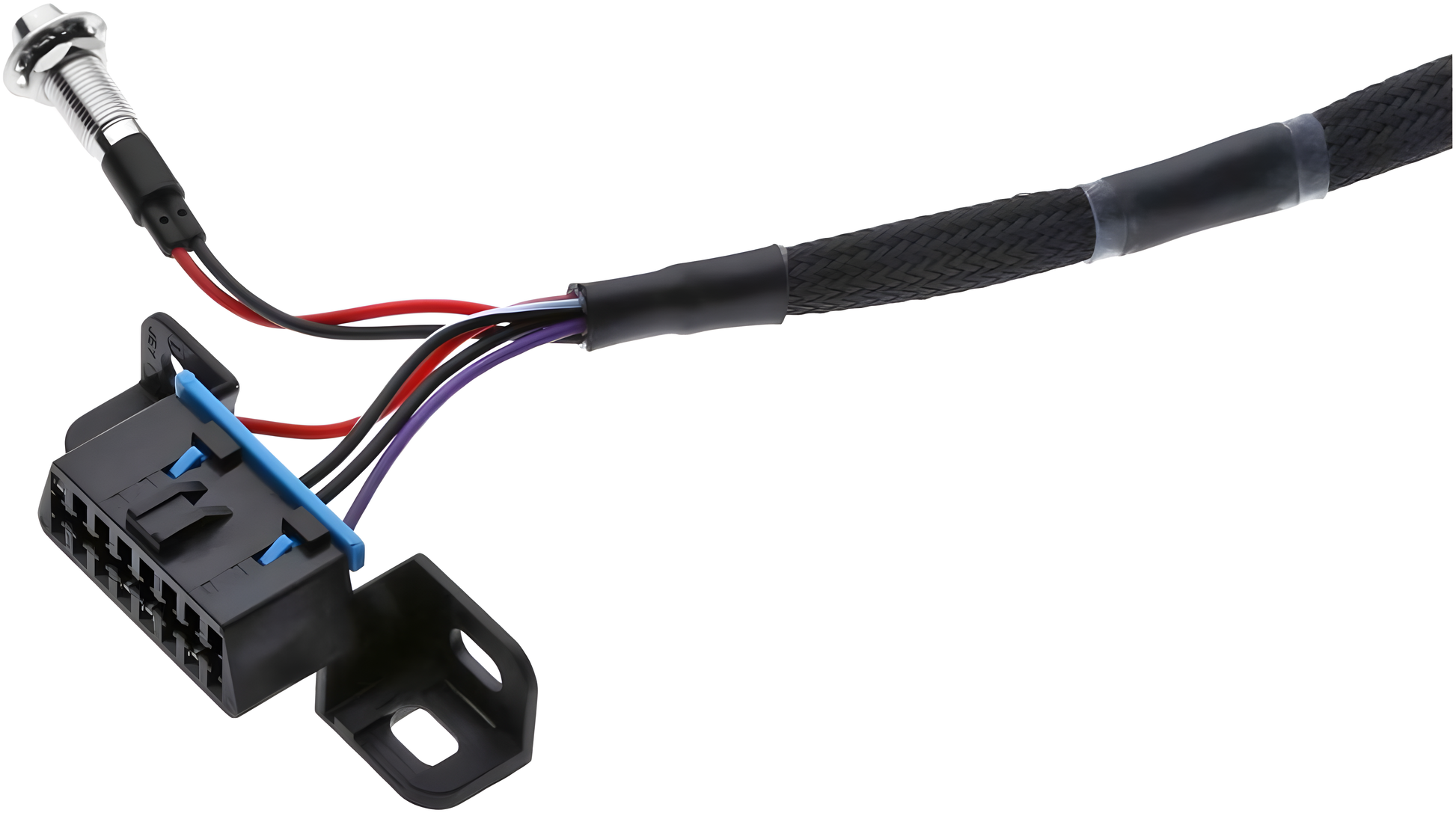

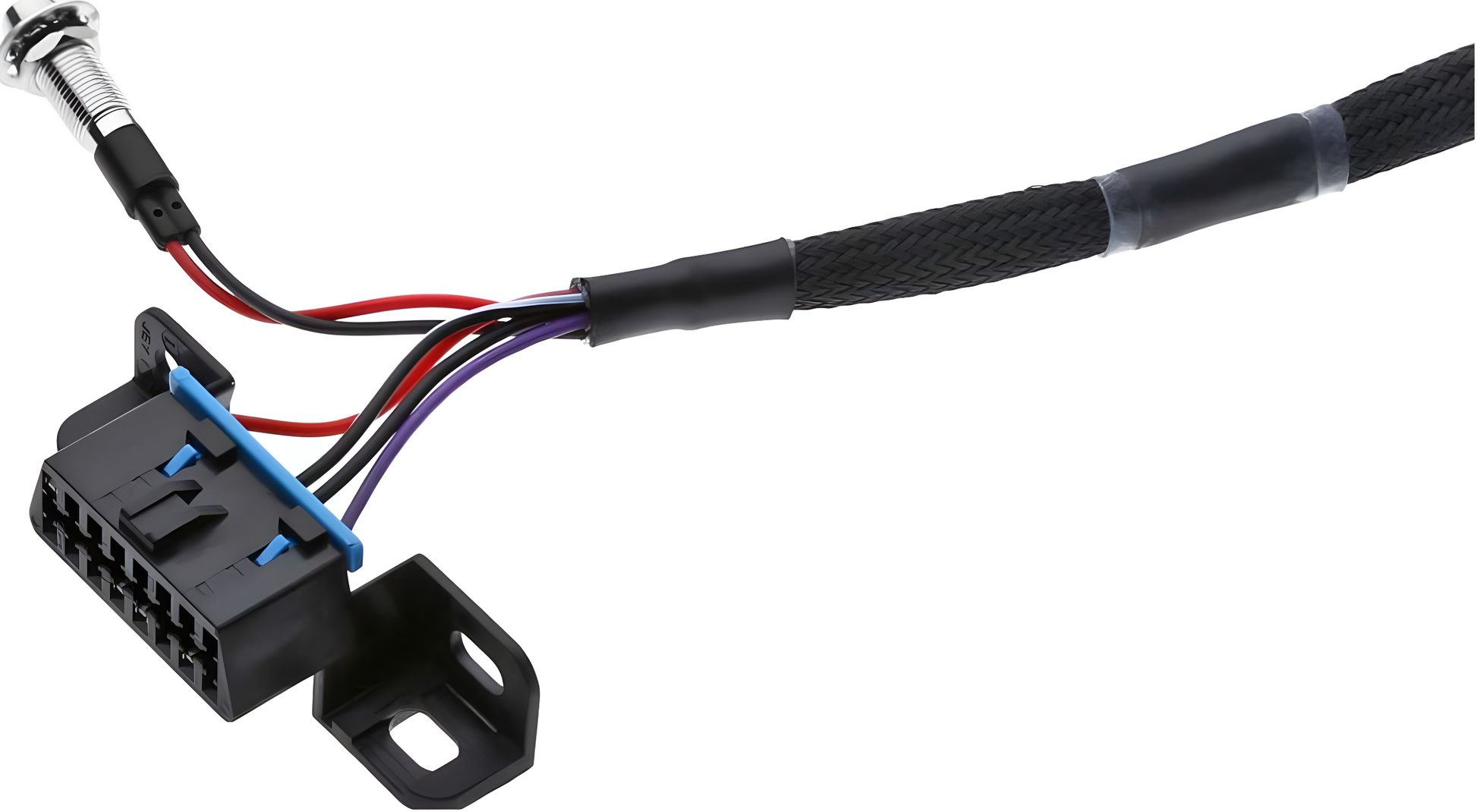

- OBD2 Communication connector
- Printable install instructions with pictures
- Turn Key ENGINE START Guarantee
- Tech support for our customers 7 days a week
