Wilwood Hub-Solid Rotor, GM "G" Body, 5x4.50/4.75 *Discontinued
Wilwood Hub-Solid Rotor, GM "G" Body, 5x4.50/4.75 *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 7 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyHub - Solid Rotor Offset

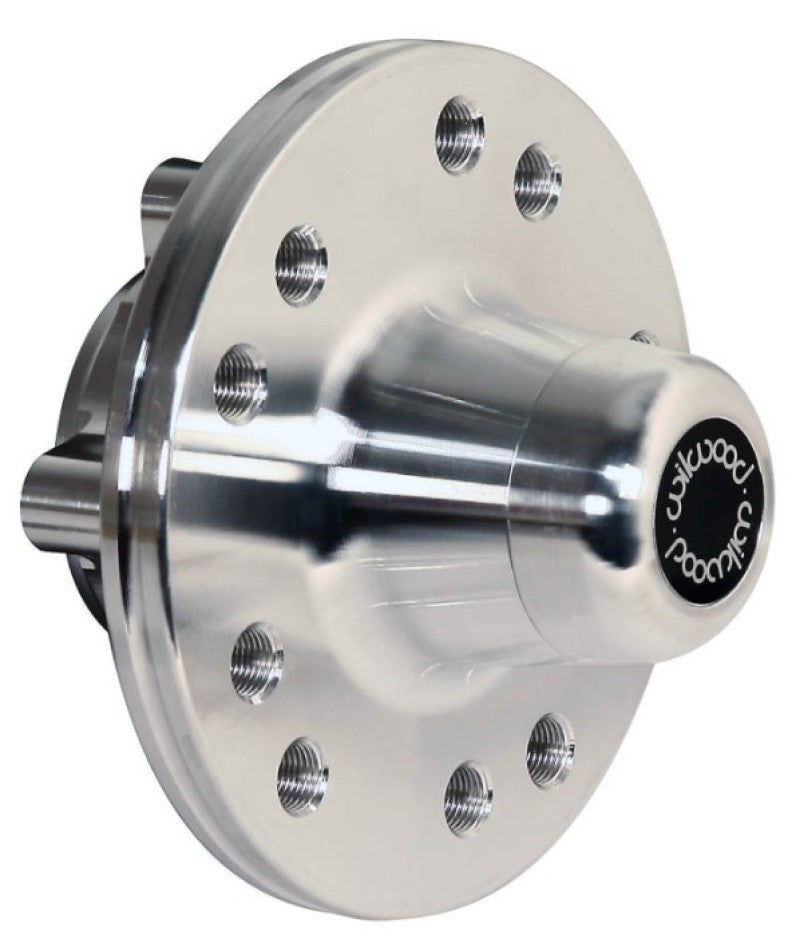

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with solid (.25" to 35" width) rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.
Specifications
| Material & Finish | |
|---|---|
| Material: | Aluminum |
| Finish: | Bare |
| Weight (lbs): | 3.2 |
| Rotor Compatibility | |
| Rotor Mount Bolt Circle (in): | 5 x 3.88 |
| Rotor Offset Type: | Solid |
| Rotor Offset Dimension (in): | 0.38 |
| Mount Type & Dimensions | |
|---|---|
| Mount Type: | Direct / Adapter |
| Adapter Bolt Circle(s) 6-Bolt Type: | 6 x 6.25 |
| 8-Bolt Type: | 8 x 7.00 |
| Hub Bolt Circles | |
|---|---|
| Bolt Circle 1 (in): | 5 x 4.50 |
| Bolt Circle 2 (in): | 5 x 4.75 |
| Hub Stud Diameters | |
| Stud Dia 1 (in): | 1/2-20 |
| Stud Dia 2 (in): | 1/2-20 |
| Hub Dimensions (in) | |||
|---|---|---|---|
| Dim A: | 1.85 | Dim N: | 2.06 |
| Dim D: | 2.495 | Dim P: | 3.21 |
| Dim H: | 1.38 | Dim Q: | 0.38 |
| Dim M: | 3.15 | ||
