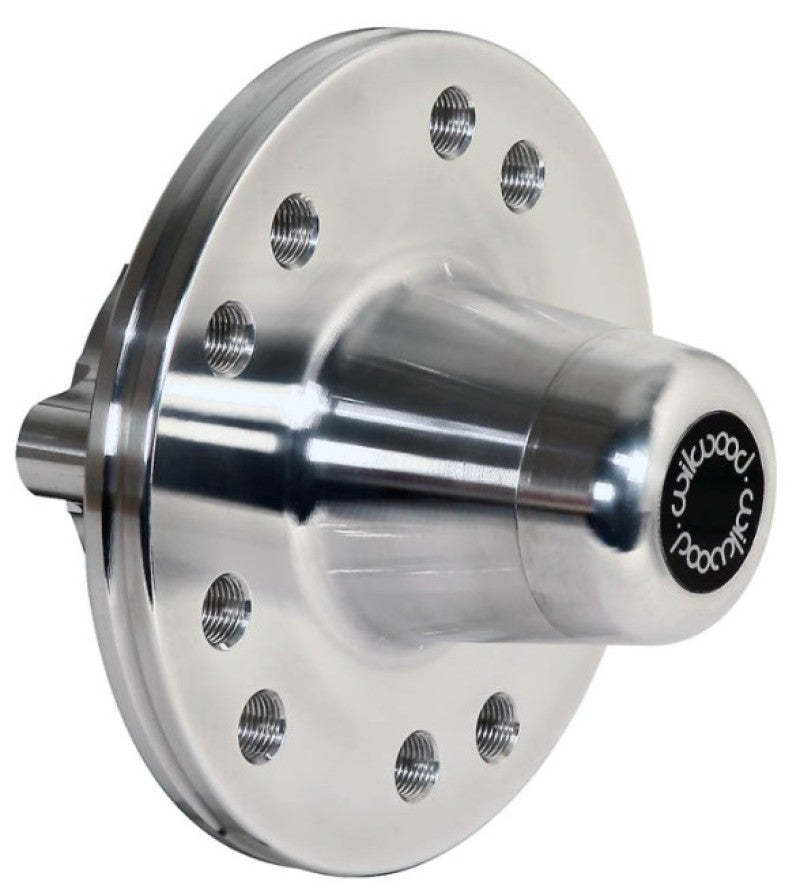

Wilwood Hub-Vented Rotor, Early Ford, 5x4.50/4.75

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with vented .81" width rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.

Material & Finish
Material: Aluminum
Finish: Bare
Weight (lbs): 3.5
Rotor Mount Bolt Circle (in): 5 x 3.88
Rotor Offset Type: Vented
Rotor Offset Dimension (in): 0.81

Mount Type & Dimensions
Mount Type: Adapter
Adapter Bolt Circle(s) 6-Bolt Type: 6 x 6.25
8-Bolt Type: 8 x 7.00

Hub Bolt Circles
Bolt Circle 1 (in): 5 x 4.50
Bolt Circle 2 (in): 5 x 4.75
Hub Stud Diameters
Stud Dia 1 (in): 1/2-20
Stud Dia 2 (in): 1/2-20
Stud Dia 3 (in)
