Wilwood Hub-Solid Rotor,Pinto/Must II,5x4.50/4.75

Hub - Solid Rotor Offset

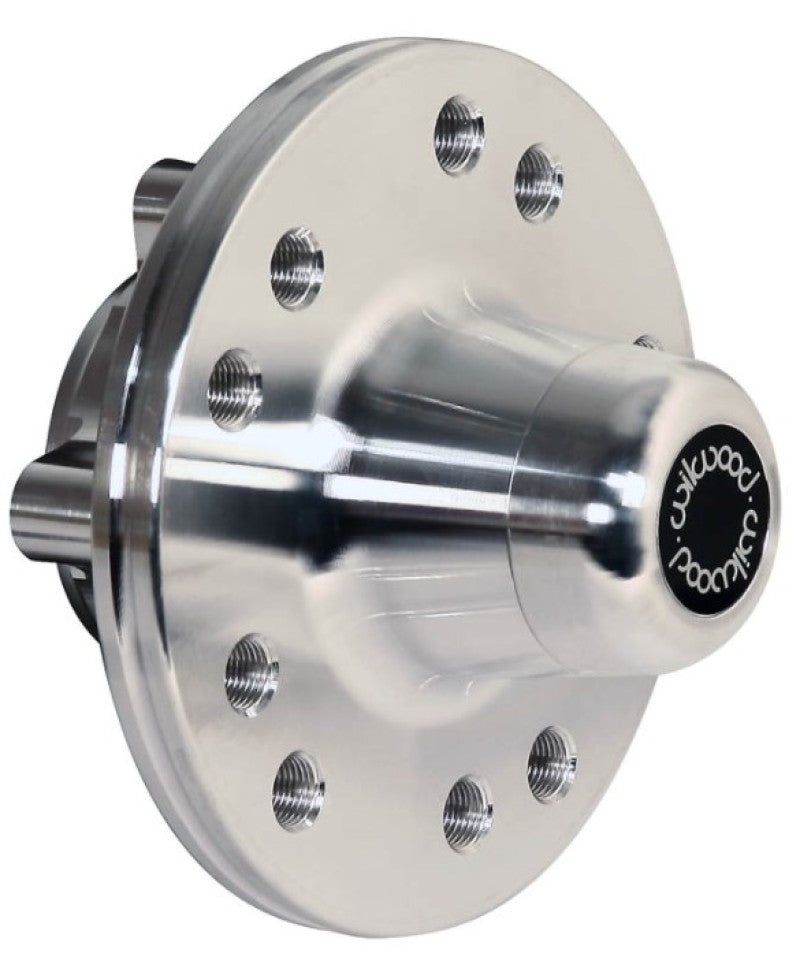

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with solid (.25” to 35” width) rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75” wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.

Material & Finish

Material: Aluminum

Finish: Bare

Weight (lbs): 3.2

UPC Number

UPC: 89545069105

Rotor Compatibility

Rotor Mount Bolt Circle (in): 5 x 3.88

Rotor Offset Type: Solid

Rotor Offset Dimension (in) : 0.38

Mount Type & Dimensions

Mount Type: Direct / Adapter

Adapter Bolt Circle(s) 6-Bolt Type: 6 x 6.25

8-Bolt Type: 8 x 7.00

Hub Bolt Circles

Bolt Circle 1 (in) : 5 x 4.50

Bolt Circle 2 (in) : 5 x 4.75

Hub Stud Diameters

Stud Dia. 1 (in): 1/2-20

Stud Dia. 2 (in): 1/2-20

Vehicle Applications:

Street Rods Medium Duty
Street Performance
Domestic Medium Duty
Road Race Medium Duty
Drag Racing Heavy Duty
Off Road Medium Duty
Industrial Heavy Duty

Hub Dimensions:

Dim A: 1.85"
Dim D: 2.495"
Dim H: 1.38"
Dim M: 3.15"
Dim N: 2.06"
Dim P: 3.21"
Dim Q: 0.38"
