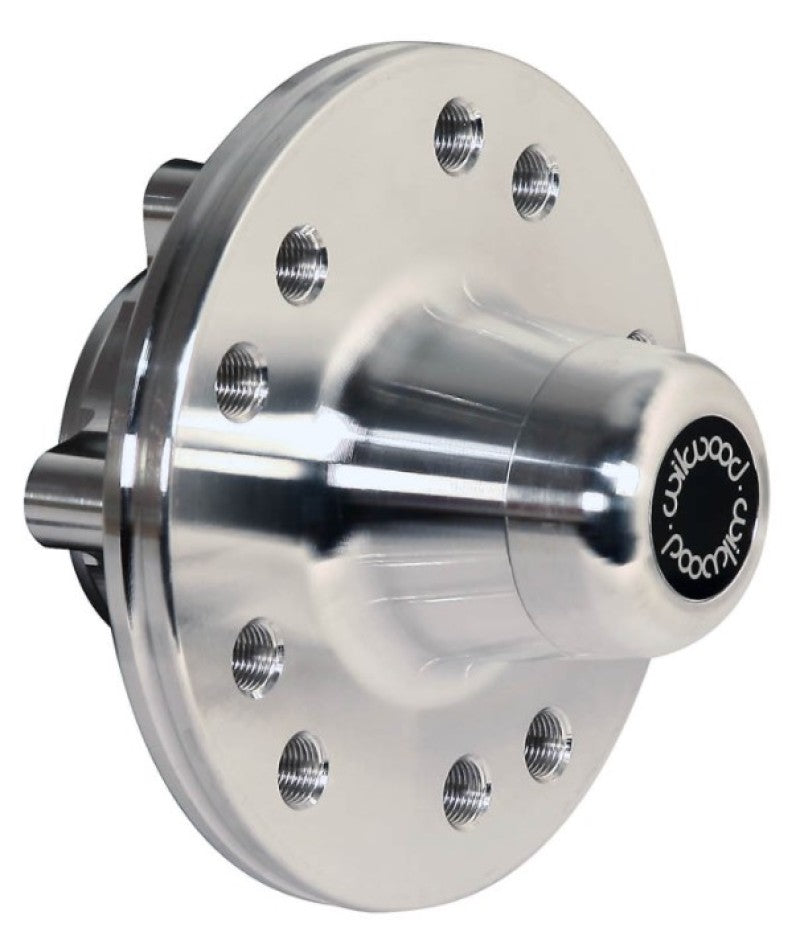

Wilwood Hub-Solid Rotor,Chevy,5x4.50/4.75 *Discontinued

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with solid (.25” to 35” width) rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75” wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.

Material & Finish
Material: Aluminum
Finish: Bare
Weight (lbs): 3.3

UPC Number
UPC 889545069082

Rotor Compatibility
Rotor Mount Bolt Circle (in): 5 x 3.88
Rotor Offset Type Solid
Rotor Offset Dimension (in): 0.38

Mount Type & Dimensions
Mount Type: Direct / Adapter
Adapter Bolt Circle(s) 6-Bolt Type: 6 x 6.25
8-Bolt Type: 8 x 7.00

Hub Bolt Circles
Bolt Circle 1 (in): 5 x 4.50
Bolt Circle 2 (in): 5 x 4.75
Bolt Circle 3 (in):

Hub Stud Diameters
Stud Dia 1 (in): 1/2-20
Stud Dia 2 (in): 1/2-20
Stud Dia 3 (in) :
