Wilwood Hub-Vented Rotor, Chevy, 5x4.50/4.75 *Discontinued
Wilwood Hub-Vented Rotor, Chevy, 5x4.50/4.75 *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
117 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyHub - Vented Rotor Offset

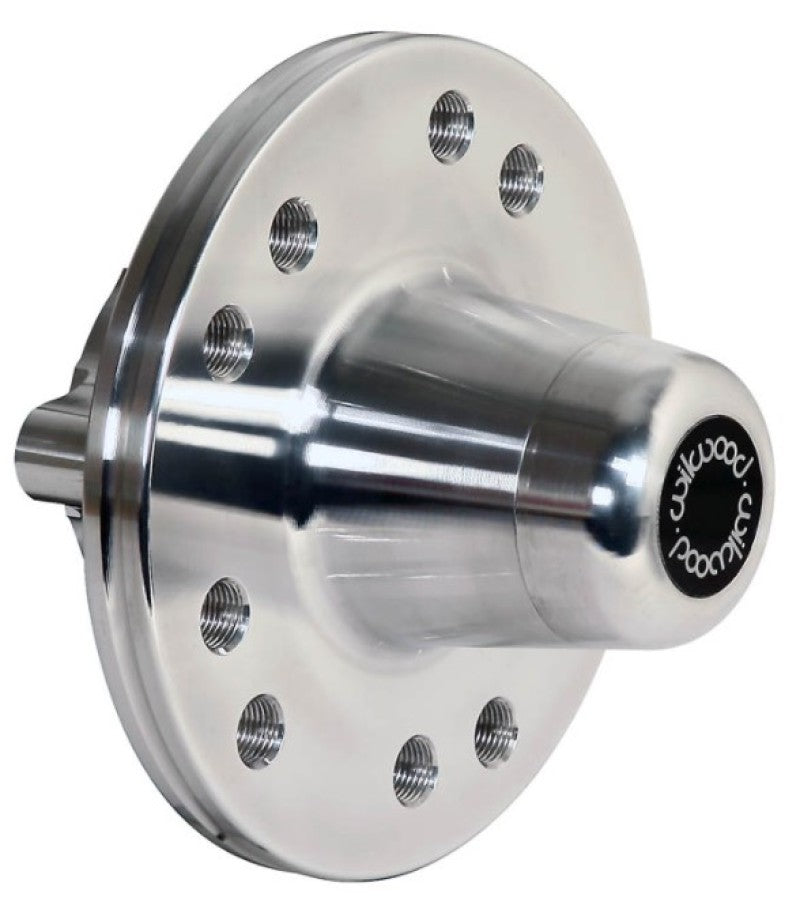

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with vented .81" width rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.
Specifications
| Material & Finish | |
|---|---|
| Material: | Aluminum |
| Finish: | Bare |
| Weight (lbs): | 3.3 |
| Rotor Compatibility | |
| Rotor Mount Bolt Circle (in): | 5 x 3.88 |
| Rotor Offset Type: | Vented |
| Rotor Offset Dimension (in): | 0.81 |
| Mount Type & Dimensions | |
|---|---|
| Mount Type: | Adapter |
| Adapter Bolt Circle(s) 6-Bolt Type: | 6 x 6.25 |
| 8-Bolt Type: | 8 x 7.00 |
| Hub Bolt Circles | |
|---|---|
| Bolt Circle 1 (in): | 5 x 4.50 |
| Bolt Circle 2 (in): | 5 x 4.75 |
| Hub Stud Diameters | |
| Stud Dia 1 (in): | 1/2-20 |
| Stud Dia 2 (in): | 1/2-20 |
| Hub Dimensions (in) | |||
|---|---|---|---|
| Dim A: | 1.795 | Dim N: | 2.39 |
| Dim D: | 2.495 | Dim P: | 3.13 |
| Dim H: | 1.05 | Dim Q: | 0.38 |
| Dim M: | 3.15 | ||
