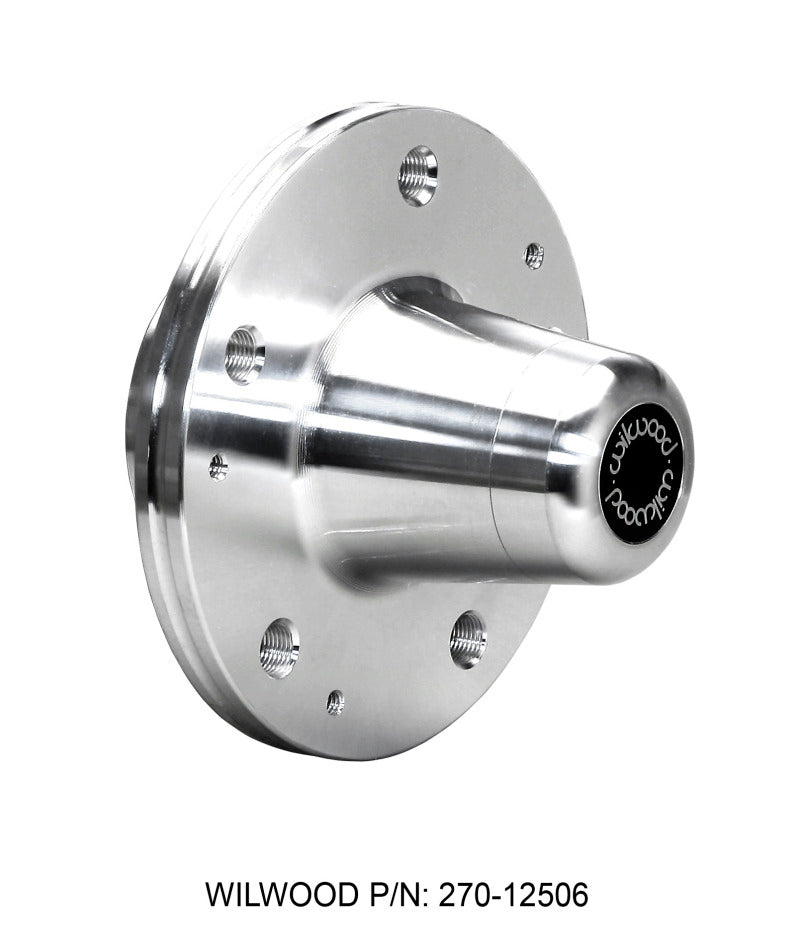

Hub - Hat Mount
Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats. This specific hub is single drilled on a 5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.
Specifications
| Material & Finish |
|---|
| Material: |
Aluminum |
| Finish: |
Bare |
| Weight (lbs): |
3.4 |
| Mount Type & Dimensions |
|---|
| Mount Type: |
Hat |
| Hub Bolt Circles |
|---|
| Bolt Circle 1 (in): |
5 x 4.75 |
| Hub Stud Diameters |
| Stud Dia 1 (in): |
1/2-20 |
| Hub Dimensions (in) |
|---|
| Dim A: |
|
Dim N: |
1.52 |
| Dim D: |
2.495 |
Dim P: |
3.12 |
| Dim H: |
1.946 |
Dim Q: |
0.25 |
| Dim M: |
3.15 |
