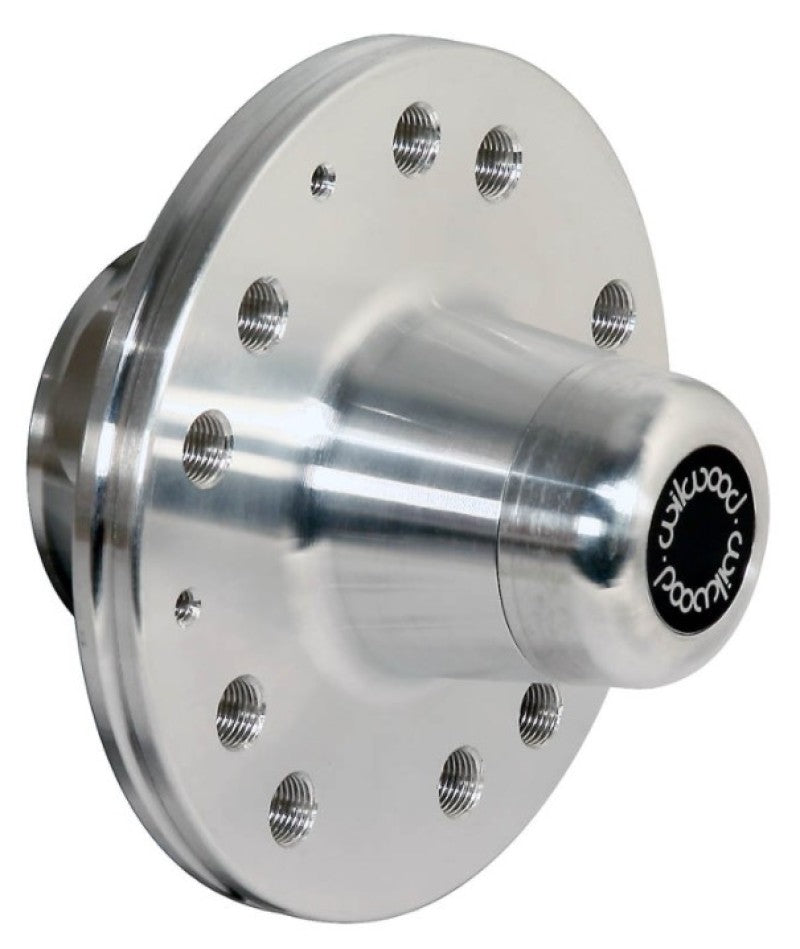

Wilwood Hub-Hat Mount,Vented Rotor,Camaro 70-78,5x4.50/4.75 *Discontinued

Hub - Hat Mount

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats, this specific hub is double drilled on a 5 x 4.50" / 5 x 4.75" wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.

Specifications

Material: Aluminum

Finish: Bare

Weight (lbs): 3.4

Mount Type: Hat

Bolt Circle 1 (in): 5 x 4.50

Bolt Circle 2 (in): 5 x 4.75

Stud Dia 1 (in): 1/2-20

Stud Dia 2 (in): 1/2-20

Dim N: 1.760

Dim D: 2.495

Dim P: 2.860

Dim H: 1.680

Dim Q: 0.100

Dim M: 3.150
